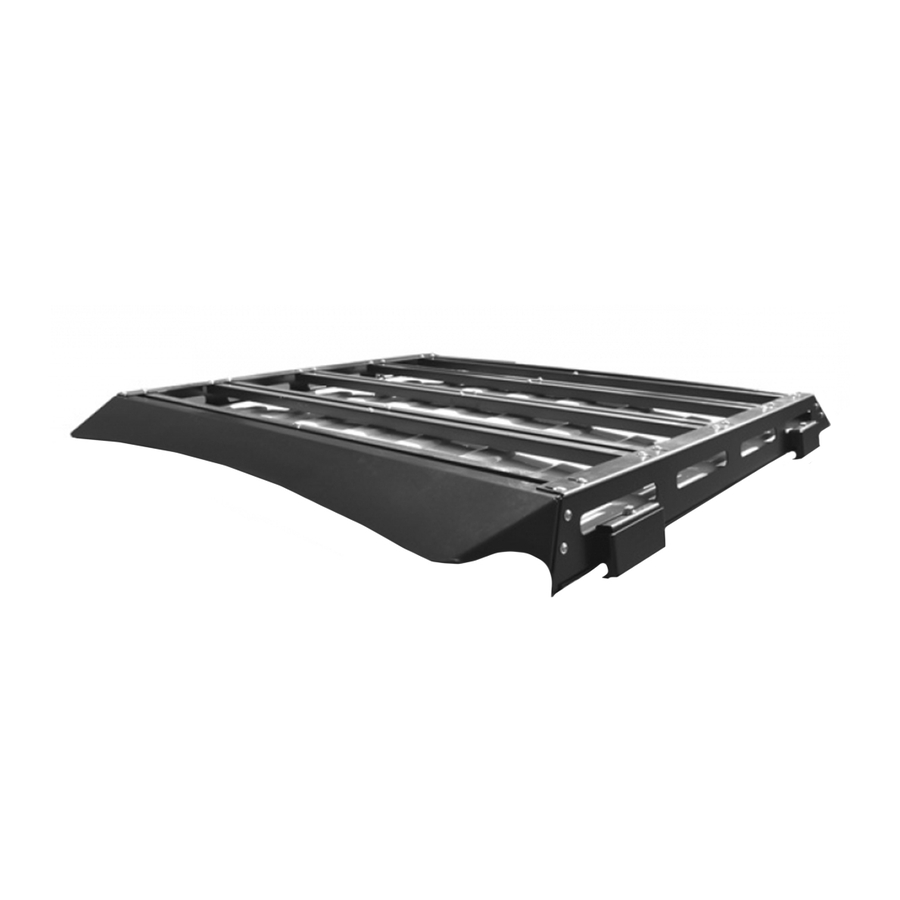

EVO-3038/3038B JL Unlimited Trail Rack
READ BEFORE INSTALLATION:
This rack has a distributed dynamic load rating of 70kg / 154lbs. Applying a bead of RTV Silicone in
drip rail before inserting rack rails is advised for higher loads/speeds. It is advised to not carry items
at high speeds that can create lift (upward force to due to wind) such as but not limited to kayaks and
surfboards etc.
Advertisement
Related Manuals for EVO Manufacturing EVO-3038
Summary of Contents for EVO Manufacturing EVO-3038

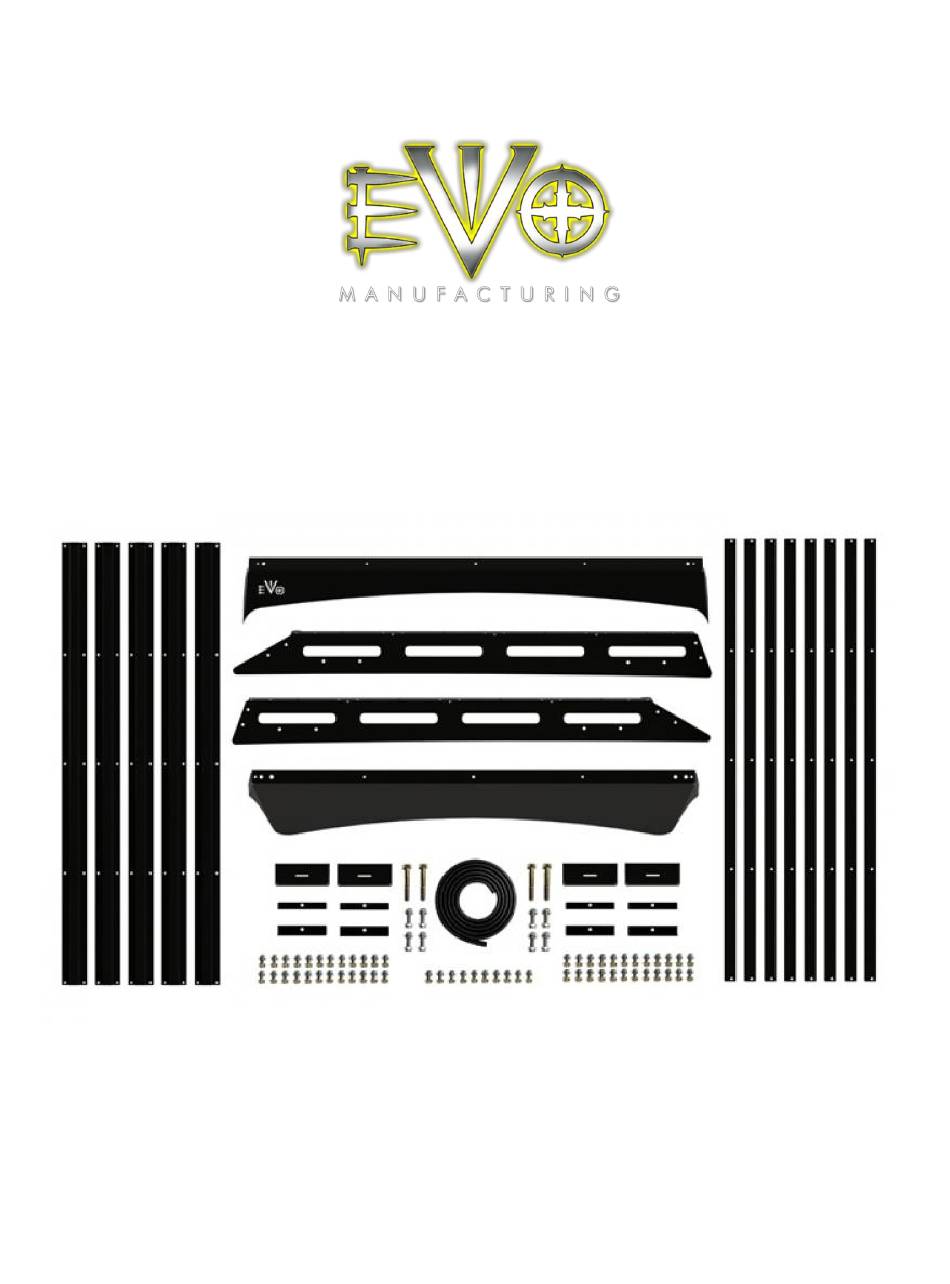

- Page 1 EVO Manufacturing EVO-3038/3038B JL Unlimited Trail Rack READ BEFORE INSTALLATION: This rack has a distributed dynamic load rating of 70kg / 154lbs. Applying a bead of RTV Silicone in drip rail before inserting rack rails is advised for higher loads/speeds. It is advised to not carry items at high speeds that can create lift (upward force to due to wind) such as but not limited to kayaks and surfboards etc.
- Page 2 1. On a flat level surface. Begin by assembling the 3 inner slat assemblies. Each will consist of 2 “L” Slat pieces and 1 “T” slat pieces. Using supplied ¼” bolt, washer and flange nuts, assemble 3 sets of inner slat assemblies by installing 6 bolts on the 6 inner holes of each. The end 2 holes on each end of each slat assembly should remain without bolts at this time.
- Page 3 3. On a flat surface. Loosely assemble the perimeter sections of the rack. This consists of the Driver side plate, Passenger side plate, Front plate and Rear plate. Using the supplied ¼” bolts, washer and flange nut loosely install 2 sets at each corner. 4.
- Page 4 5. Using supplied 5/16” bolt, washer, flange nut. Install upper bolt plate and lower bolt plate as shown. Install bolt from inside toward the outside. Tighten bolts. Do this at all 4 ends.
- Page 5 6. With rack loosely assembled and upside down. Flip over if needed. Install/press on edge trim on driver side plate edge end to end. Trim and use remainder to repeat on passenger side plate. 7. This may require 2 or more people. Flip rack with top up. Lift over jeep hard top and set into place on into the drip rail.
- Page 6 10. Tighten all loose bolts.
- Page 8 Recommended Torque Grade 2 Grade 5 Grade 8 18-8 S/S Bronze Brass Size Coarse Fine Coarse Fine Coarse Fine Coarse Fine Coarse Fine Coarse Fine 19.8 18.4 16.2 #10* 22.8 31.7 21.2 29.3 18.6 25.9 5/16 11.8 10.3 10.9 7/16 9/16 1†...
