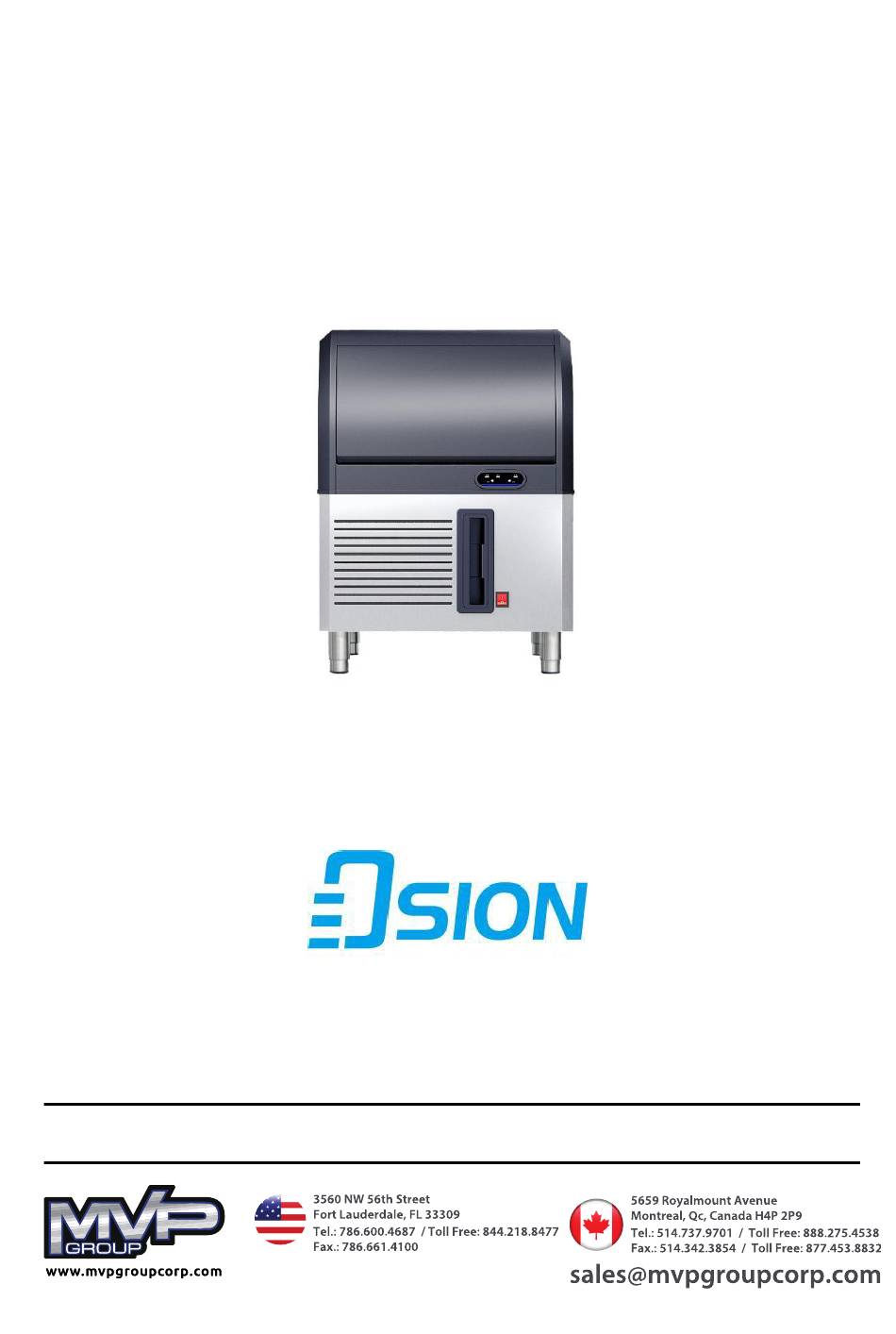

- Page 1 OWNER’S MANUAL Ice maker BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Osion has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Model Number: OCU-130 /200...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Appliance Safety ..................Important Safeguides ................Help Us Help You ..................Assy Parts View ..................Important Safety Instructions ..............Installation Instructions ................Electrical Connection ................. Installation of Your Icemaker ..............Leveling the Icemaker ................Water Supply ..................... Operating Your Icemaker ................ -
Page 3: Appliance Safety
APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual for your icemaker. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. -
Page 4: Important Safeguides
IMPORTANT SAFEGUIDES Before the icemaker is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the icemaker, follow basic precaution, including the following: •... - Page 5 Read this guide carefully. It is intended to help you operate and maintain your new Icemaker properly. Keep it handy to answer your questions. If you don't understand something or you need more assistance, please contact the dealer, or authorized service company. Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.
-
Page 6: Assy Parts View
ASSY PARTS VIEW Sliding Access Door Ice Storage Compartment Air Intake Vent Leveling Legs (4) Control Panel Condenser Air Filter Assembly Power ON / OFF Button (Located at the rear) Cabinet Body Power Cord Water Drain Outlet Connections... -
Page 7: Important Safety Instructions
Exhaust Vents IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your icemaker, follow these WARNING basic precautions: This unit is for Indoor Use Only - SAVE THESE INSTRUCTIONS - − Read all instructions before using the icemaker. −... -
Page 8: Electrical Connection
EXCESSIVE WEIGHT HAZARD USE TWO OR MORE PEOPLE TO MOVE AND INSTALL THE ICEMAKER FAILURE TO DO SO CAN RESULT IN BACK OR OTHER INJURY Electrical Connection WARNING Improper connection of the equipment-grounding can result in the risk of electrical shock. If the power cord of the range or icemaker is damaged, have it replaced by an authorized Osion Products service center. -
Page 9: Installation Of Your Icemaker
If the icemaker is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / icemakers you use. The surge protector that you select must have a surge block high enough to protect the icemaker it is connected to. -
Page 10: Leveling The Icemaker
temperature ranges as described above may affect product performance. Leveling the ice maker It is important for the icemaker to be leveled in order to work properly. It can be raised or lowered by rotating the plastic sheaths around each of the four feet on the bottom of the machine. -
Page 11: Water Supply
Water Supply The water supply should be ready at the point of installation. The water supply pressure should be a minimum of 15 psig with a static pressure not more than 80 psig. (A wall outlet directly behind the ice machine will make installation easier.) IMPORTANT: 1. -
Page 12: Operating Your Icemaker
OPERATING YOUR ICEMAKER Description of LEDs and buttons: 1. Ice Bin Full LED: Bin full indicator light When it is lit, the ice storage bin is full of ice or there is something blocking the bin-full probe. The unit will stop working. When ice cubes are removed from the ice storage bin, freeing the bin-full probe, the LED will turn off and then the unit will restart and return to the ice making mode. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE Preparing the ice maker for long storage If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to drain the water system. 1. Shut off the water supply at the main water source. 2. -
Page 14: Exterior Cleaning
Exterior cleaning The door and cabinet may be cleaned with a mild detergent and warm water solution such as 1 oz. of dishwashing liquid mixed with 2 gallons of warm water. Do not use solvent-based or abrasive cleaners. Use a soft sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. -
Page 15: Condenser Filter Cleaning
NOTE: THE BACK SIDE OF THE ICE MAKING MOULD MUST BE CLEANED BY A PROFESSIONAL. Sanitizing the Ice-Making System 1. Turn off power to the ice maker. 2. Remove all ice cubes from the storage bin. 3. Prepare a sanitizing solution made of 1 ounce of household bleach and 2 gallons of hot water 95ºF (35ºC) to115ºF (46 ºC). - Page 16 TROUBLESHOOTING Before Calling for Service If the unit appears to be malfunctioning, read through the OPERATION section of this manual first. If the problem persists, check the Troubleshooting Guide on the following pages. Some of the problems mentioned in the Guide can be solved easily without a service call. Problem Possible Cause Probable Correction...
-
Page 17: Wiring Diagram
Cut off the electricity and leave the ice maker The room temperature is out of The ice maker stops disconnected until the temperature returns to the stated range. suddenly while within the stated range. making ice. The ice storage bin is full of ice. Remove some ice cubes;...
