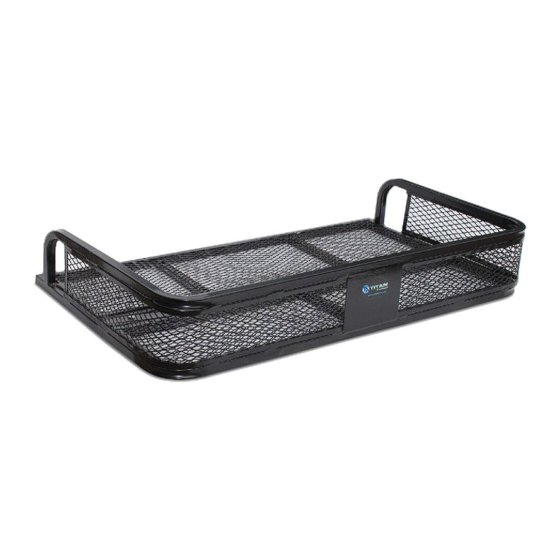

- Page 1 ATV REAR CARGO BASKET ARFR2030 332030 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW (Recommeded Mounting) DESCRIPTION FRONT BASKET ¼” X ¾” BOLTS ¼” FLAT WASHERS MOUNTING BRACKETS NOTE: Hardware May Be Metric – Additional Hardware should be purchased for different mounting WEIGHT CAPACITY: 100 LB.
- Page 3 REAR BASKET MOUNTING INSTRUCTIONS (Recommeded Mounting) 1. If you are mounting the basket on a metal rack with a rear bar, as shown, remove the filler clamp and hardware prior to mounting the basket on your ATV rack. 2. Position the basket on top of your ATV rack. Center the basket. 3.
- Page 4 PARTS DIAGRAM / EXPLODED VIEW (Optional Mounting) DESCRIPTION ¼” Bolts ¼” FLAT WASHERS ¼” LOCK NUTS MOUNTING BRACKETS NOTE: Hardware May Be Metric – Additional Hardware should be purchased for different mounting*...
- Page 5 REAR BASKET MOUNTING INSTRUCTIONS (Optional Mounting) 1. Position the basket so it is centered on the rear rack of the ATV. 2. Using (2) Mounting Brackets, (2) 1/8” Bolts, (2) Lock nuts, and (4) 1/8” Flat washers, secure the basket to ATV rack as shown. Assure the bracket on the top of the basket is positioned over the square tubing of the basket and the lower bracket is positioned under the tubing of the ATB rack.
- Page 6 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 7 NEED HELP? CONTACT US FIRST. 1-800-605-7555 info@titanramps.com www.titanramps.com © 2021 Titan Brands...
