Titan Ramps DDB2010 Operator's Manual

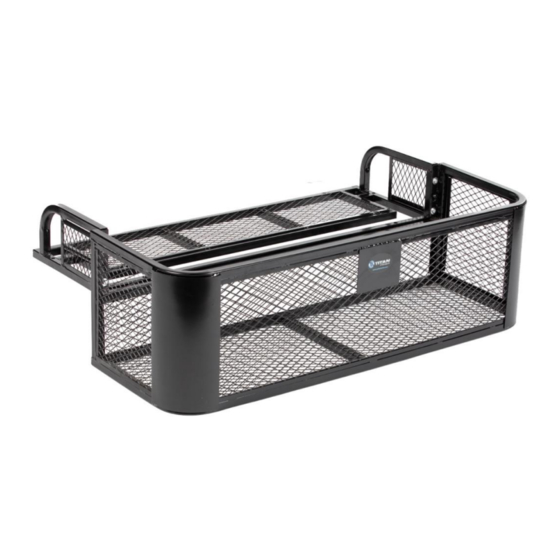

Atv rear drop basket

ATV REAR DROP BASKET

DDB2010

332010

Operator's Manual

Read the Operator's Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

Table of Contents

Need help?

Do you have a question about the DDB2010 and is the answer not in the manual?

Page 1 ATV REAR DROP BASKET DDB2010 332010 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
Page 2 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION BASKET RACK MOUNT DROP BASKET RACK FLAT WASHER, ½” OD ¼-20X1 ½ BOLT ¼-20 LOCK NUT TUBE PLUGS (ALREADY INSTALLED) MOUNTING PLATE – 11.75” MOUNTING PLATE – 5.39” MOUNTING PLATE – 3.00” (10) 5/16 FLAT WASHER (11) 5/16- 18X2 BOLT (12)
Page 3 ASSEMBLY INSTRUCTIONS 1. Unpack all basket parts and identify them. 2. Position the basket rack mount so it is centered on the rear rack of the ATV. NOTE: Depending on the type and size of your ATV rack, the extension may have to be removed before the basket can be installed.
Page 4 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
