Summary of Contents for Titan Ramps CC500

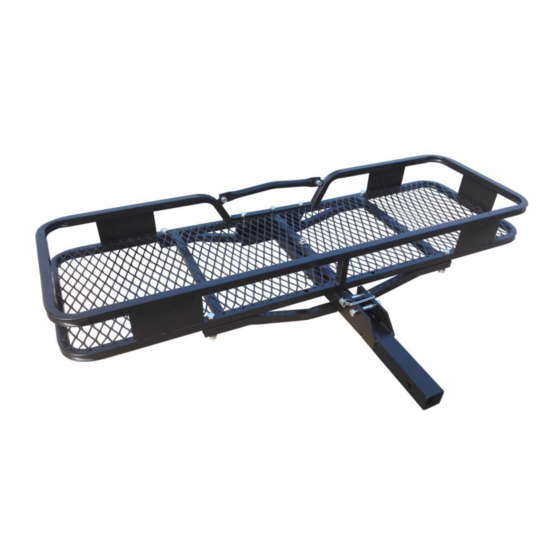

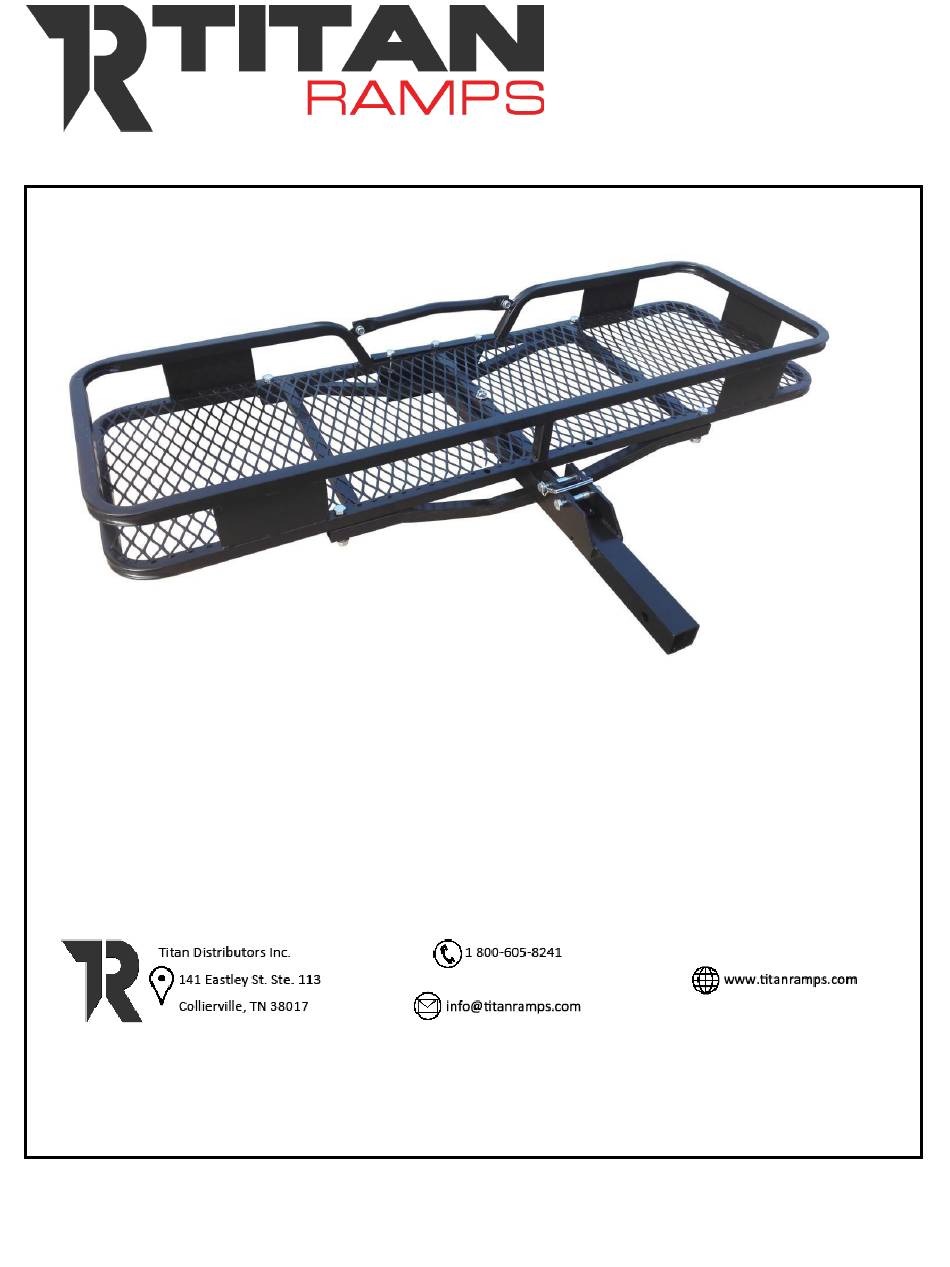

- Page 1 Cargo Carrier Owner’s Manual MPN: CC500 SKU: 332205 UPC : 049008261631...
- Page 2 General Comments: Congratulations on the purchase of your new TITAN product! This product was carefully designed and manufactured to give you many years of dependable service. Only minor maintenance (such as cleaning and lubricating) is required to keep it in top working condition. Be sure to observe all maintenance procedures and safety precautions in this manual and on any safety decals located on the product and on any equipment that you use in conjunction with this product.
-
Page 3: Part List
PART LIST PART DESCRIPTION PART DESCRIPTION BOLT M12X70 Ø 12 PIN & CLIP Ø 12 WASHER BASE FRAME M12 NUT HITCH HINGE BOLT M12X120 SHANK TUBE BOLT M12X90 SUPPORT BAR BOLT M12X45 FAIRING PLATE BOLT M12X80 BOLT M12X20... - Page 4 ATTACH THE FAIRING PLATE Arrange the fairing plate (part #13) in place underneath the basket. Insert bolt M12x45 (part #6) through the base frame (part #9) and fairing plate (part #13). Secure with washer (part # 2) and nut (part #3) as illustrated in diagram for all three holes, and then tighten.
- Page 5 ATTACH BASE FRAME TO SUPPORT BARS 4. Align the shank tube (part #11) and support bars (part # 12) with the matching holes on the base frame. 5. Insert bolt M12x90 (part #5) through the center of the base frame and shank. Secure on the underside with washer (part #2) and nut (part #3).
- Page 6 ASSEMBLING THE HITCH HINGE 10. Attach the cross bar (not numbered) to the base frame just above the fairing plate by using bolt M12x20 (part # 14), washer (part # 2) and nut (part #3) on both sides and then tighten. 11.
- Page 7 NEED HELP? CONTACT US FIRST 1(800)-605-8241 team@titan.fitness / www.titan.fitness Business hours: Monday - Friday • 8am - 5pm Central...
