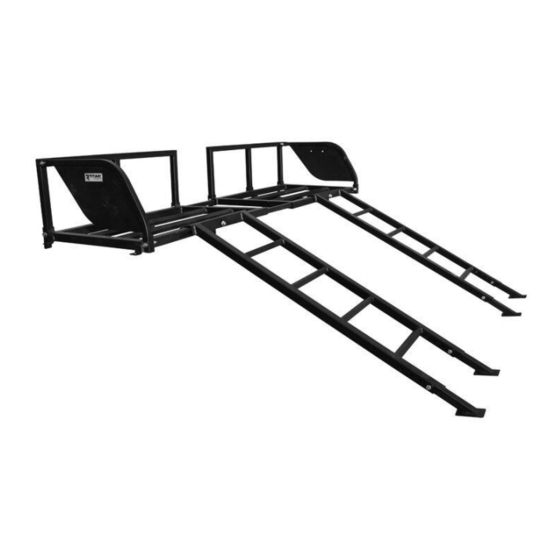

- Page 1 RAISED ATV UTV TRUCK BED RACK ATVTBRACK 332022 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
- Page 2 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION TIRE REST FRAME-LEFT (12) TIRE REST FRAME-RIGHT TIRE REST FRAME-RIGHT (13) HEADACHE RACK-LEFT HEADACHE RACK-LEFT (14) HEADACHE RACK- RIGHT HEADACHE RACK- RIGHT (15) SIDE FENCE SIDE FENCE (16) CONNECTING BRACE-FRONT CONNECTING BRACE-FRONT (17) CONNECTING BRACE-REAR CONNECTING BRACE-REAR (18)
-
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION: The maximum weight capacity is the 925 LB. Do not exceed the weight capacity. ASSEMBLY INSTRUCTIONS STEP 1 – ASSEMBLE LEFT AND RIGHT TIRE REST PLATFORMS 1. Insert top tube of Side Fence (5) into the top sleeve of Headache Rack-Left (3). Fasten these parts with Hex Flange Bolt M8x45 (11). - Page 4 ASSEMBLY INSTRUCTIONS STEP 2 – INSTALLING THE WHOLE TIRE REST PLATFORM ONTO YOUR TRUCK BED 1. Sit the Tire Rest Platform-Left (A) and Tire Rest Platform-Right (B) on each side of the truck bed on top of the side wall and against the window of the cap. Insert Connecting Tube-Rear (7) and Connecting Tube-Front (6) into the Tire Rest Frame-Left (1) and Tire Rest Frame-Right (2).
- Page 5 Rest Platform Assembly by applying Hex Self Taping Screw ST6x40 (14) through the hole on each rear side of the truck bed. 4. Use hand drill to drill 1/4” holes through the Connecting Tube-Front (6) and Connecting Tube-Rear (7), and then fasten and the Connecting Tube-Front (6) and Connecting Tube-Rear (7) to the Tire Rest Platform Assembly by using Hex Flange Bolt M6x40 (15) and Hex Flange Lock Nut M6 (16).
- Page 6 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non- economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,...
- Page 7 NEED HELP? CONTACT US FIRST. 1-800-605-7555 info@titanramps.com www.titanramps.com © 2021 Titan Brands...
