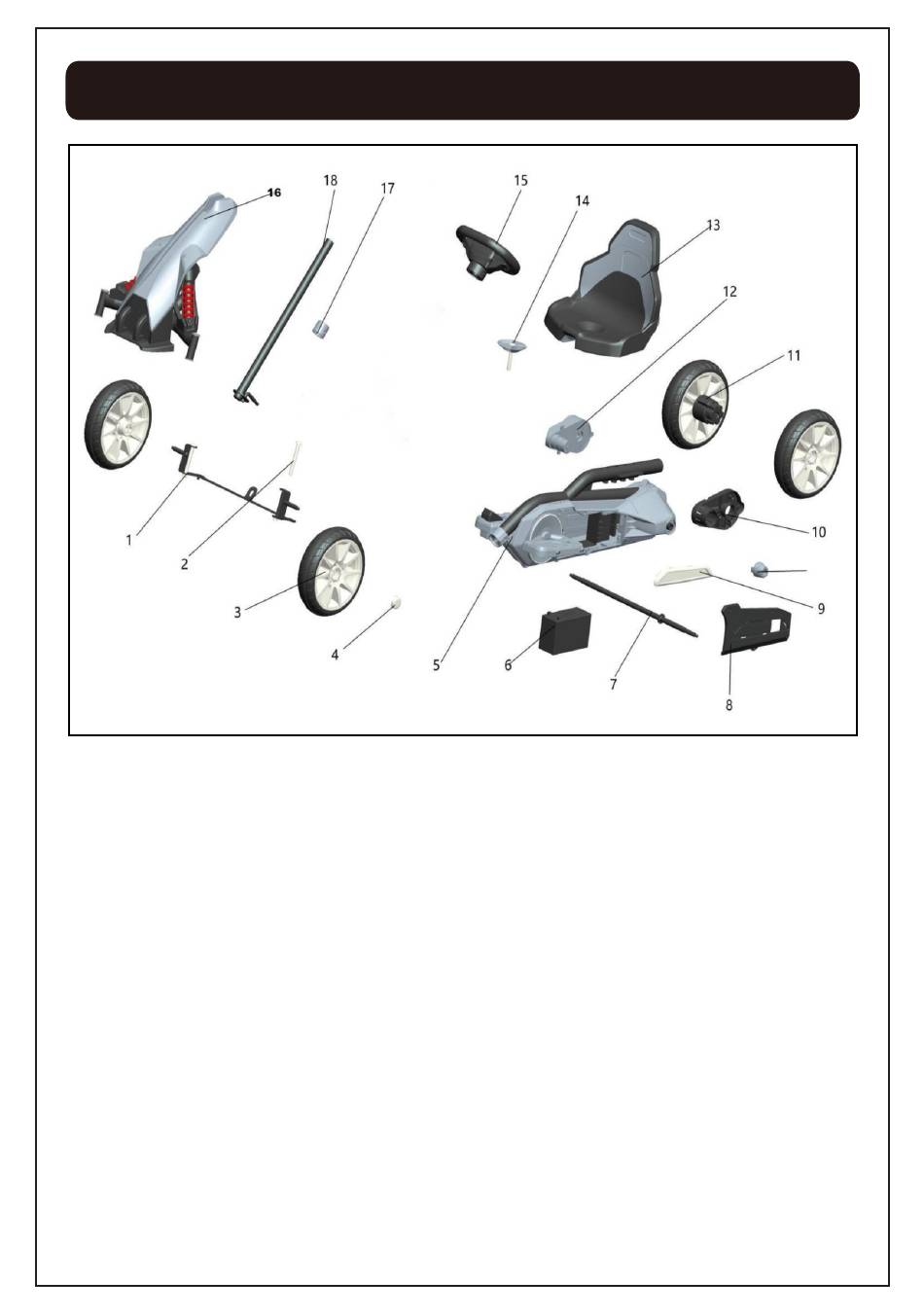

Parts Diagram - HOMCOM 370-288V70 Owner's Manual

Note: Some parts shown are assembled to both sides of the vehicle.
No. Part
1.Steering axle assembly
2.Screw
3.Front wheels + Rear left wheel
4.Wheel cover
5.Main body
6.Battery
No. Part
13.Seat
14.Seat fixer
15.Steering wheel
16.Front assembly
17.Steering rod fixer
18. Steering rod

Parts diagram

Quantity No. Part
1 7.Rear axle
1 8.Battery cover (inner)
3 9.Battery protective cover(outer)
4 10.Gear box pallet
1 11.Rear right driving wheel
1 12.Gear box
Quantity
1
1
1
1
1
1
15
16
Quantity
1
1
1
1
1
1
