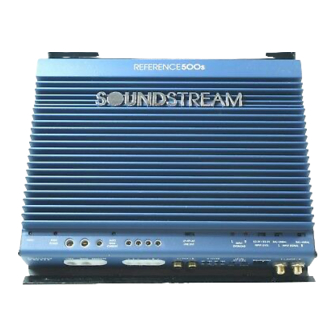

Soundstream Reference Series 1000S Installation Manual

Soundstream Reference Series 1000S Installation Manual

Soundstream reference series 1000s: user guide

Advertisement

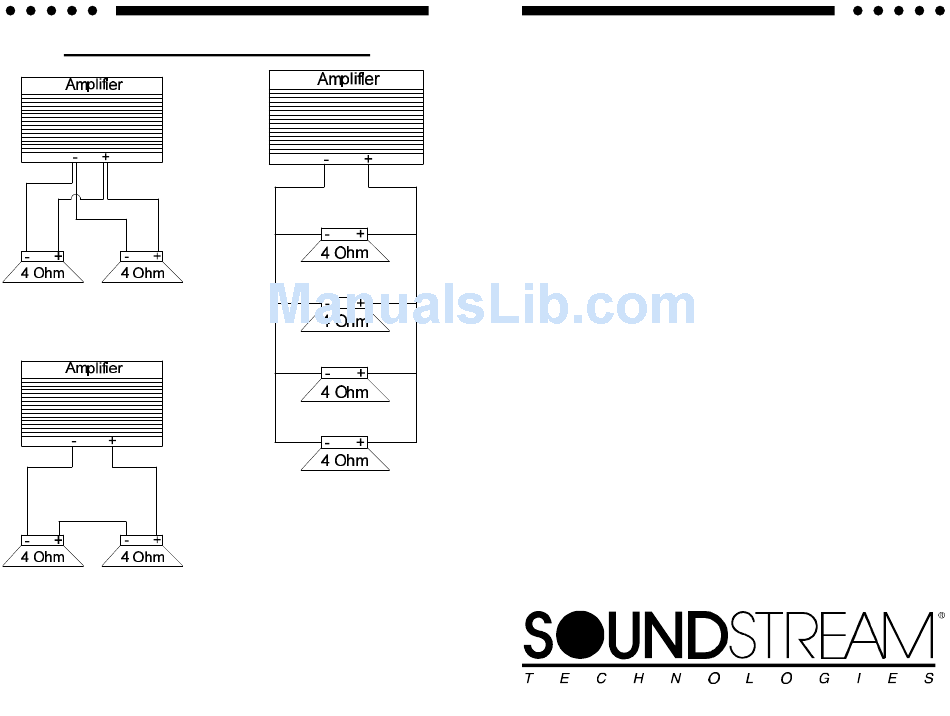

SERIES AND PARALLEL WIRING
REFERENCE
500s
700s
1000s
2-4 ohm drivers in parallel
= 2 ohms
Power Amplifiers
OWNERS MANUAL
4-4 ohm drivers in parallel
AND
=1 ohm
INSTALLATION GUIDE
2-4 ohm drivers in series
= 8 ohms
SOUNDSTREAM TECHNOLOGIES
120 Blue Ravine Road
Folsom
California 95630 USA
ph 916.351.1288
fax 916.351.0 414
rev C - 5.01.96
24
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reference Series 1000S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soundstream Reference Series 1000S

  • Page 1 Power Amplifiers OWNERS MANUAL 4-4 ohm drivers in parallel =1 ohm INSTALLATION GUIDE 2-4 ohm drivers in series = 8 ohms SOUNDSTREAM TECHNOLOGIES 120 Blue Ravine Road Folsom California 95630 USA ph 916.351.1288 fax 916.351.0 414 rev C - 5.01.96...
  • Page 2: Specifications

    Soundstream amplifiers are the result of American craftsmanship and the highest quality control standards, and when properly installed, will provide you with many years of listening pleasure. Should your amplifier ever need service or replacement due to theft, please record the following information, which will help protect your investment.
  • Page 3: Troubleshooting

    This will not effect the performance of the amplifier. SERVICE Your Soundstream REFERENCE amplifier is protected by a limited warranty. CAUSE Design Features ... 4 - 5 Reference500s Diagram ... 6 - 7 Reference700s Diagram ...
  • Page 4: Level Setting

    4 gauge power/ground wire. Auto High Current™ - Soundstream’s newest exclusive circuit which automatically customizes your amplifier to its particular application— High Current, low impedance loads (multiple subwoofers, less than 2 ohms mono) or High Power, higher impedance loads (2 ohms mono and up).
  • Page 5: Installation And Mounting

    The 6-pin din plug carries (+) and (-) Signal information for Left and Right channels, audio ground, and ±15 Vdc to operate the Soundstream BLT Balanced Line Transmitter. AIRBASS™ Upgradable - This feature allows RF remote control level adjustment while the low pass filter on the amplifiers' internal crossover is being used.
  • Page 6: Wiring Diagram

    Use a high-quality cable that will be easy to install and has minimal signal loss to guarantee optimum performance. Soundstream’s DL1 and SL1 are ideal when using the Unbalanced RCA inputs. While using the Balanced DIN input, use the cable supplied with the BLT.
  • Page 7 15. Input Level - Independent Left and Right channel input level controls. 16. Balanced Signal Input Connector - 6-pin Balanced signal input connector for use with the Soundstream BLT Balanced Line Transmitter. 17. Inputs - Right and left channel RCA (Unbalanced ) inputs; only right channel input is used in "Mono"...
  • Page 8 The REFERENCE amplifiers have the ability to accept either a standard Unbalanced RCA signal inputs, or a Balanced "Pro Audio" inputs with the use of the Soundstream BLT Balanced Line Transmitter or some other balanced line audio source. Before installing your system, you should decide upon...
  • Page 9 16. Input Level - Independent Left and Right channel input level controls. 17. Balanced Signal Input Connector - 6-pin Balanced signal input connector for use with the Soundstream BLT Balanced Line Transmitter. 18. Inputs - Right and left channel RCA (Unbalanced ) inputs; only right channel input is used in "Mono"...
  • Page 10 Listen for a reduction of bass response. Now, rotate frequency control slightly backwards. This serves the purpose of removing the “subsonic” bass energy. Soundstream’s LSE.Q contains the same type of circuit with the added benefit of infinite adjustability. Our “Q” and “Hz” control can provide virtually any combination of boost and cut to suit your designs.
  • Page 11 18. Input Level - Independent Left and Right channel input level controls. 19. Balanced Signal Input Connector - 6-pin Balanced signal input connector for use with the Soundstream BLT Balanced Line Transmitter. 20. Inputs - Right and left channel RCA (Unbalanced ) inputs; only right channel input is used in "Mono"...
  • Page 12: Crossover Adjustments

    (called current limiting), or waste huge amounts of power (i.e., low efficiency). All of which reduce the "realworld" power the amplifier can produce in the car. Soundstream's Auto High Current™ power supply allows the REFERENCE amplifiers to be one of two types of amps: either producing maximum power at higher impedances (perfect for satellites) or at lower impedances (usually with multiple subwoofers).

This manual is also suitable for:

Reference 500sReference 700s
