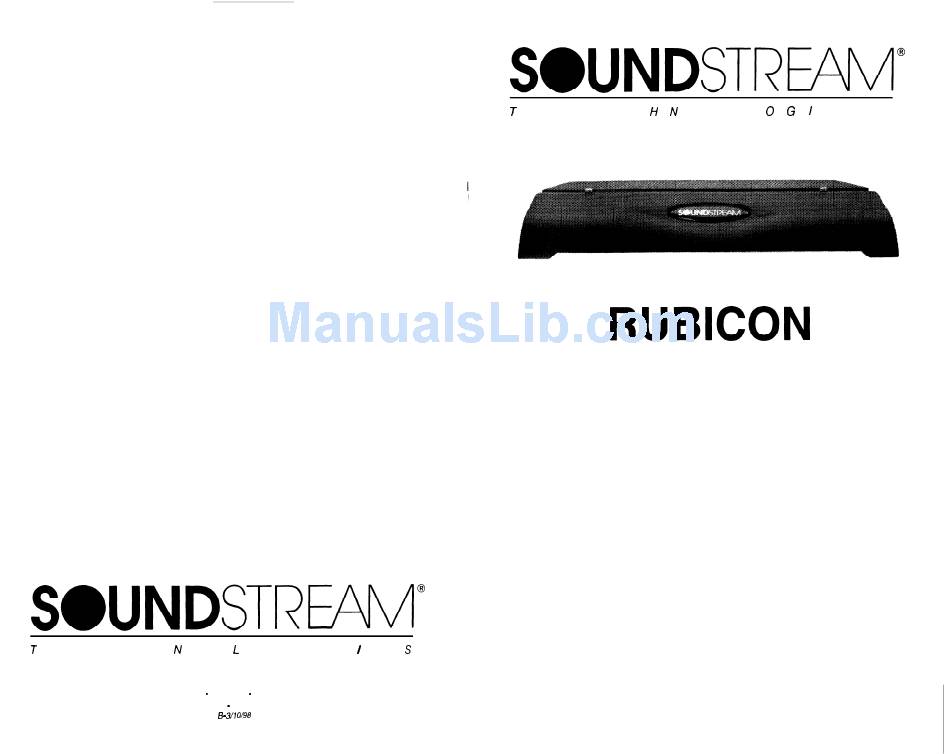

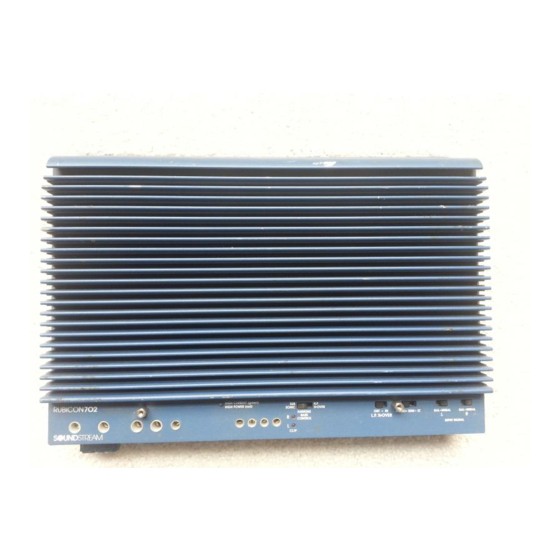

- Page 1 SOUNDSTREAM@ SOUNDSTREAM TECHNOLOGIES 120 Blue Ravine Road Folsom California 95630 USA ph 916.351.1288 fax 916.351.0414 rev 8 - 30 O/98 SOUNDSTRE/4lVI@ RUBICON 5 0 2 1002 Power Amplifiers Owner’s Manual Installation Guide...
- Page 2 Conaratulations! now own the Soundstream RUBICON amplifier, the product of compromising design and engineering philosophy. Your Soundstream RUBICON amplifier will outperform any other amplifier in the world. To Maximize the performance of your system, we recommend that you thor- oughly acquaint yourself with its capabilites and features. Please retain manual and your sales receipt for future reference.
- Page 3 RUBITM(_Rapid-Be _Branched -Impulse) This new proprietary power sup- ply topology eliminates “power sags” during low frequency reproduction by rapidly increasing the duty cycle, stabilizing the power supply and allowing it to deliver the power required when reproducing low frequen- cies. Also, greater reserve gate power is stored for low voltage condi- tions that occur during extreme conditions.
-
Page 4: Key To Callouts
Front View KEY TO CALLOUTS Power LED - Indicates amplifier power, either in High Power or Current. Clip Indicators - Indicates the signal output level is too high and the output stage of the amplifier is clipping. Subsonic, Hawkins Bass Control, H.P. Xover Switch - filter frequency range. - Page 5 The RUBICON amplifiers incorporate an on-board staggered elec- tronic crossover, with RCA outputs to drive an external amplifier. No external electronic crossover is necessary. The high and low pass portions of the crossover can be set independently of one another. To engage the High Pass filter, set the left top of the amplifier to “H.P.
- Page 6 FIG. 1 BASS CONTROL The frequency control (Hz) adjusts the starting point of the subsonic fil- ter. On the RUBICON502,702 and 1002, the high pass filter has two fre- quency ranges. When the bass con- trol switch is set to “SUB SONIC”, lOFrequency...
-
Page 7: Installation Step
STEREO SUMM INSTALLATION STEP 2 The RUBICON502, 702 and 1002 amplifiers have the ability to accept either a standard Unbalanced RCA signal input, or a Balanced “Pro Audio” style input signals with the use of the Soundstream Balanced Line Transmitter or some other balanced line audio source. -
Page 8: Power And Ground
This may result in amplifier damage and will void the warranty1 RUB/CON Amplifier Fuse Values Amplifier Fuse RUBICON 502 (2) 30 automotive RUB/CON 702 60 amp Maxi-fuse 1 RUB/CON 1002 80 amp Maxi-fuse high quality, low- up to 20’ 4 gauge only 4 gauge only 4 gauge only... -
Page 9: Front Spoiler
INSTALLATION STEP 4 AMPLIFIER LOCATION The RUBICON amplifiers employ highly efficient circuitry, a custom-engineered heat sink, and a unique Chassisink construction to maintain lower operating temperatures. Additional cooling may be required if the amplifier is located in tightly confined area or when driving especially low impedance loads at extremely high levels. -
Page 10: Troubleshooting
TRIDENT PROTECTlON CIRCUITRY Your Rubicon amplifier is protected against both overheating and short circuits by means of main power fuses and the following circuits: Auto High Current power supply Sneaker Output Protection Ground Fault Differential Smart Power Supply Thermal Rollback & a Thermal Protection Circuit r NOTE: If you experience blown main power supply fuses, it is like@ that the amplifier is seeing a dead shorf, either in the speaker wire or in...
