Enlarged version

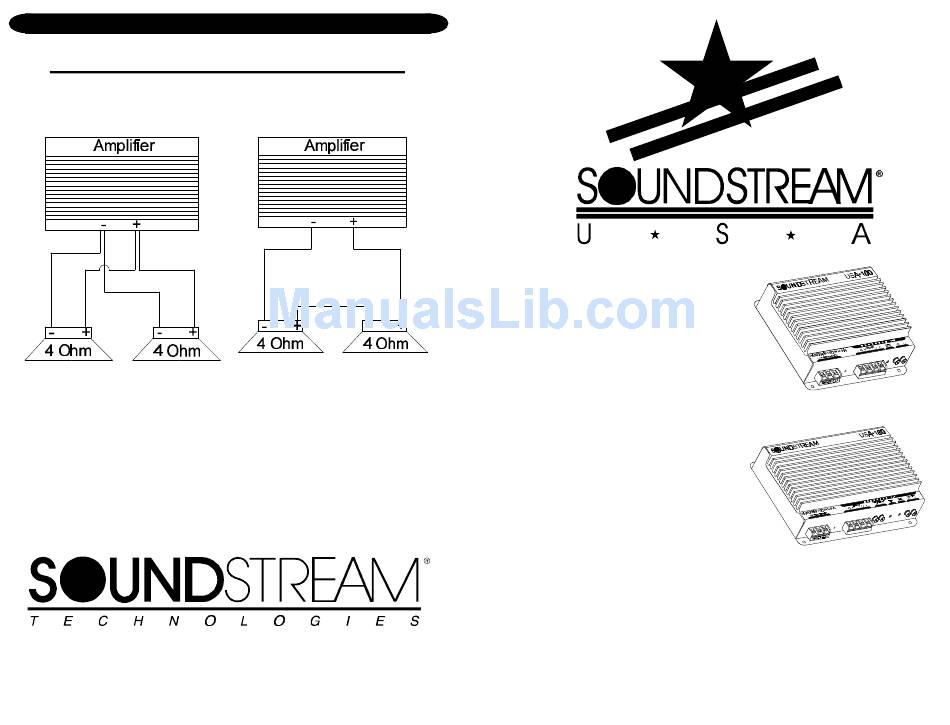

PARALLEL/SERIES WIRING DIAGRAMS
USA•100
two 4 ohm woofers
two 4 ohm woofers
&
in parallel = 2 ohms
in series = 8 ohms
USA•180
Power Amplifiers
OWNERS MANUAL AND
SOUNDSTREAM TECHNOLOGIES
INSTALLATION GUIDE
120 Blue Ravine Road
Folsom
California 95630 USA
ph 916.351.1288
fax 916.351.0414
ver. 1.17.96a
24
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USA-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Soundstream USA-100

Summary of Contents for Soundstream USA-100

  • Page 1 4 ohm woofers two 4 ohm woofers & in parallel = 2 ohms in series = 8 ohms USA•180 Power Amplifiers OWNERS MANUAL AND SOUNDSTREAM TECHNOLOGIES INSTALLATION GUIDE 120 Blue Ravine Road Folsom California 95630 USA ph 916.351.1288 fax 916.351.0414 ver. 1.17.96a...

  • Page 2: Specifications

    CONGRATULATIONS! You now own a Soundstream Amplifier, the result of a unique design and engineering philosophy. To maximize the performance of your system, we recommend that you thoroughly acquaint yourself with its capabilities and features. Please retain this manual and your sales and installation receipts for future reference.

  • Page 3: Table Of Contents

    PROTECTION CIRCUITRY Your USA amplifier is protected against both overheating and short circuits by means of the following circuits: Main power supply fuses. Speaker output circuit breakers. A fail-safe thermal protection circuit activating at 95°C. NOTE: If you experience blown main power supply fuses, DO NOT increase values beyond the original values! Doing so will void your warranty and may damage your amplifier.

  • Page 4: Usa•100 Diagram

    USA•180 USA•100...
  • Page 5 USA•180 System Configuration #2: Stereo inputs Stereo wiring driving one pair of satellite speakers Low pass RCA outputs to an external amplifier driving a subwoofer HINT: 12 dB/Oct 75 Hz low pass output from the USA•180 plus 12 dB/Oct 75 Hz low pass internal crossover on the USA•100 sums to 24 dB/Oct 75 Hz low pass filter! Key to Callouts...

  • Page 6: Usa•180 Diagram

    USA•180 USA•180...
  • Page 7 USA•180 System Configuration #1: Stereo inputs Bridged mono wiring driving one subwoofer Bass EQ engaged High pass RCA outputs to an external amplifier driving satellite speakers Key to Callouts +12V - Connected to fuse or circuit breaker, then battery’s positive post. Ground - Main ground connection.

  • Page 8: Features

    Mixed Mono Capable so you can simultaneously drive a stereo and mono load (satellites and subwoofer). 2 Ohm Drive Ability - Soundstream amplifiers are designed to drive loads down to 2 Ohms stereo and 4 Ohms bridged. Built-in Staggered Crossover - Built in 2-way electronic crossover is designed to send either high or low pass information (1-way low pass only on the USA•100) to the amplifier.

  • Page 9: Installation Step

    INSTALLATION STEP 1 SETTING THE CROSSOVER MODES The Soundstream USA•100 & 180 incorporate a defeatable electronic crossover for each pair of channels. With its crossover outputs, the USA•180 amplifier can drive a complete system without need of an outboard electronic crossover.

  • Page 10: Level Setting

    Green-Green NOTE: Even though the S/N ratio with low output sources is better with the Soundstream amplifiers than others, your best combination of output level Green-White and Signal to Noise ratio will be achieved when the input levels are set between 500 mV and 2.5 V...

  • Page 11: Installation And Mounting

    INSTALLATION STEP 2 SELECTING INPUT MODES On Soundstream amplifiers, a pair of channels may be bridged for mono operation. To do so, simply put the stereo switch into the “mono” position and follow the mono wiring (Right Positive goes to speaker’s positive; Left Negative goes to speaker negative).

  • Page 12: Wiring & Wiring Diagram

    SIGNAL CABLE Soundstream Power80 (8 ga.) To guarantee optimum performance, use a high-quality cable that will be easy to install and has minimal signal loss such as Soundstream’s DL1 or SL1. Soundstream Power80 SPEAKER CABLE (8 ga.) Use a high quality, flexible, multi-strand cable for best performance and...
