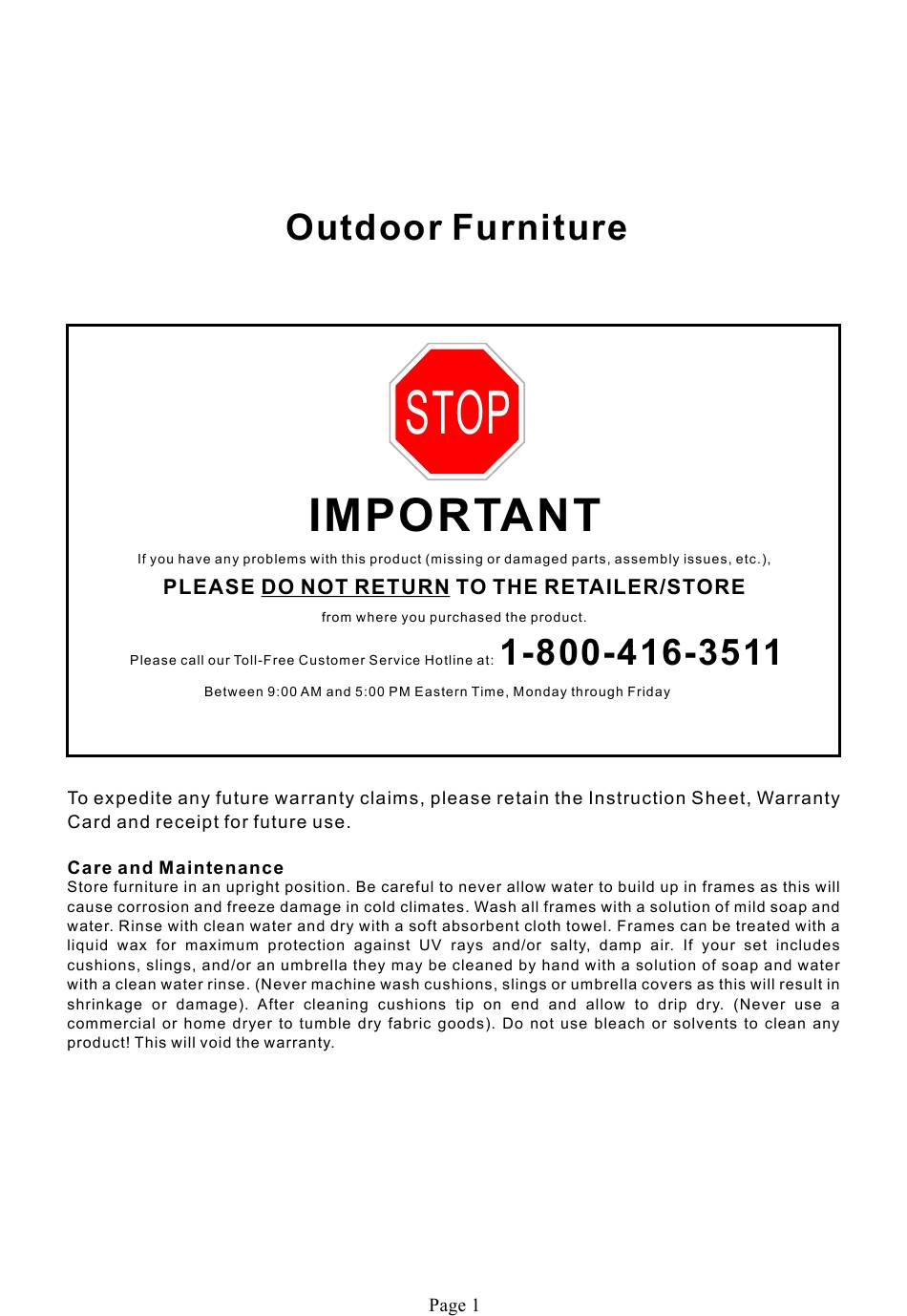

Summary of Contents for Hanover Orleans ORL4PCDFPSW2-BRY
- Page 6 ASSEMBLY INSTRUCTIONS Figure 1. Attach the seat frame to the back frame by using four 5/16"x40 mm bolts and washer as shown in Guide these bolts through the holes in the seat frame, into the fixed nuts already in place in the back frame. Do not over tighten Attach love seat arm by inserting two 5/16"x25...
- Page 7 PARTS IDENTIFICATION LIST * NOTE: PARTS SHOWN ON PARTS LIST ARE NOT TO SCALE ORDER PART # QTY PARTS LIST DESCRIPTION BACK FRAME SK0939 SK0940 SEAT FRAME LEFT ARM SK0941 SK0942 RIGHT ARM 5/16" X 25 MM BOLT HW0186 5/16" X 40 MM BOLT HW0275 Ø8.5 X 1.5 MM HW0005...
- Page 8 ASSEMBLY INSTRUCTIONS ARL00100 CSA Model 99000 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER WARNING: If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
-
Page 9: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP1245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR 65-FP-0181 HOSE ELECTRODE 65-FP-0128 ORIFICE ELBOW FP0310 IGNITION MODULE FP0006 PROPANE ZCF0021 ORIFICE “AAA” HW0705 BATTERY(1.5V) LAVA ROCK SET FP0002 FOOTCAP FC0559 1/4" X 15 MM BOLT HW0034 1/4"... - Page 10 FIREPIT TABLE BACK PANEL LEFT SIDE PANEL RIGHT SIDE PANEL DOOR PANEL MIDDLE SUPPORT LP SUPPORT BOTTOM/ TOP CONNECTOR...
-
Page 11: Installation
INSTALLATION 1.Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2. Attach the back panel to the side panels by using four 1/4"x40 mm bolts and washers as shown in Figure 2.Guide the bolts through the holes in back panel, into the pre-drilled holes in the side panels. - Page 12 5. Put the door onto the bottom connector, guide the pin in the bottom connector into the hole on the underside of the door. Then guide the pin on the top connector into the hole in the topside of the door, use a 1/4"x15 mm bolt and washer to attach this top connector to the right side panel as shown in Figure 5.
- Page 13 7. Attach the LP support the to door panel by using four 1/4"x15 mm bolts and washers as shown in Figure 7. Do not over tighten. Figure 7 8. Place gas tank onto the LP support as shown in Figure 8. Figure 8 9.
- Page 14 Figure 9a Figure 9 Figure 10 10. After making any necessary adjustments to the parts, use the hex bolt driver to tighten all bolts. Note: each bolt must be tightened a few revolutions at a time. Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with covers.
- Page 15 13. Remove the cardboard cover from the ignition well as shown in Figure 12. Remove any lava rock or fire ice on top of ignition well. Cardboard Cover Figure 12 14. Open the tank valve. Apply a solution of soapy water to the tank-regulator connection and to the valve-hose connection to check for leaks as shown in Figure 13.
-
Page 16: Lighting Instructions
LIGHTING INSTRUCTIONS Warning: If these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. 1. Make sure the control knob is in the "OFF" position. See Figure 15 Open the tank valve all the way. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to No Propane Gas at Burner “ON” and push control knob in. Make sure tank has propane gas. Check that AAA battery is installed with negative (-) end Burner won’t light first and has a charge.
