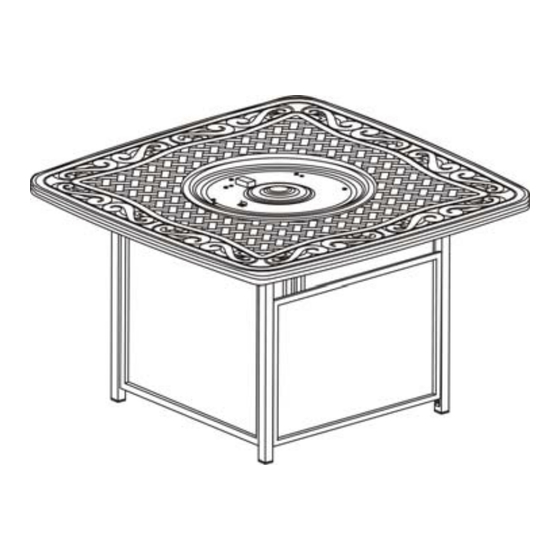

- Page 1 Hanover Outdoor Furniture IMPORTANT If you have any problems with this product (missing or damaged parts, assembly issues, etc.), PLEASE DO NOT RETURN TO THE RETAILER/STORE from where you purchased the product. 1‐800‐416‐3511 Please call our Toll‐Free Customer Service Hotline at: Between 9:00 AM and 5:00 PM Eastern Time, Monday through Friday www.hanover‐products.com Or visit our website at: To expedite any future warranty claims, please retain the Instruction Sheet, Warranty Card and receipt for future use. For additional on‐line support on assembly, troubleshooting and care & maintenance of your outdoor furniture, please visit our website at: www.hanover‐products.com. 6/1/2015 (a) ...
- Page 2 ASSEMBLY INSTRUCTIONS ARL00100 CSA Model 99000 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER WARNING: If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. -
Page 4: Specifications
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S. -
Page 5: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP1245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR 65-FP-0181 HOSE ELECTRODE 65-FP-0128 ORIFICE ELBOW FP0310 IGNITION MODULE FP0006 PROPANE ZCF0021 ORIFICE “AAA” HW0705 BATTERY(1.5V) LAVA ROCK SET FP0002 FOOTCAP FC0559 1/4" X 15 MM BOLT HW0034 1/4"... - Page 6 FIREPIT TABLE BACK PANEL LEFT SIDE PANEL RIGHT SIDE PANEL DOOR PANEL MIDDLE SUPPORT LP SUPPORT BOTTOM/ TOP CONNECTOR...
-
Page 7: Installation
INSTALLATION 1.Identify parts packed in carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2. Attach the back panel to the side panels by using four 1/4"x40 mm bolts and washers as shown in Figure 2.Guide the bolts through the holes in back panel, into the pre-drilled holes in the side panels. - Page 8 5. Put the door onto the bottom connector, guide the pin in the bottom connector into the hole on the underside of the door. Then guide the pin on the top connector into the hole in the topside of the door, use a 1/4"x15 mm bolt and washer to attach this top connector to the right side panel as shown in Figure 5.
- Page 9 7. Attach the LP support the to door panel by using four 1/4"x15 mm bolts and washers as shown in Figure 7. Do not over tighten. Figure 7 8. Place gas tank onto the LP support as shown in Figure 8. Figure 8 9.
- Page 10 Figure 9a Figure 9 Figure 10 10. After making any necessary adjustments to the parts, use the hex bolt driver to tighten all bolts. Note: each bolt must be tightened a few revolutions at a time. Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with covers.
- Page 11 13. Remove the cardboard cover from the ignition well as shown in Figure 12. Remove any lava rock or fire ice on top of ignition well. Cardboard Cover Figure 12 14. Open the tank valve. Apply a solution of soapy water to the tank-regulator connection and to the valve-hose connection to check for leaks as shown in Figure 13.
-
Page 12: Lighting Instructions
LIGHTING INSTRUCTIONS Warning: If these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. 1. Make sure the control knob is in the "OFF" position. See Figure 15 Open the tank valve all the way. -
Page 13: Troubleshooting Guide
