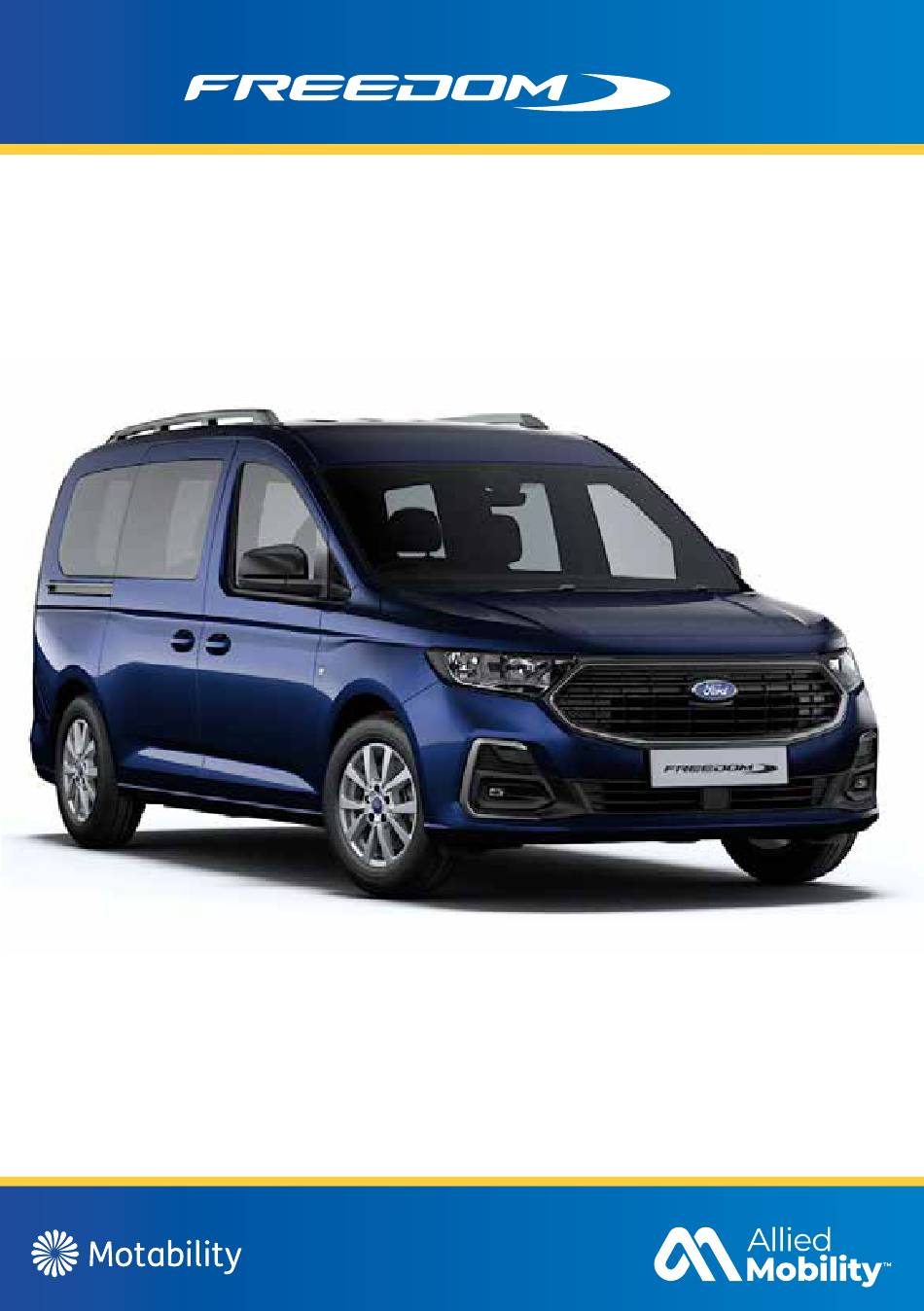

GRAND
GRAND
FORD
FORD
GRAND
GRAND
USER GUIDE
Freephone 0800 587 9656
www.alliedmobility.com
page 1
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freedom 2023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ford Freedom 2023

  • Page 1 GRAND GRAND FORD FORD ™ ™ page 1 USER GUIDE GRAND GRAND USER GUIDE Freephone 0800 587 9656 www.alliedmobility.com...
  • Page 2: Table Of Contents

    GRAND FORD ™ page 2 USER GUIDE GRAND Contents Page 3. EasyGlide™ Ramp Operation Page 5. EasyGo™ Ramp Operation Page 6. Entry and Front Wheelchair Restraints Page 7. Electric Assist Winch Page 8. Rear Wheelchair Restraints Page 9. Wheelchair Passenger Seat Belt Page 10.
  • Page 3: Easyglide™ Ramp Operation

    GRAND FORD ™ page 3 USER GUIDE GRAND EasyGlide Ramp Operation - Deploy The EasyGlide ramp is a double action ramp. When not in use it can either be stored vertically at the rear of the vehicle or fold flat into the floor to allow easier access to the rear storage space.
  • Page 4 GRAND FORD ™ page 4 USER GUIDE GRAND EasyGlide Ramp Operation - Stow Stowing the ramp Using the handle in the centre of the ramp , lift up fig.1 the ramp and walk it back into its vertical position . To reduce the height of the ramp when travelling, fig.2...
  • Page 5: Easygo™ Ramp Operation

    GRAND FORD ™ page 5 USER GUIDE GRAND EasyGo™ Ramp Operation The EasyGo™ ramp is a single action ramp. When not in use it is stored vertically at the rear of the vehicle. Deploying the ramp fig.1 To release the ramp pull the lever on the underside of the main ramp body fig.1...
  • Page 6: Entry And Front Wheelchair Restraints

    GRAND FORD ™ page 6 USER GUIDE GRAND Entry and Front Wheelchair Restraints A. Open the tailgate fully and deploy the ramp. B. Remove the rear wheelchair restraints from the floor anchors by lifting the toggle while sliding the fig.1 restraints off the anchors fig.1...
  • Page 7: Electric Assist Winch

    GRAND FORD ™ page 7 USER GUIDE GRAND Electric Assist Winch Note: The Electric winch system is designed to assist in pulling a wheelchair passenger up the ramp. If your vehicle has a winch included, it should be operated in addition to the wheelchair restraint system as follows: fig.1...
  • Page 8: Rear Wheelchair Restraints

    GRAND FORD ™ page 8 USER GUIDE GRAND Rear Wheelchair Restraints A. Retrieve the rear wheelchair restraints. The restraints attach to the anchors at the rear of the vehicle fig.1 To attach the restraints, lift the toggle then slide them onto the anchors on the floor .
  • Page 9: Wheelchair Passenger Seat Belt

    GRAND FORD ™ page 9 USER GUIDE GRAND Wheelchair Passenger Seat Belt Note: Your vehicle is fitted with one of two possible wheelchair passenger seat belts. Please ensure you follow the correct fitting instructions for the wheelchair passenger seat belt fitted to your vehicle.
  • Page 10: Wheelchair Passenger Seat Belt: [Grand] Freedom Rs/Rx & Freedom Re

    GRAND FORD ™ page 10 USER GUIDE GRAND Wheelchair Passenger Seat Belt: [Grand] Freedom RS/RX & Freedom RE A. Locate the tongue that is fixed at the very end of the belt and secure this in the buckle nearest to the fig.1a...
  • Page 11 GRAND FORD ™ page 11 USER GUIDE GRAND Wheelchair Passenger Seat Belt: [Grand] Freedom RS/RX & Freedom RE C. The seat belt should rest on the passenger’s shoulder without rubbing against their neck . If necessary, fig.5 the shoulder belt height can be raised fig.6a...
  • Page 12: Wheelchair Passenger Seat Belt: Grand Freedom Re

    GRAND FORD ™ page 12 USER GUIDE GRAND Wheelchair Passenger Seat Belt: Grand Freedom RE A. Retrieve the buckle belt from the vehicle glove box fig.1 B. Attach the connector to the pin on the rear fig.1a wheelchair restraint farthest from the seat belt reel box fig.1...
  • Page 13 GRAND FORD ™ page 13 USER GUIDE GRAND Wheelchair Passenger Seat Belt: Grand Freedom RE G. The buckle should lie as close as practical to the wheelchair passenger’s hip while still retaining access to the buckle release button . If necessary, the fig.6...
  • Page 14: Getting Ready To Travel & On Arrival

    GRAND FORD ™ page 14 USER GUIDE GRAND Getting Ready to Travel With the wheelchair restraints and wheelchair passenger seat belt firmly secured, you’re almost ready to go. A. Stow the ramp following the relevant instructions on page 4 or 5.
  • Page 15: Rear Folding Seats

    USER GUIDE GRAND Rear Folding Seats The rear triple bench seats in the Ford Freedom can be folded forward to create additional space if required. Ensure the front seats are far enough forward to allow the rear seats to fold into the stowed position. The front seats can be moved back once the fold is completed.
  • Page 16: Optional Tip & Turn Seating

    GRAND FORD ™ page 16 USER GUIDE GRAND Optional Tip & Turn Seating Optional tip and turn seats may be fitted in the back of your vehicle allowing you to travel with additional rear passengers . The seats can swing around fig.1...
  • Page 17: Seat Belts

    The seats in the second row of your vehicle are equipped with the original Ford seat belt apparatus. Should you require any instruction on the operation or maintenance of the seat belts, please refer to the base vehicle handbook.
  • Page 18: Child Restraints

    GRAND FORD ™ page 18 USER GUIDE GRAND Child Restraints Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats. In accordance with European regulations, all children under the age of 12 or less than 150cm tall must travel in approved child seats suited to their weight, on seats fitted with a seat belt or ISOFIX anchors.
  • Page 19: Fitting Universal Child Restraints

    GRAND FORD ™ page 19 USER GUIDE GRAND Fitting Universal Child Restraints When fitting a child restraint secured by the adult occupant seat belts ensure that the seat belt is correctly positioned around the child restraint in line with the instructions provided by the child restraint manufacturer.
  • Page 20: Fitting Isofix Child Restraints

    The ISOFIX restraint system provides fast, reliable and safe fitting of child restraints. Instructions for fitting i-Size child restraints to the triple bench seats (RS/RX) can be found in your Ford handbook. fig.1 The single seats (RE) in the second row of your vehicle are fitted with ISOFIX anchor points that accommodate ISOFIX child restraints.
  • Page 21: Important Note

    GRAND FORD ™ page 21 USER GUIDE GRAND Fitting ISOFIX Child Restraints IMPORTANT NOTE Strictly follow the fitting instructions provided with the child restraint and familiarise yourself with the location of the latch, top tether, and support leg indicators. Incorrect installation of a child restraint compromises the protection of the occupant during a crash.
  • Page 22 GRAND FORD ™ page 22 USER GUIDE GRAND Puncture Repair System: Tyre Inflator and Sealant Should you experience a flat tyre, a can of tyre inflator and sealant is provided. This is located behind the rear right storage panel located next to the tailgate.
  • Page 23 GRAND FORD ™ page 23 USER GUIDE GRAND Allied Mobility Freedom WAV type: AWAV PAS 2012-1:2019 Compliant: Yes Base vehicle: Ford Tourneo Connect Model Grand Grand Model Grand Grand Freedom Freedom Freedom Freedom Freedom Freedom Wheelchair Access Entrance Dimensions Maximum Seating Capacity...
