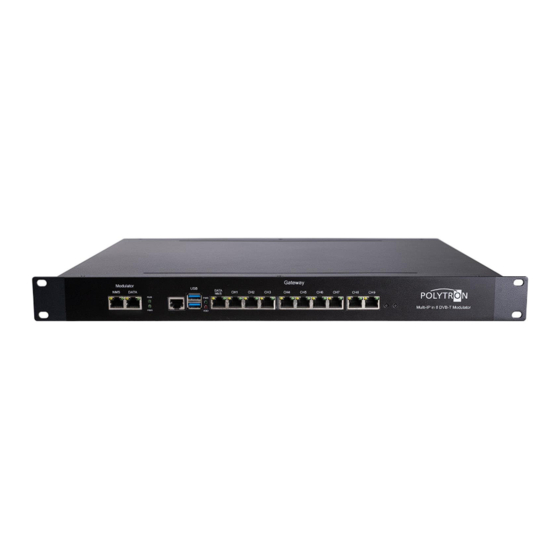

Polytron HDI 256-8 T User Manual

Ip gateway/modulator, ip into ip and 8 dvb-t
Hide thumbs Also See for HDI 256-8 T:
Table of Contents

Advertisement

Quick Links

Download this manual
HDI 256-8 T
IP Gateway/Modulator
IP into IP and 8 DVB-T
User Manual
0902592

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDI 256-8 T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polytron HDI 256-8 T

Summary of Contents for Polytron HDI 256-8 T

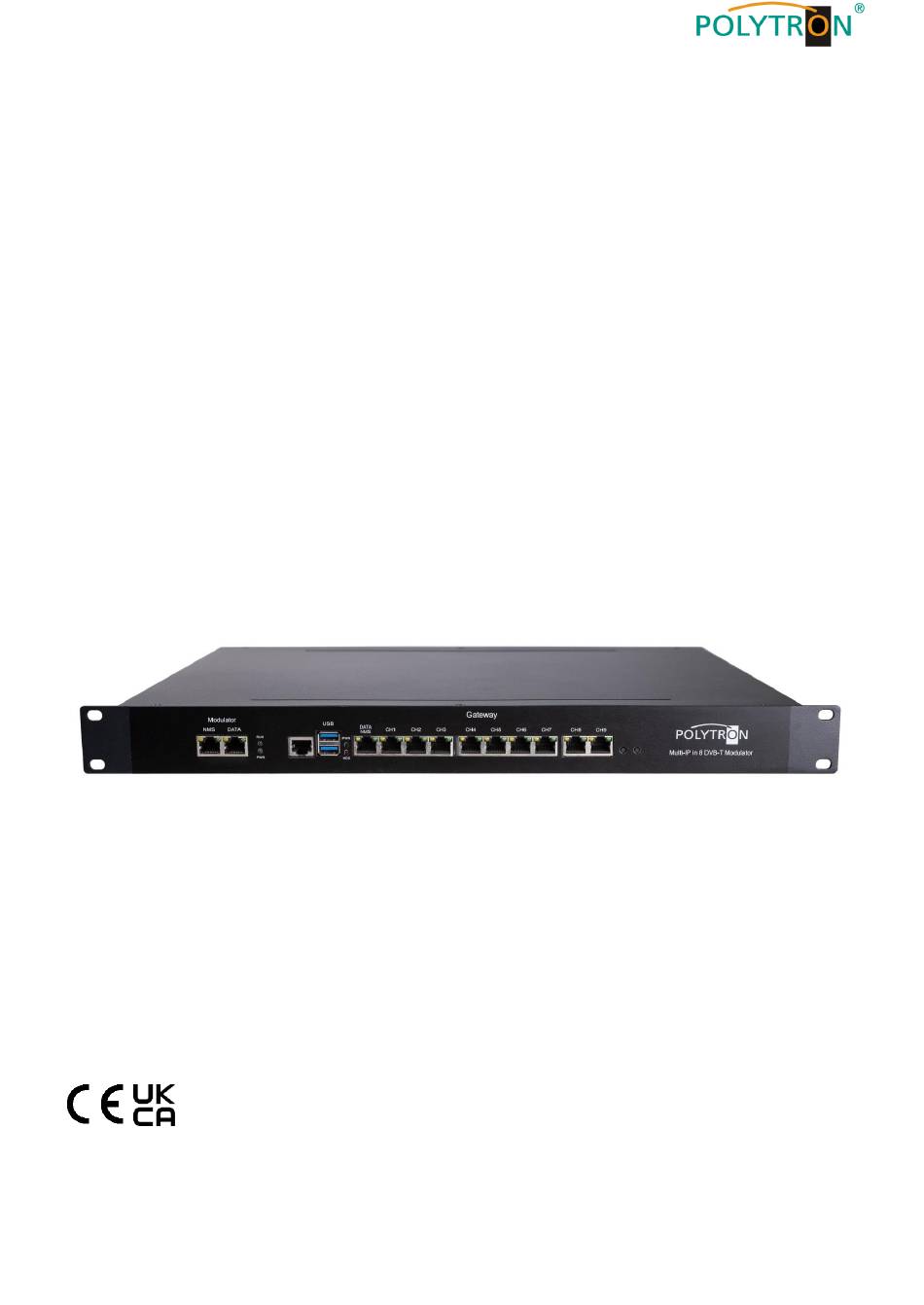

  • Page 1 HDI 256-8 T IP Gateway/Modulator IP into IP and 8 DVB-T User Manual 0902592...

  • Page 2: Table Of Contents

    Contents 1. Montage- und Sicherheitshinweise / Mounting and Safety instructions 2. Product overview Description Key features Block diagram 3. Housing and connections Front view Rear view 4. Installation guide Scope of delivery Preparation for installation 4.2.1 Installation flow chart and wiring 5.

  • Page 3: Montage- Und Sicherheitshinweise / Mounting And Safety Instructions

    Informationen zur Installation, Umgebungsbedingungen sowie Wartung und Service am Gerät! Bewahren Sie die Bedienungsanleitung für den späteren Gebrauch auf. Alle Bedienungsanleitungen finden sie auf unserer Website unter: https://polytron.de/index.php/de/service/bedienungsanleitungen Bestimmungsgemäßer Gebrauch Verwenden Sie das Gerät nur an den zulässigen Betriebsorten, unter den zulässigen Umgebungs-bedingungen sowie zu den in der Bedienungsanleitung beschriebenen Zweck.
  • Page 4 Landkreises/Landes/Staates als Elektronikschrott einer geordneten Entsorgung zuzuführen. WEEE-Reg.-Nr. DE 51035844 § Garantiebedingungen Es gelten die allgemeinen Geschäftsbedingungen der Polytron-Vertrieb GmbH. Diese finden Sie auf unserer Website unter: https://polytron.de/index.php/de/unternehmen/agbs ALLGEMEINE HINWEISE ZUR BEDIENUNGSANLEITUNG  Alle Parameterangaben sind lediglich beispielhaft.  Technisch realisierbare Parameter sind frei wählbar.
  • Page 5 Save the operating instructions for later use. All operating instructions can be found on our website at: https://polytron.de/index.php/en/services/operating-manuals Approved use Use the device only at the permissible operating locations, under the permissible environmental conditions and for the purpose described in the operating instructions.
  • Page 6 WEEE-Reg.-Nr. DE 51035844 § Guarantee conditions The general terms and conditions of Polytron-Vertrieb GmbH apply. The general terms and conditions can be found on our website at: https://polytron.de/index.php/en/company/general-terms-and-conditions GENERAL INFORMATION ON THE OPERATING INSTRUCTIONS ...

  • Page 7: Product Overview

    HLS and RTMP protocol. The other is modulator module which supports IP in and IP out and DVB-T RF out, and it can receive gateway source directly. So HDI 256-8 T achieves IP (HTTP, UDP, RTP, RTSP and HLS) in to RF out in one box.

  • Page 8: Housing And Connections

    3. Housing and connections 3.1 Front view 4 5 6 7 NMS port modulator; CA data port IP input (max. 128 IP in) Power indicators modulator Reserved port USB port Power indicators IP gateway NMS port IP gateway; IP output CH1…CH9 IP inputs;...

  • Page 9: Installation Guide

    4. Installation guide 4.1 Scope of delivery 1 x HDI 256-8 T IP Gateway/Modulator 1 x Quick start guide 1 x Mounting and safety instructions 1 x Power cord 1 x Grounding cable 4.2 Preparation for installation Please observe the following procedure and notes during installation.

  • Page 10: Network Management System (Nms)

    Users can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the HDI 256-8 T’s IP address; otherwise, it would cause IP conflict 5.1 Login...

  • Page 11: Operation Gateway Module

    After confirming the login data, the status interface where users can have an overview of system information will be displayed. 5.2 Operation Gateway module 5.2.1 System Topology After confirming the login data for the gateway module, the following menu view will be displayed. User can click any item here to enter Schematic diagram of...
  • Page 12 Custom Program Clicking “Custom Program”, it displays the interface where users can upload TS files from local sources for distributing programs. Protocol Conversion Clicking “Protocol Conversion”, it displays the interface where users can set protocol conversion parameters and add programs from CH1-9. Input protocol supports HLS, HTTP, RTP, UDP, RTSP (RTP over UDP, playload MPEGTS). Output supports HLS, UDP, RTMP (RTMP is only supported when input sources are H.264 and AAC encoding.) Output address can’t be changed when selecting HLS as output protocol.
  • Page 13 Click to download the template for inputting program information and to batch import/export programs Click to add programs and edit program information as below box Click to batch delete programs Click to sort programs manually by dragging program’s name...

  • Page 14: Interrupted Info

    HTTP Clicking “HTTP”, it displays the interface where users can set the HTTP parameters. HLS, HTTP and RTSP can’t be converted into HTTP directly, but UDP and RTP can be converted into HTTP. The setting principle is same as “Protocol Conversion”. Note: If users want to IP out over HTTP, they need to convert HLS/HTTP/RTSP into UDP/RTP, and then converting UDP/RTP into HTTP.

  • Page 15: Adv

    5.2.4 ADV Rolling Subtitles ADV function is only applicable to IP out application and the STB and TV must be installed Dexin IPTV APK. Clicking “Rolling Subtitles”, it displays the interface where users can add rolling subtitles and set subtitles’ parameters.

  • Page 16: More Configuration

    5.2.5 More Configuration System Set Clicking “System Set”, it displays the interface where users can select client protocol and Unicast output port, and set ADV parameters. Receiving programs from “Protocol conversion” or “HTTP” “eth0” refers to Data port. “eth1-7” refer to CH1~7. Users can choose Unicast “Boot Live”...
  • Page 17 Client Management Clicking “Client Management”, it displays the interface where users can download APK from this module and then upload it to STB and TV. Clicking “Download APK”, it will open the download menu to save IPTV APK file. AUZ Information Clicking “AUZ Information”, it displays the interface where users can check the authorization information.

  • Page 18: Sys Information

    5.2.6 Sys Information Clicking “System Information”, it displays the interface where users can check the system information such as CPU usage rate, CPU usage record and so on.

  • Page 19: Operation Modulator Module

    5.3 Operation Modulator module 5.3.1 Summary After confirming the login data, the summary interface for DVB-T modulator will be displayed, where users have an overview of system information. User can click any item here to enter the corresponding interface to check information or set the parameters.

  • Page 20: Parameters

    5.3.3 Parameters TS Config After clicking on "TS Config" the interface for configuration the output TS parameters will be displayed. By clicking on the triangle symbol next to "Output TS x", the selection list of TS output channels 1-8 is displayed. ...
  • Page 21 To refresh the input program information To refresh the output program information After selecting an input program, click on this field to transfer the program to the output area Remove selected programs from the output area To select all the input programs To select all the output programs To parse programs Time limitation of parsing input programs...
  • Page 22  PID PASSTHRU: After clicking on "PID PASSTHRU", the input window is displayed, in which PIDs are added to be issued at the output. In some cases there are PIDs which cannot be assigned to a program (e. g. EPG, NIT tables, etc.). However, these should be available at the output without changes.

  • Page 23: System

    IP Stream The HDI 256-8 T supports TS output in IP format (8*MPTS) via the data interface. In the selection bar on the left, click on "IP stream" to open a dialog box where the IP output settings can be made.
  • Page 24 Password In the selection bar on the left, click on "Password" to open the dialog box to setting login and password protection. Current UserName Enter the current user name (default: admin) Current Password Enter current password (factory setting: admin) New UserName Enter new user name New Password Enter new password...
  • Page 25 “Load“ Select the backup file in the PC/laptop by clicking on the “Browse“ button and activate the loading of the selected configuration file onto the device by clicking the “Load config“ button. Firmware The "Firmware" menu allows the software update of the device, so the current components can be updated and newly implemented functions can be activated.

  • Page 26: Technical Data

    6. Technical data HDI 256-8 T Typ / Type 5741707 Artikel-Nr. / Article no. IPTV gateway module Input IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: MPEG TS) and HLS TS files uploading through Web management...
  • Page 27 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, the distance Machine Hall Space between 2 rows of machine frames should be 1.2…1.5 m and the distance against wall should be no less than 0.8 m. Electric Isolation, Dust Free 10 ...
  • Page 28 Technische Hotline Technical hotline + 49 (0) 70 81 / 1702 - 0 Telefax + 49 (0) 70 81 / 1702 - 50 Internet http://www.polytron.de Email info@polytron.de Technische Änderungen vorbehalten Subject to change without prior notice Copyright © Polytron-Vertrieb GmbH...
