Option 1: Flush mounting for a 50 mm (1.96") cutout
2 2
CLICK
Option 2: Surface mounting
2 2
Specifications
Nominal Impendance
4 ohm
Power Handling
90W
Max. Transient Power
180W
Sensitivity (2.83V/1M)
92dB
Frequency Response
60-22,000Hz
Tweeter Crossover
4000Hz
Voice Coil Diameter
Woofer: 25 mm (1")
Magnetic System
Woofer: High Grade Ferrite Magnet
Mounting Depth
Woofer: 63 mm (2.48")
Morel operates a policy of continuous design improvement, consequently specifications are subject to alteration without prior notice.
www.morelhifi.com
3 3
3 4
3 3
Tweeter: 25 mm (1")
Tweeter: Neodymium
Tweeter: 20 mm (0.80")
Installation Guide

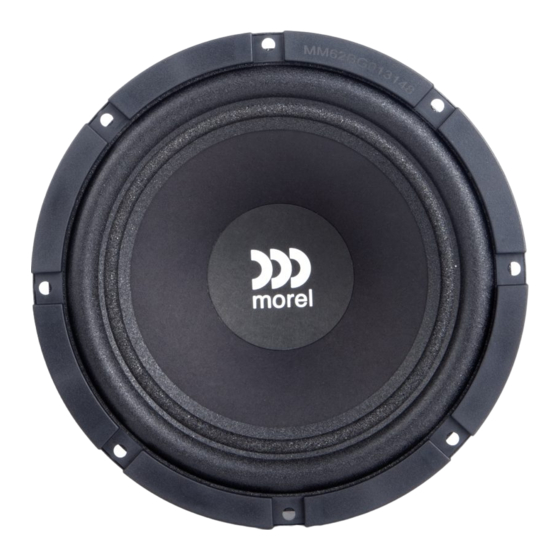

6.5 2Way component system
6
MKII
