Sound Storm SD354 User Manual

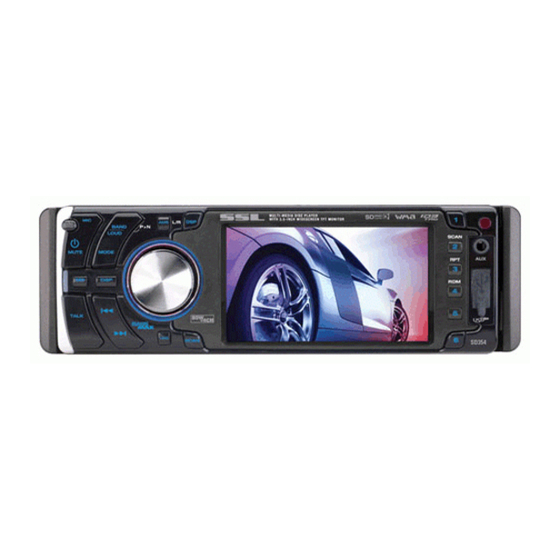

In-dash am/fm dvd/mp3/cd receiver with 3.6" widescreen tft monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD354 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sound Storm SD354

Summary of Contents for Sound Storm SD354

  • Page 2 3.6” In-Dash DVD/MP3/CD Receiver with USB, SD Memory Card Ports and Front Panel AV Input...

  • Page 3: Handling Compact Discs

    1. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.

  • Page 5: Din Rear-Mount (Method B)

    DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket. PANEL OPEN/CLOSE OPERATION 1. Press Open button 2. The CD slot will be accessible. 3. After CD is loaded or unloaded return the panel to its original position. 1.
  • Page 6 3. DETACHABLE CONTROL PANEL (D.C.P .) Attaching the Detachable Control panel (D.C.P .) Removing The Detachable Control Panel (D.C.P .). OPEN BUTTON 1. Attach the panel at the Left side first, with point B on the main unit touching point A on the D.C.P (As shown on the diagram).
  • Page 7 CAUTION DO NOT insert the D.C.P from the right side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. When the open button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall.

  • Page 8: Electrical Connection

    4. ELECTRICAL CONNECTION a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a converter will be necessary). b. Before starting wiring connections, disconnect the power supply by removing the fuse from the fuse box.
  • Page 9 APL/ DSP/ NTSC/ LEFT/ PANEL BAND/ FUNCTION INFRARED RIGHT REPEAT OPEN LOUDNESS SELECT RANDOM PAUSE POWER SCAN REMOTE BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON BUTTON SENSOR MUTE TUNING / SCAN LOCAL/ BUTTON SEEK BUTTON UP/DOWN BUTTON NEXT/BACK BUTTON MODE BUTTON...
  • Page 10 B. FUNCTION OF REMOTE 1. POWER BUTTON 2. PAL / NTSC /BAND BUTTON 3. PLAY / PAUSE BUTTON 4. NUMERIC BUTTONS 5. REPEAT BUTTON 6. REPEAT A - B BUTTON 7. VOLUME UP / DOWN BUTTONS 8. MUTE BUTTON 9. FUNCTION SELECT BUTTON 10.

  • Page 11: Basic Operation

    6. BASIC OPERATION PANEL RELEASE BUTTON Press this button to remove the control panel. POWER BUTTON Press power button to turn on/off the unit. DISPLAY BUTTON(DISP) Press this button briefly,the LCD will display the clock for about 5 seconds, then return to previous display mode.

  • Page 12: Radio Operation

    7. RADIO OPERATION FM MONO / STEREO BUTTON (MONO) Use this control to select stereo or mono reception for FM radio stations. You can sometimes improve reception of distant stations by selecting mono mode. LOCAL / DX BUTTON (LOC) This control can be used to change between Local and Distant (-DX) tuning mode. Local mode improves reception in some areas where the signal is too strong.
  • Page 13 8. CD/MULTI-MEDIA FILE LOADING THE CD Press the Panel Open Button to fold down the front panel, insert the disc through CD slot, the disc will be automatically loaded and playback will also start. CD EJECT BUTTON Press this button to eject the CD. Since this button is located behind the front panel, fold down the panel before accessing this button.

  • Page 14: Stop Button

    MULTI-MEDIA FILE OR FOLDER SEARCHING Selecting a Track to Play Use the UP/DOWN/LEFT/RIGHT direction buttons to move to different file/folder Numbers. Press OK on a file number, and that file will begin to play, or by direct numeric input, Enter a file number with the numeric buttons (0-9) and +10 button to play the input Files Number.
  • Page 15 PROGRAM BUTTON (PROG) Press PROG button the screen will display the following message. PROG 1 0002 5 ---- 2 0004 6 ---- 3 ---- 7 ---- 4 ---- 8 ---- PLAY A. For example:Press numeric button 2 ,PROGRAM 0002 appears it means track 2 will be player first then press numeric button 4 and PROGRAM 0004 appears,press the different numeric button to select the corresponding track and then you can program tracks to your need if you want to complete program setting press PLAY button to play tracks in...
  • Page 16 9. PLAY MULTI-MEDIA FILES OPERATION Place a disc into the player, and the player will auto search the directories saved files. After searching, it will auto go to the first directory saved files (to the disc containing both Music and photo files;...
  • Page 17 10. MMC/SD CARD & USB DEVICE OPERATIONS START THE USB DEVICE MODE 1.The USB socket is accessible as indicated in picture 1.(P .1) 2.Plug in the USB drive / device completely as indicated in picture 2(P .2) and display will show “USB” to indicate that the USB drive / device is being plugged in correctly &...
  • Page 18 START THE SD/MMC MODE P .4 D.C.P . P .5 P .6 TO STOP SD/MMC CARD PLAYBACK 1.Push on the end of the SD or MMC card to eject the SD or MMC card. Once the SD or MMC card is taken out, the unit will automatically switch to previous mode. 2.User can use the mode button to choose SD / MMC mode (only if SD or MMC is inserted in the unit ) or any other modes, when they are in any mode.
  • Page 19 VIDEO DISC OPERATIONS PLAY BUTTON ( Press this button briefly to pause disc play, press again to resume play. STOP BUTTON( Stop the current disc playback. Briefly press the STOP button to stop the unit playback,when the PLAY button is pressed,normal playback will continue.
  • Page 20 ZOOM BUTTON(ZOOM) The ZOOM feature allows you to magnify a certain area of the images recorded on the disc and other image discs. the screen will display the following message: ZOOM X2 A. Press ZOOM button to enlarge the image by X2. B.
  • Page 21 PROGRAM BUTTON (PROG) The PROGRAM feature, select A. Use numeric buttons to enter highlight PROGRAM title/chapter,for example: press numeric button title 2,chapter 4,PROGRAM T02/C04 appears it means Title 2,chapter 4 will be played first then press numeric button title 3,chapter 5 and PROGRAM T03/C05 appears, press the different numeric button to select the corresponding title/chapter and then you can program title/chapter to your need.if you want to complete program setting press PLAY button to play chapters in programmed order.

  • Page 22: Setup Menu Operation

    12. SET UP MENU OPERATION General Steps of Setup Menu 1) Press the Setup button, the main setup menu appears. When the main menu displayed, the Video system will auto pause. 2) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;...

  • Page 23: System Setup

    4) Press the Arrow buttons to highlight the Exit Setup option, then press Enter or Setup again to exit Setup Menu. NOTE: When setup, the pressing setup buttons will turn off the setup menu, while the choices that have been changed will be saved. Setup Items Introduction 1) SYSTEM SETUP The system setup options are illustrated below:...

  • Page 24: Language Setup

    TV TYPE 16 : 9 (Wide Screen): Choose this setting if your Multi-Media player is connected to a wide screen TV. If you choose this setting and you don't have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4 : 3 LB (Letter Box): Choosing this setting if your Multi-Media player is connected to a normal ratio TV.
  • Page 25 OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press Enter to confirm, and it will display OSD in that language. AUDIO LANG Highlight the AUDIO LANG option, and press the Arrow buttons to choose the audio language you prefer.

  • Page 26: Specifications

    13. SPECIFICATIONS CD PLAYER System Usable disc Sampling frequency No of quantization bits Frequency Number of channels S/N Ration RADIO SECTION Frequency Range Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio AM (MW) Frequency Range Intermediate Frequency Usable Sensitivity S/N Ratio GENERAL Power Supply Polarity...
