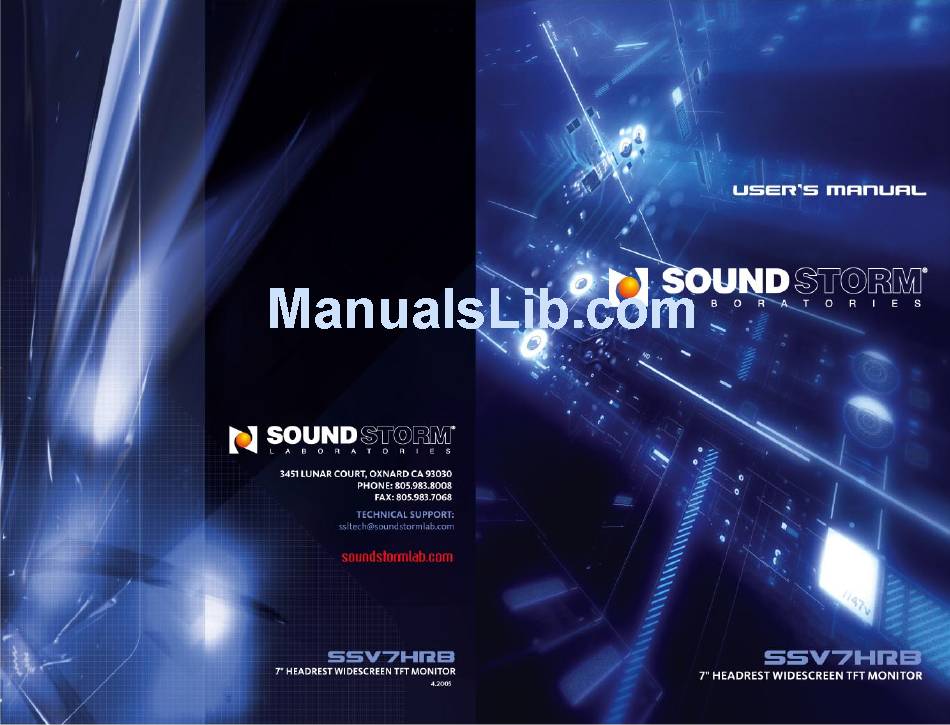

- Page 2 SSV7HRB 7" Headrest Widescreen TFT Video Monitor Congratulations on your purchase of a Sound Storm Video Monitor. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of viewing pleasure.
-
Page 3: General Precautions
• Do not attempt to repair a damaged, broken or faulty power cord. Replace it with a new one immediately. SSV7HRB User’s Manual User’s Manual - page 2 • To avoid risk of electronic shock or damage to the monitor, do not permit any of this equipment to become damp or wet from water or drinks. - Page 4 Turn the unit off when it is not in use. Avoid dropping any metal objects or inflammable items into the monitor ventilation slots. Do not place objects on or suspend objects from the power cord, as this may damage the cord. SSV7HRB User’s Manual User’s Manual - page 3...
- Page 5 • TFT Active Matrix LCD display • On-screen menu system • Dual AV inputs • Wireless remote control SSV7HRB User’s Manual - page 4 What is included? When first unpacking your new flip- down monitor, please check first that the package contains all of the items below.
-
Page 6: Monitor Controls And Features
Once enabled, this button is used as an ENTER button. UP/DOWN BUTTONS These buttons are used to increase or decrease parameters in the on- screen display menu system. SSV 7 HRB SSV7HRB User’s Manual - page 5... -
Page 7: Changing The Battery In The Remote Control
(as shown below) and slide the drawer out. Insert a new battery and push the drawer back fully into the remote. SSV7HRB User’s Manual- page 6 POWER AV1/AV2 MENU ®... -
Page 8: System Wiring
VIDEO INPUT 1 VIDEO INPUT 2 POWER VIDEO SOURCE 1 (DVD player, video game, etc.) VIDEO SOURCE 2 (DVD player, video game, etc.) FUSE BLACK Battery to Chassis Ground SSV7HRB User’s Manual - page 7... -
Page 9: Monitor Installation
Making holes in the upholstery of your vehicle can cause damage which is expensive to repair. 1/4" 1/4" 1/4" SSV7HRB User’s Manual - page 8 Carefully remove the headrest and set it down in an uncluttered work are. Take the appropriate precautions to ensure it is not damaged during installation. - Page 10 Route the cable through the opening just cut, and out the bottom of the headrest. If possible, conceal the cable using a gear shift covering or similar. Then fold the four flaps into the cavity in the headrest. SSV7HRB User’s Manual - page 9...
-
Page 11: Removing The Monitor
Be sure to push the monitor all the way back in until you feel a click when you are reassembling the monitor system. power A/V s ource SSV7HRB User’s Manual - page 10 SSV 7 HRB menu Insert the removal key into the gap on the right side of the monitor to depress the tabs to release it. -
Page 12: Troubleshooting
Check and adjust antenna system. Move to another area with better reception, if possible. Replace batteries. Be sure when being used, the remote is being pointed directly toward the player or remote IR sensor (if installed). SSV7HRB User’s Manual - page 11... -
Page 13: Specifications
Resolution, pixels Brightness GENERAL Power requirements Power consumption Dimensions (L x W x H) All specifications subject to change without notice. SSV7HRB User’s Manual - page 12 SSV7HRB 7" Headrest Widescreen TFT Video Monitor 7" 16:9 (wide) NTSC Active Matrix TFT...
