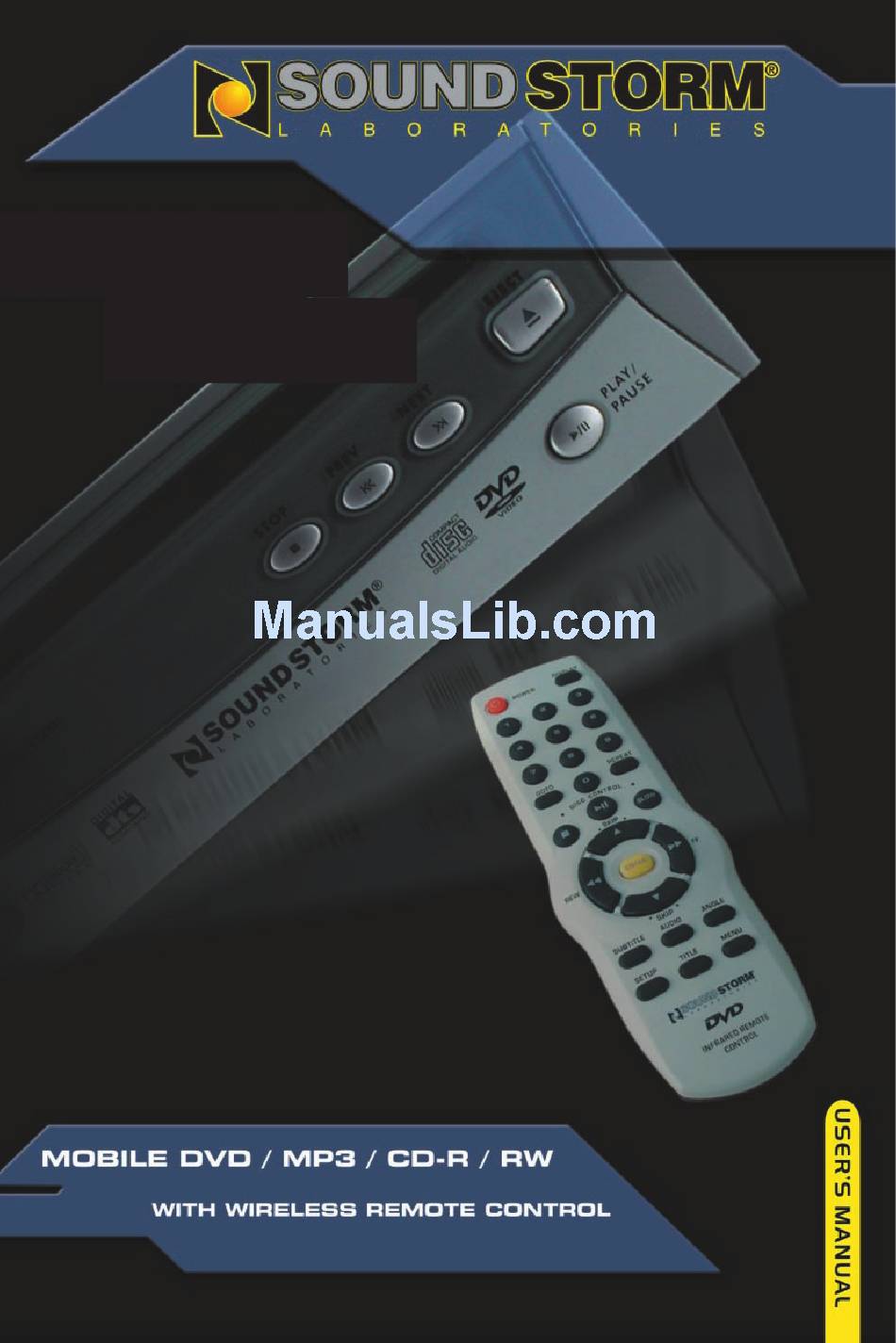

- Page 1 SDVD 150T...
-
Page 2: Use This Product Safely
FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. -
Page 3: Table Of Contents
CONTENTS Safety Information ...4 Disc Notes ...5 Installation ...6 Electric Connection ...7 Remote Control...8 Preparing the Remote Control ...9 Loading a DVD/VCD/CD Disc...9 Ejecting a Disc ...9 Basic Operation ...10 On-Screen Display Function...11 Multi-audio Language Function...11 Menu Function ...12 Title Menu Function (For DVD only) ...12 Multi-subtitle Language Function (For DVD only)...12 Multi-angle Function (For DVD only)...12 MP3 Disc Play...13... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc (Single-sided disc only) Video CD 12 cm disc 12 cm disc 12 cm disc Discs which cannot be played with this player • DVD-ROM • DVD-R/DVD-RAM • CDV • CD-G Handling and Cleaning •... -
Page 6: Installation
INSTALLATION SCREW M4x5 Note: 1. First remove the two transport screws. Next, attach the brackets to each side of the unit with the supplied screws (M4x5). Then mount the unit using (M5x25) screws. 2. The brackets have slots allowing you to slide the unit into the desired position before tightening the screws. -
Page 7: Electric Connection
ELECTRIC CONNECTION DC 12V IN DC 12V OUT AC/DC ADAPTOR (OPTIONAL) DVD PLAYER A/V OUT DIGITAL REMOTE AUDIO VIDEO REMOTE CONTROL RECEIVER CIGARETTE LIGHTER YELLOW VIDEO OUT AUDIO R OUT WHITE AUDIO L OUT... -
Page 8: Remote Control
REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF 0 - 9 Numeric buttons GOTO Disc search button, cooperatively used with numeric buttons Press it to stop playback Press Press In case of MENU mode, those buttons served as cursor buttons SUBTITLE Changing of the SUBTITLE language on multi-subtitle language DVD disc... -
Page 9: Preparing The Remote Control
REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new batteries. Make sure the positive and negative terminals are oriented as indicated. This remote uses two AAA batteries. 3. Close the cover Using the Remote Control Point the remote control toward the front of the player or at the remote eye. -
Page 10: Basic Operation
BASIC OPERATION Stopping Play - Brief press the (Stop) button to stop the unit playback, when press the (Play) button it can continuous normal playback. - Press (Stop) button twice, it will stop the playback and go back to initial Track/Chapter. -
Page 11: On-Screen Display Function
BASIC OPERATION On-Screen Display Function Press the DISPLAY button during playback to display the contents of the current disc on the screen. Example: DVD: (1) Press DISPLAY for the first time: TITLE 01/03 CHAPTER 002/025 00:02:25 Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with... -
Page 12: Menu Function
BASIC OPERATION Press AUDIO during playback. It is possible to switch the sound between monaural and stereo sound. MONO LEFT MONO RIGHT MENU Function DVD: Press MENU button while the disc is playing and the disc menu will be displayed. You can navigate with the remote control navigation keys and select a feature with the ENTER key. -
Page 13: Mp3 Disc Play
BASIC OPERATION MP3 Disc Play MP3 disc is playing as the format of FOLDER. For example: SMART NAVI ROOT ROOT MP3 MUSIC MP3 HEAR YOUR PLAY MODE FOLDER to select the item or folder, then press ENTER button. Pressing REPEAT button repeatedly can select three kinds of repeat play mode. -
Page 14: Setup
SETUP INITIAL SETUP SETUP MENU --- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP 1. Press SETUP in the stop mode. (Press the stop button twice to ensure the player under STOP mode.) 2. The initial SETUP menu is displayed. 3. - Page 15 SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE AUTO ANGLE MARK HI-RES OSD LANG N-FLICKER CAPTIONS SCR SAVER MAIN PAGE PIC mode setup Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution.
-
Page 16: Speaker Setup
SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE SCR SAVER setup Select the SCR SAVER output ON/OFF. SPEAKER SETUP --- SPEAKER SETUP PAGE --- DOWNMIX LT/RT STEREO MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. -
Page 17: Preferences Setup
SETUP --- AUDIO SETUP --- AUDIO OUT OP MODE DYNAMIC LPCM OUTPUT MAIN PAGE Dynamic Range Control Select DRC and adjust the dynamic range of a Dobly Digital encoded program. There are 8 steps between full compression and off compression. --- AUDIO SETUP --- AUDIO OUT OP MODE... - Page 18 SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE ENGLISH DISC MENU FRENCH PARENTAL SPANISH PASSWORD CHINESE DEFAULTS JAPANESE SMART NAV MAIN PAGE SUBTITLE language setup Select the preferred SUBTITLE language by using the cursor buttons. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE...
-
Page 19: Defaults Table
SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS RESET SMART NAV MAIN PAGE DEFAULTS Select reset to become factory initial setting. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS NO MENU SMART NAV WITH MENU... -
Page 20: Specifications
SPECIFICATIONS Supply Voltage Chassis Dimensions Weight Current Consumption Signal System Discs Played Audio Output Level Audio Signal Output Characteristics Note: Specifications and design are subject to modification, without notice, due to improvements in technology. : 12V DC (11V-15V), test voltage 14.4V, negative ground : 160 (W) x 156 (D) x 51 (H) mm 6.3”... -
Page 21: Mobile Tv Tuner Unit
OWNER’S MANUAL MOBILE TV TUNER UNIT... -
Page 22: Control & Function Keys
CONTROL & FUNCTION KEYS SEPARATE TV BOX (FOR MONITOR) FIG.1... - Page 23 CONTROL & FUNCTION KEYS REMOTE CONTROL FIG.2 POWER 12. CH- TV/AV 13. DSP 10. AUTO 14. 0~9 11. CH+ 15. -/--...
- Page 24 TYPE A (FOR MONITOR) (SEE FIG.1): This unit is a separate TV box that can receive DVD/VCD's AV signal and output the signal to the monitor that connected to the unit. And the unit also can receive TV signal through the antenna input jack. DC 12 V IN Through this DC 12V IN jack (1), provide DC 12V power supply to the unit.
- Page 25 13 DSP Press DSP button (13), the screen will display the current status such as TV channel / AV. 14 0~9 The numeric buttons (0, 1~9) (14) allow you to select the corresponding channel directly. 15 -/-- Press the digital select button (-/--) (15) cooperatively used with numeric buttons to select channel desired.
- Page 26 88-V1740-48...
