Sealey 3015CXD.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SAFETY
Ensure the jack is in sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use genuine parts only. The use of unapproved parts may be
dangerous and will invalidate the warranty.
Locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place chocks under wheels of vehicle (but ensure wheels of jack can move freely).
9
Ensure the vehicle's handbrake is engaged, the engine is switched off and transmission is in gear
9
(or "PARK" if automatic).
Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to
9
allow for vehicle tilting.
Ensure there are no passengers in the vehicle.
9
Ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
Only place jack under vehicle manufacturer's recommended lifting points (see vehicle handbook).
9
Check the lifting point is stable and centred on the jack saddle.
9
Ensure the jack wheels are free to move and that there are no obstructions.
9
Use correctly rated axle stands under the vehicle before proceeding with any task.
9
Ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
When not in use, store jack, fully lowered, in a safe, dry, childproof area.
9
IMPORTANT! During the jacking operation, ensure that the vehicle-to-jack saddle contact point is
always visible.
DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
▲
DO NOT operate the jack if damaged.
8
DO NOT allow untrained persons to operate the jack.
8
DO NOT exceed the rated capacity (3 tonne) of the jack.
8
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
DO NOT work under the vehicle until suitably rated axle stands have been correctly positioned.
8
DO NOT use the jack for purposes other than which it is intended.
8
DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
DO NOT adjust the safety overload valve.
8
2. INTRODUCTION
Single-piece hydraulic unit with heavy base design and large jacking saddle. Twin piston Super Rocket Lift feature brings lifting arm straight
into contact with the jacking point in 1-2 strokes. Universal joint release mechanism allows safer, more controlled lowering of the jack. Fitted
with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension.
3. SPECIFICATION
Model No .......................................................... 3015CXD.V3
Capacity ...................................................................... 3tonne
Length ........................................................................ 680mm
Max. chassis height ................................................... 162mm
Max. saddle height ..................................................... 456mm
Min. saddle height ...................................................... 120mm
Consumables:
Jack pad ........................................................................JP17
© Jack Sealey Limited

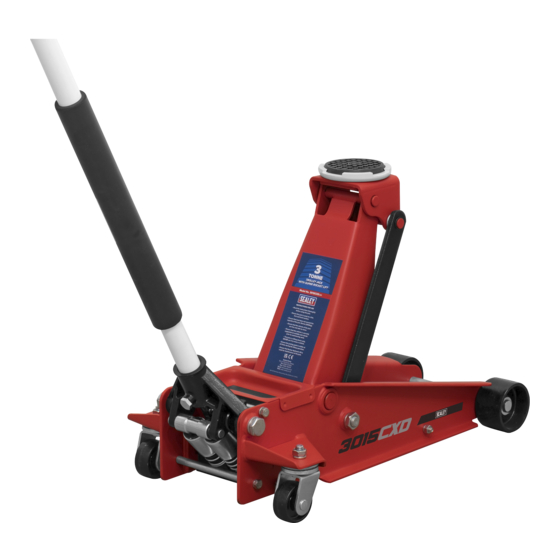

3TONNE TROLLEY JACK WITH SUPER
ROCKET LIFT
3015CXD.V3
MODEL NO:
Original Language Version
TJL3
Apply
h ndbr ke
1 3 5
2 4 R
Use on h rd level floor
Chock
wheels
Never
exceed
j ck c p city
Close
Lower
R ise
OR
Lift & twist
to lower
R ise
Use suit ble xle st nds
X2
w w w . s e l e y. c o . u k
3015CXD.V3 Issue 1 23/12/20
