Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear safety
instructions footwear
1. SafeTy
1.1. Jack
ensure the jack is in sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use genuine parts only. The use of unapproved parts may be dangerous
and will invalidate the warranty.
locate the jack in a suitable, well lit working area.
9
Keep working area clean and tidy and free from unrelated materials.
9
Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place chocks under wheels of vehicle (but ensure wheels of jack can move freely).
9
ensure the vehicle's handbrake is engaged, the engine is switched off and transmission is in gear
9
(or "PARK" if automatic).
ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow
9
for vehicle tilting.
ensure there are no passengers in the vehicle.
9
ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
only place jack under vehicle manufacturer's recommended lifting points (see vehicle handbook).
9
Check the lifting point is stable and centred on the jack saddle.
9
ensure the jack wheels are free to move and that there are no obstructions.
9
Use correctly rated axle stands under the vehicle before proceeding with any task.
9
ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
When not in use, store jack, fully lowered, in a safe, dry, childproof area.
9
iMPorTanT! during the jacking operation, ensure that the vehicle-to-jack saddle contact point is
always visible.
▲ danGer: Use the jack for lifting only, noT for supporting the lifted load.
do noT operate the jack if damaged.
8
do noT allow untrained persons to operate the jack.
8
do noT exceed the rated capacity (3 tonne) of the jack.
8
do noT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
do noT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
do noT work under the vehicle until suitably rated axle stands have been correctly positioned.
8
do noT use the jack for purposes other than which it is intended.
8
do noT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
do noT adjust the safety overload valve.
8
1.2. axle STandS
WarninG!
‰
do noT oVerload axle STandS beyond raTed caPaciTy. oVerloadinG can cauSe daMaGe To, or failure of,
8
THe axle STandS. PoSiTion load on cenTre of cruTcH/Saddle only. alWayS uSe STandS in PairS on Hard
leVel Surface caPable of SuSTaininG THe load. uSe of STandS on oTHer THan Hard leVel SurfaceS can
reSulT in load inSTabiliTy and PoSSible loSS of load. do noT uSe on TarMacadaM. failure To folloW
THeSe inSTrucTionS May reSulT in daMaGe To axle STandS, loSS of load reSulTinG in ProPerTy daMaGe,
SeriouS PerSonal inJury or loSS of life.
danGer! GreaT care MuST be Taken To enSure you loWer THe VeHicle (or oTHer load) SloWly and carefully
8
onTo THe cenTreS of THe cruTcH/Saddle of THe axle STandS.
Use only as specified by the manufacturer.
9
ensure the load does not exceed the maximum capacity as marked on the axle stand, per pair.
9
Use no more than a single pair of stands either on the front, rear or one side of the vehicle. Use in pairs.
9
no alterations or modifications shall be made to this product.
9
Use on a hard, level surface, e.g. concrete. do noT use on uneven ground or tarmacadam.
9
Securely chock wheels in contact with the ground. Before jacking and placing the stands, apply vehicle handbrake (put automatics in 'Park').
9
make sure that each stand is securely located under a strong point on the vehicle; consult the vehicle manufacturer's handbook for
9
guidance. ensure that height adjust locking mechanism is fully located before applying any load to the axle stand.
© Jack Sealey limited

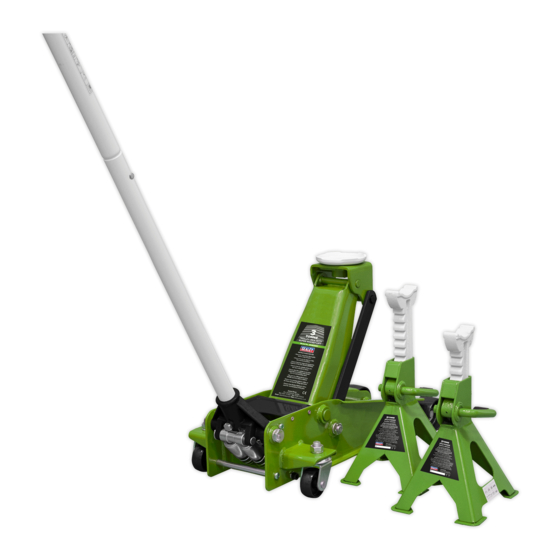

Trolley Jack 3Tonne & axle STandS
(Pair) 3Tonne Per STand - Hi-ViS
3015cxHV
model no:
Original Language Version
Apply
Chock
Wheels
Never
exceed
X2
3015CXHV | Issue 2 (3) 07/02/19
