Sealey 3000CXD.V4 Instructions

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to Wear safety
instructions footwear
1. Safety
ensure the jack is in sound condition and good working order. take action for immediate repair or replacement of damaged parts.
9
use genuine parts only. the use of improper parts may be dangerous and will invalidate the warranty.
locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from unrelated materials.
9
use jack on level/solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle, but ensure the jack wheels are free to move and that there are no obstructions.
9
ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PArK" if automatic).
9
ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
9
ensure there are no passengers in the vehicle and that all non-essential persons keep a safe distance whilst the jack is in use.
9
Place jack under lifting points recommended by vehicle manufacturer (see vehicle hand book). ensure lifting point is stable and centred
9
on saddle.
▲ danGer: use the jack for lifting only, not for supporting the lifted load.
use suitable capacity axle stands under the vehicle before proceeding with any task.
9
ensure there are no persons or obstructions beneath the vehicle before lowering.
9
do not operate the jack if damaged.
8
do not work under the vehicle until axle stands have been correctly positioned.
8
do not exceed the rated capacity of the jack (3tonne/3000kg). When lifting a load of maximum capacity or close to it, it is
8
recommended that the effort be reduced by the use of assistance during this operation.
do not adjust the safety overload valve.
8
do not jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
do not allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
do not top up hydraulic system with brake fluid. use hydraulic jack oil only and use a qualified person to maintain jack hydraulic
8
system.
do not allow untrained persons to operate the jack.
8
do not use jack for purposes other than which it is designed.
8
do not allow persons to ride on the jack.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
2. introduction

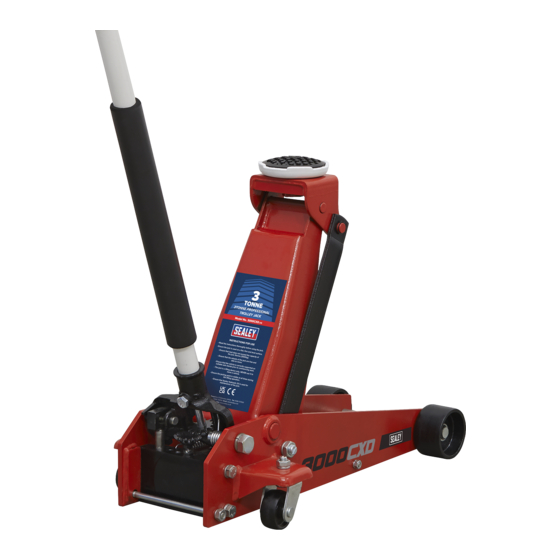

single-piece hydraulic unit with heavy chassis design. integral cog-type release mechanism and long two-piece handle. Heavy duty castors
and large saddle design ease positioning under vehicle. fitted with safety overload valve and pump-through valve to prevent handle locking at
maximum ram extension. ideal for loaded vans up to 3.5tonne/3500kg GVW.
3. Specification
Model no .............................................................3000cXd.V4
capacity ............................................................3tonne/3000kg
min. saddle height .........................................................140mm
max. saddle height ........................................................525mm
length ...........................................................................655mm
Weight ............................................................................36.9kg
optional rubber Jack Pad ...................................3000cXd/JP
© Jack sealey limited
instructions for
trolley jack 3tonne Standard chaSSiS
3000cXd.V4
model no:
Original Language Version 3000cXd.V4 | issue 1 01/03/17
