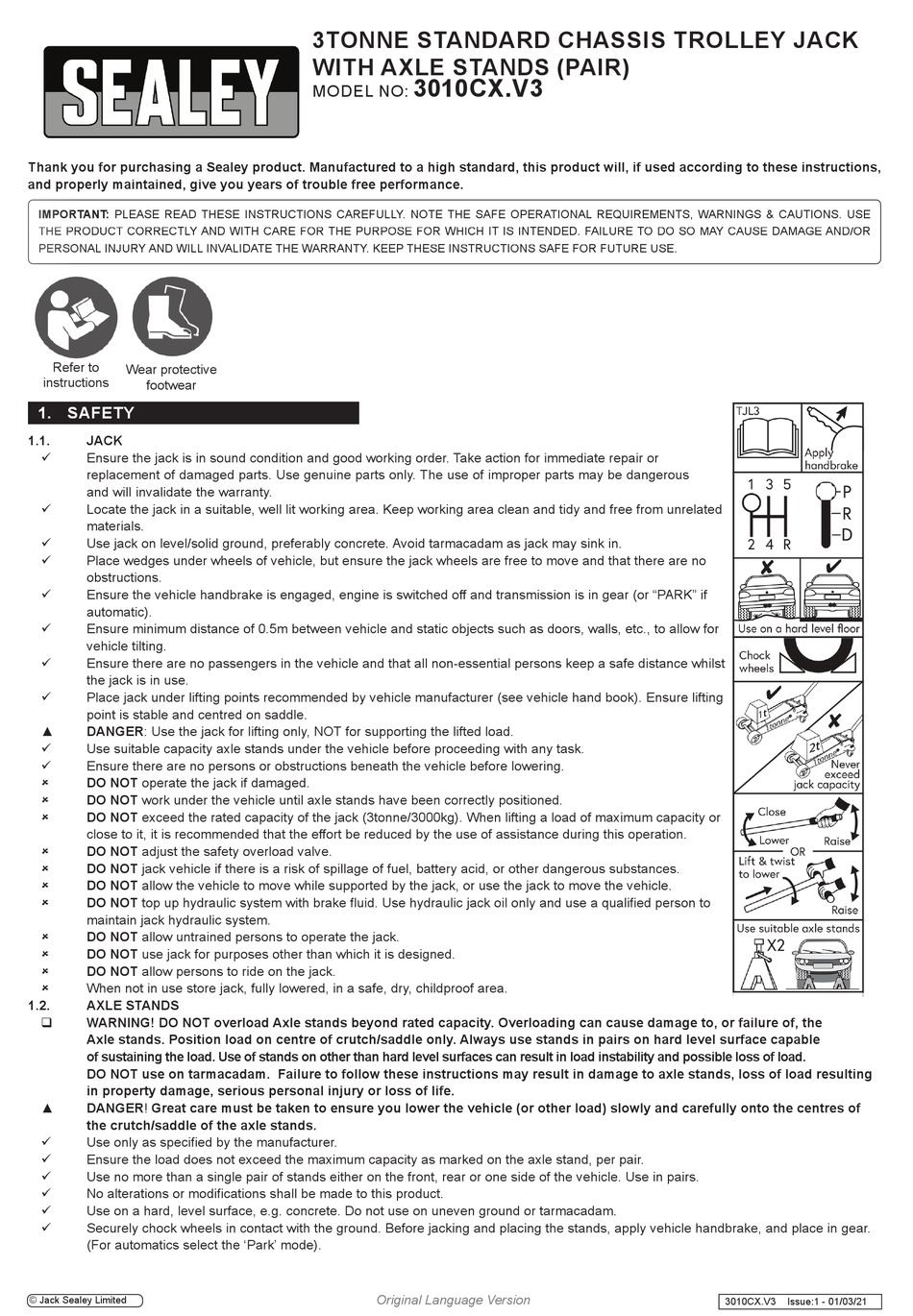

Sealey 3010CX.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMP P OR R TA A NT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
TH H E P P RO O DUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PE E RS S ON N AL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instructions
footwear
1. SAFETY
1.1. JACK
 Ensure the jack is in sound condition and good working order. Take action for immediate repair or
replacement of damaged parts. Use genuine parts only. The use of improper parts may be dangerous
and will invalidate the warranty.
 Locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from unrelated
materials.
 Use jack on level/solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
 Place wedges under wheels of vehicle, but ensure the jack wheels are free to move and that there are no
obstructions.
 Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "PARK" if
automatic).
 Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for
vehicle tilting.
 Ensure there are no passengers in the vehicle and that all non-essential persons keep a safe distance whilst
the jack is in use.
 Place jack under lifting points recommended by vehicle manufacturer (see vehicle hand book). Ensure lifting
point is stable and centred on saddle.
▲ DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
 Use suitable capacity axle stands under the vehicle before proceeding with any task.
 Ensure there are no persons or obstructions beneath the vehicle before lowering.
 DO NOT operate the jack if damaged.
 DO NOT work under the vehicle until axle stands have been correctly positioned.
DO NOT exceed the rated capacity of the jack (3tonne/3000kg). When lifting a load of maximum capacity or

close to it, it is recommended that the eff ort be reduced by the use of assistance during this operation.
 DO NOT adjust the safety overload valve.
 DO NOT jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
 DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
 DO NOT top up hydraulic system with brake fl uid. Use hydraulic jack oil only and use a qualifi ed person to
maintain jack hydraulic system.
 DO NOT allow untrained persons to operate the jack.
 DO NOT use jack for purposes other than which it is designed.
 DO NOT allow persons to ride on the jack.
 When not in use store jack, fully lowered, in a safe, dry, childproof area.
1.2. AXLE STANDS
 WARNING! DO NOT overload Axle stands beyond rated capacity. Overloading can cause damage to, or failure of, the
Axle stands. Position load on centre of crutch/saddle only. Always use stands in pairs on hard level surface capable
of sustaining the load. Use of stands on other than hard level surfaces can result in load instability and possible loss of load.
DO NOT use on tarmacadam. Failure to follow these instructions may result in damage to axle stands, loss of load resulting
in property damage, serious personal injury or loss of life.
▲ DANGER! Great care must be taken to ensure you lower the vehicle (or other load) slowly and carefully onto the centres of
the crutch/saddle of the axle stands.
 Use only as specifi ed by the manufacturer.
 Ensure the load does not exceed the maximum capacity as marked on the axle stand, per pair.
 Use no more than a single pair of stands either on the front, rear or one side of the vehicle. Use in pairs.
 No alterations or modifi cations shall be made to this product.
Use on a hard, level surface, e.g. concrete. Do not use on uneven ground or tarmacadam.

 Securely chock wheels in contact with the ground. Before jacking and placing the stands, apply vehicle handbrake, and place in gear.
(For automatics select the 'Park' mode).
© Jack Sealey Limited
3TONNE STANDARD CHASSIS TROLLEY JACK
WITH AXLE STANDS (PAIR)
3010CX.V3
MODEL NO:
Original Language Version
3010CX.V3 Issue:1 - 01/03/21
