Summary of Contents for Crosley CRMH203AW

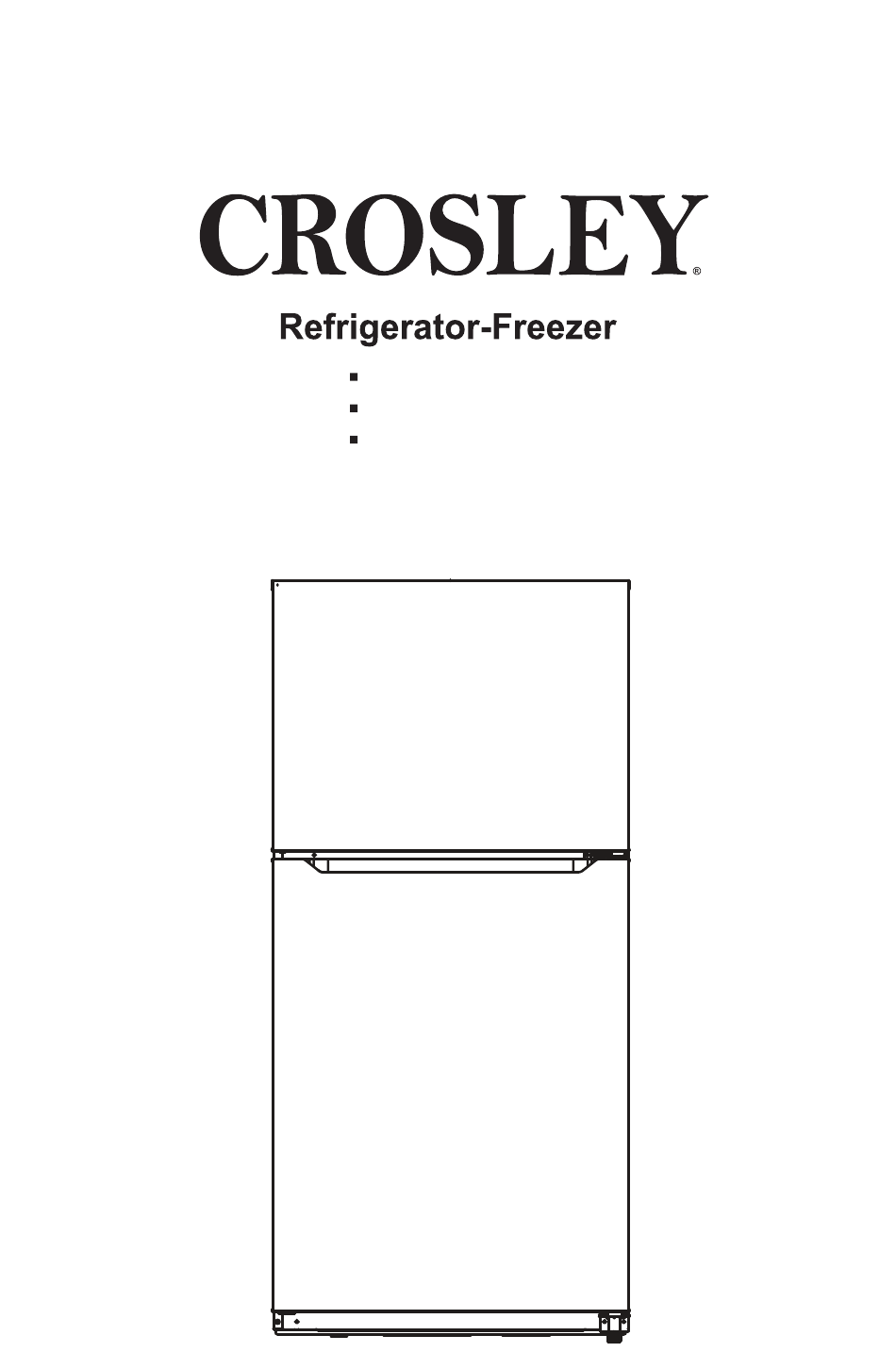

- Page 1 INSTALLATION & OPERATION MANUAL CRMH203AW CRMH203AB CRMH203AS...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS --------------------------------------- SPECIFICATIONS ------------------------------------------------ PRODUCT OVERVIEW ----------------------------------------- PRODUCT INSTALLATION ------------------------------------ OPERATION INSTRUCTIONS --------------------------------- CLEANING AND MAINTENANCE ---------------------------- TROUBLESHOOTING ------------------------------------------- WARRANTY --------------------------------------------------------... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended use Before switching on the appliance for the first time read the following safety hints! This appliance is intended to be used in household and similar applications such houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;... - Page 4 WARNING • DANGER mechanical devices to defrost refrigerator.Do not puncture refrigerant tubing. • DANGER only by trained service personnel. Use only manufacturer authorized service refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing. CAUTION • CAUTION accordance with the applicable federal or local regulations. Flammable refrigerant used.
- Page 5 WARNING Electrical safety Incorrect electrical installation or excessive mains voltage can lead to electric shocks! • Only connect your fridge-freezer to a properly installed earthed socket if the label*. • Do not use extension cords or ungrounded (two-pin) adapters. • Make sure that all electrical cables outside the appliance are protected from damage (e.g.
- Page 6 CAUTION Risk of injury and damage! • Never put frozen food in your mouth immediately after taking it out of the freezer. • Avoid prolonged skin contact with frozen food, ice and the pipes in the freezer compartment. • product. •...
- Page 7 Before The First Use The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier. Remove transport cover The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent.
- Page 8 CAUTION Notes For Cleaning Disconnect the appliance from the power supply before cleaning. • cooling effect and energy saving. • Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. •...
-
Page 9: Specifications
SPECIFICATIONS CRMH203AW,CRMH203AB,CRMH203AD Product model Fresh Food Storage Compartment Volume 415L 14.6 cu ft Frozen Food Storage Volume 165L 5.8 cu ft Defrosting Type Automatic Temperature Rise Time 600 min Freezing Capacity Rated Voltage 115V~/ 60Hz Rated Current Overall Dimension (H x W x D) 1692mm x 755mm x 830mm 66.6"... -
Page 10: Product Overview
PRODUCT OVERVIEW Names of components Display panel on the side 2 2 5 2 2 6 2 2 7 2 2 4 Freezer glass shelf Freezer door tray Display control Storage box Refrigerator shelf Refrigerating door tray Deli Drawer ATTENTION product or statement by the distributor. - Page 11 Names of components Display panel on the top 2 2 5 2 2 6 2 2 7 2 2 4 Freezer glass shelf Freezer door tray Display control Storage box Refrigerator shelf Refrigerating door tray Deli Drawer ATTENTION product or statement by the distributor. When the refrigerator is powered on for theinitial time, storing too much food may adversely affect the cooling effect ofthe refrigerator.
-
Page 12: Product Installation
PRODUCT INSTALLATION Install Instruction For refrigerating appliances with climate class • Depending on the climate class, This refrigerating appliance is intended to be • The climate class can be found on the rating plate. The product may not • Effective temperature range •... - Page 13 Space requirement diagram (when the door is open and when the door is closed) 135 ° Depth Width Overall Depth Width Depth doors open doors open Height With handle 1692 1395mm / 54.9" 1275mm / 50.2" mm / 29.7" mm / 28.9" mm /66.6"...
- Page 14 Door right-left change more convenient to reverse the position of the door. CAUTION CAUTION: To avoid injury to yourself or your property, we recommend that someone assist you during the door reversal process. Preparing to reverse the door position You will need: A standard screwdriver, a Phillips screwdriver, and the included Allen wrench.
- Page 15 Step 1. Unplug your refrigerator and remove all food from the door shelves. 2. Remove the cover plate and the top hinge cover, then unscrew and remove the top hinge. Keep the screws to reuse. 3. When the user removes the top hinge cover, note that the hinge cover can not be directly removed,there is a sensor wiring harness connected to the box on the inside side of the hinge cover, it needs to be slowly dismantled, and then take out the sensor wiring harness from the inside side of the hinge cover, and attach the cover...
- Page 16 hole 8. Unscrew the hinge pin from the bottom hinge and reattach it to the other in the hinge pin, then secure the bottom hinge to the opposite side of the refrigerator using the screws you removed previously.Remove the hole caps and plastic bushings from the top of the freezer and refrigerator doors.
- Page 17 13. Attach the refrigerator door to the bottom hinge, then attach the center hinge to the refrigerator. Use the center hinge from the hinge kit (not the piece removed in step 4). Attach the top hinge Attach the center hinge 14.
- Page 18 Leveling feet To avoid vibration, the unit must be leveled. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise lower it.
- Page 19 Tips for energy saving • Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption. • of the appliance and at the back of the appliance. Never cover ventilation openings. •...
-
Page 20: Operation Instructions
OPERATION INSTRUCTIONS Control panal Display panel on the side Setting Button Display temperature can be adjusted. ATTENTION The actual control panel may differ from model to model. - Page 21 Operating instructions Refrigerator and Freezer setting • Press and hold the temperature setting button for 3 seconds, when the freezer compartment indicator light is on, the freezer temperature can be adjusted. • Press and hold the temperature setting button again for 3 seconds to switch to the refrigeration compartment.
- Page 22 Display panel on the top Alarm/power off/power on button Freezer temperature set Fridge temperature set Display When the initial power is up, it is 3 seconds, While the boot bell rings, and then goes into normal operation display. (Refrigerator and freezer are mid-range at the time of Display fault code in the event of a failure (Loop display);...
- Page 23 Operating instructions Refrigerator settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: Freezer settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: Note: The temperature of each gear is within ±2 of the set temperature, and the actual situation is slightly different according to the load situation.
- Page 24 Shelf humidity control • The movement of the paddle to the middle is wet, and the movement of the paddle to both sides is dry. Display fault code in the event of a failure (Loop display); display the set gear of the refrigeration room in the event of trouble-free.
- Page 25 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
-
Page 26: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning of door tray •... - Page 27 Stop using Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance. Long-time nonuse: The appliance shall be unplugged and then cleaned;...
-
Page 28: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 29 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 30: Warranty
REFRIGERATOR WARRANTY...
