Summary of Contents for Nibe Contura Ci51

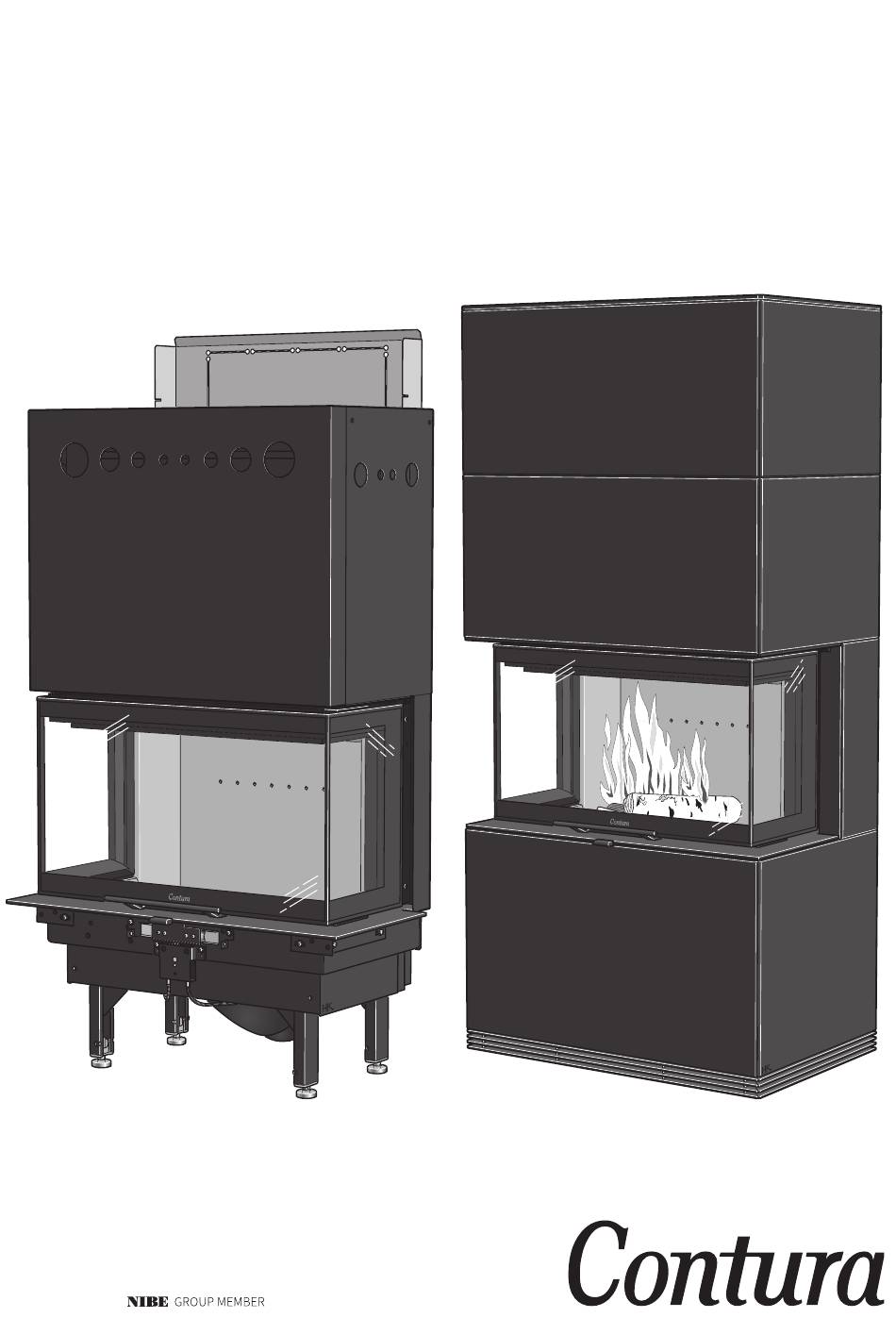

  • Page 1 Operation instructions Ci50 / Ci51 contura.eu...
  • Page 2 Lighting Instructions Lighting in the right way It is important that the correct amount of wood is used, especially when lighting. If you are lighting the fire for the first time you should use a set of scales to see how much 2.3 kg kindling is. Also check what the normal and maximum weights look like.
  • Page 3 Lighting Instructions Adding wood Feeding Wood: The first load of logs after lighting should not be put on until the start-up Split logs fire has turned to embers and no yellow flames are visible. At the first and Length: 25-50 cm second loads of wood after lighting, it is recommended to use 3 pieces Diameter: 6-9 cm of wood to build up a proper glowing bed of embers and get the stove to...
  • Page 4: Lighting For The First Time

    Lighting Instructions QUICK LIGHTING It is important that the wood catches fire quickly. Quick lighting is achieved by opening the combustion air damper fully for a moment. Smoulder combustion produces a lot of smoke and, in the worst instance, can cause quick gas ignition resulting in damage to the insert.
  • Page 5 Lighting Instructions Choosing fuel All types of wood, such as birch, beech, oak, elm, ash, conifers and fruit trees can be used as fuel in the insert. Different types of trees have different densities, the greater the density of the wood the greater the energy value.
  • Page 6: Firebox Maintenance

    Lighting Instructions FIREBOX MAINTENANCE The glass may be come sooty with use, even if the insert is lit with dry wood with a moisture content of 15 – 20%. Regular cleaning with dry paper is usually sufficient to keep it clean. If the soot has been on the glass for a prolonged period, use a cleaning agent or a special soot removal agent to remove it.
  • Page 7: Uk Smoke Control Areas

    Lighting Instructions UK Smoke control areas The Contura i50 and i51, i51A, i51AN, i51S, i51T, 8kW woodburning stoves has been recommended as suitable for use in smoke control areas. This when burning wood logs and operated in accordance with these instructions and when fitted with a permanent stop to prevent closure of primary air control beyond the 52 mm²...
  • Page 8: Combustion Air Supply

    Lighting Instructions Chimney Any bend in the chimney or connecting fluepipe should not exceed 45°. 90° bends should not be used. Combustible material should not be located In order for the stove to perform satisfactorily the chimney height must where the heat dissipating through the walls of fireplaces or flues could be sufficient to ensure an adequate draught of approximately 15 Pa so as ignite it.
  • Page 9: Warning Note

    Lighting Instructions HETAS Ltd Approval; IMPORTANT NOTES These appliances have been approved by HETAS Ltd as an intermittent General operating appliance for burning wood logs only. Before lighting the stove check with the installer that the installation work WARNING NOTE and commissioning checks described above have been carried out correctly and that the chimney has been swept clean, is sound and free from any ob- Properly installed, operated and maintained this stove will not emit fumes...
  • Page 10: Aerosol Sprays

    Lighting Instructions Aerosol sprays USER OPERATING INSTRUCTIONS Do not use an aerosol spray on or near the stove when it is alight. Please read the important notices given above before referring to the main Use of operating tools instruction book for detailed operating instructions. Always use the operating tools provided when handling parts likely to be hot Recommended fuels: when the stove is in use.
  • Page 11 Lighting Instructions Possible causes of malfunctions and how to rectify them There is poor draft in the insert after new installation Abnormal amounts of soot form on the glass There is always a certain amount of soot on the glass and this is added to •...
  • Page 12 Lighting Instructions Managing waste The stove packaging is cardboard, wood and a Hearth plate glass must small amount of plastic. The materials must be be discarded as waste sorted and recycled. material together with pottery and porcelain SWEEPING • During operation, the surfaces of the insert become very hot and can cause burn injury if touched.
  • Page 16 NIBE AB· Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions 811268 BAV SE-EX Ci50-10 at any time without special notice. The current 2019-02-07 edition can be downloaded from www.contura.eu...
