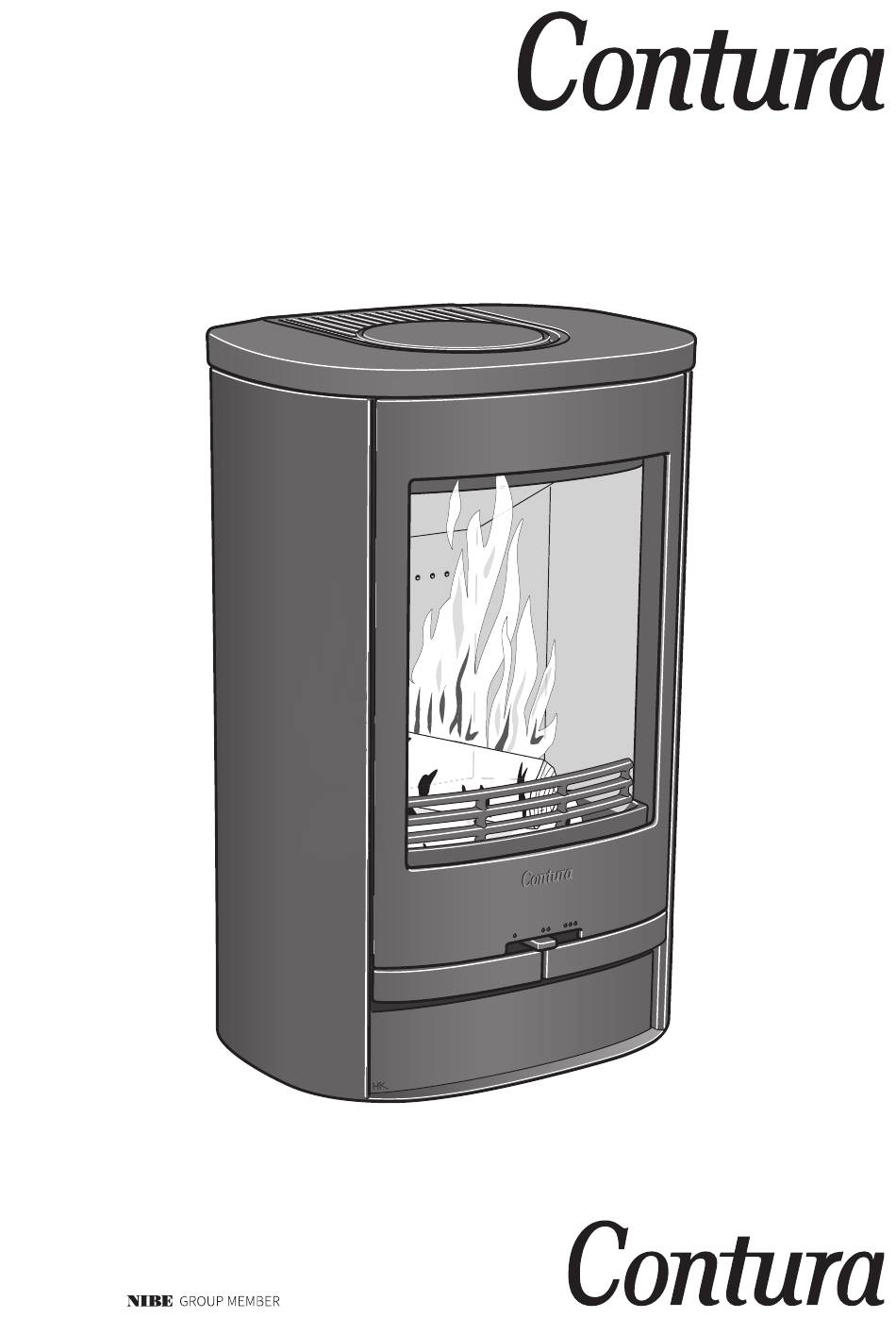

- Page 1 C810L C810L contura.eu...
- Page 2 Facts Installation distances Declaration of performance Assembly...
-
Page 3: Structural Support
Facts 3-6 kW 715 / 730 mm 460 mm 360 mm 70 kg Installation by authorised Structural support Nominal effect 4 kW Efficiency technician Check that the wood joists are strong enough to bear the weight of the stove and chim- This manual contains instructions about how Type approved in accordance with: ney. -
Page 4: Installation Distances
Installation distances C810L A = height from floor to chimney The minimum distance in front of connection upwards the stove opening to combustible Combustible roof B = height from floor to c/c parts of the building or interior chimney connection rear decoration must be at least 1 m. - Page 5 Emissions of hazardous substances Pass Nominal output 4 kW Efficiency Flue gas temperature in connector at nominal 320°C output The undersigned is responsible for the manufacture and conformity with the declared performance. Niklas Gunnarsson, Business area manager NIBE STOVES Markaryd, 1st July 2013...
- Page 6 Prior to installation If the insert needs to be put down to be moved, loose components should be removed. Removal of the hearth cladding is described at the end of these installa- tion instructions. 1 Hot air grate 2 Fire bars 3 Grate disc 4 Type plate 5 Fire bricks (Vermiculite)
- Page 7 Rear connection to a masonry chimney Ø c a 1 8 0 m m...
- Page 8 Top connection to the chimney The hot air grille must be installed before chimney top connection. Supply...
-
Page 10: Handle With Care
How to remove the hearth surround (Vermiculite) Handle with care! - Page 11 Lighting in the Lighting If the house has mechanical ventilation, open a window near to the fire- right way place prior to lighting. Leave the window open for a few minutes until the fire has caught properly. NOTE! It is important that the correct amount of wood is used, especially when The left hand handle that controls the grate disc must be closed lighting.
- Page 12 Choosing fuel When the stove is new When new, the stove may emit an odour due to excess paint and oil coating All types of wood, such as birch, that may remain on the panels. The odour will disappear completely after beech, oak, elm, ash, conifers and several fires.
-
Page 13: Uk Smoke Control Areas
UK Smoke control areas The Contura 810L stove has been recommended as suitable for use in smoke control areas when burning wood logs and operated in accordance with these instructions and when fitted with a permanent stop to prevent closure of the air control vent beyond the 38% open position when sold into smoke control areas. -
Page 14: Important Warning
IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance. There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into the room. Properly installed, operated and maintained this stove will not emit fumes into the dwelling. -
Page 15: Important Notes
Combustion air supply In order for the stove to perform efficiently and safely there must be an adequate air supply into the room in which the stove is installed to provide com- bustion air. The provision of air supply to the stove must be in accordance with current Building Regulations Approved Document J. Special attention should be taken in newer build properties where the design air permeability is less than 5m3/h.m2. - Page 16 Possible causes of Abnormal amounts of soot form on the glass There is always a certain amount of soot on the glass and this is added to malfunctions and how to with each lighting. Soot on the glass is caused by three things: •...
- Page 17 Damper Blocker, mandatory for Smoke Control Areas Position the damper blocker as illustrated. Damper Blocker for C810L...
- Page 20 811371 IAV GB C810L-3 NIBE AB · Box 134 · 285 23 Markaryd · Sweden 2020-12-15 contura.eu...
