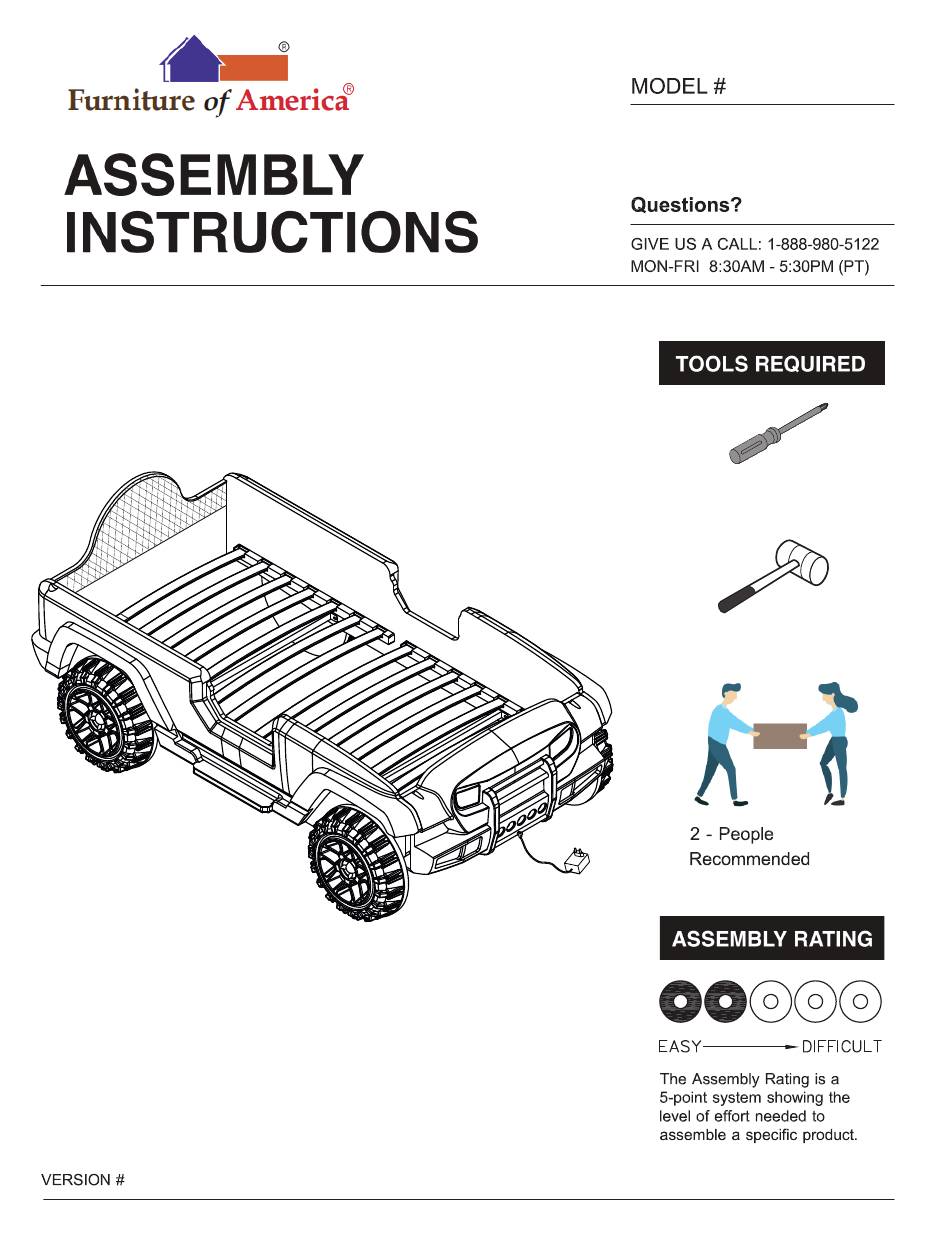

- Page 1 FOA7724GR FOA7724OR Screwdriver (Not included) Mallet (Not included) 22-08-18...
- Page 5 JEEP BED PARTS SLAT SUPPORT STEEL LEFT RAIL x 2 pcs. x 1 pc. RIGHT RAIL PLATE x 1 pc. x 4 pc. SLAT SUPPORT x 4 pc. WHEEL x 4 pc. HEADBOARD SLATS x 1 pc. x14 pc. FOOTBOARD x 1pc. REMOTE CONTROL,ADAPTOR x 1 pc.
- Page 6 HARDWARE MINIFIX WHITE DOWEL MINIFIX NUT MINIFIX STUD PLUG x6 pc. x4 pc. x6 pc. x6 pc. YSB SCREWS YSB SCREWS STEEL DOWEL BUTTERFLY BOLT M5x35 x28 pc. M6x12 x8 pc. x16 pc. M6 x6 pc. YSB SCREWS YSB SCREWS M3x20 x16 pc.
- Page 7 ASSEMBLY INSTRUCTIONS Align the Slat supports (#3) to the Left rail (#1) and secure using Screws (#E). Attach the Studs (#B) to the left rail as shown in the diagram. x 1 pc Part x 2 pcs Part x 3 pcs Hardware Hardware x 14 pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Align the Slat support steel (#6) to the Left rail (#1) and secure using screws (#G). Align the Headboard (#4) and the Footboard (#5) to the Left Rail (#1) and Part x 1 pc secure by locking the Nuts (#A). x 1 pc Part Part...
- Page 9 ASSEMBLY INSTRUCTIONS Secure the Slat support steel (#6) to the Right rail (#2) with screws (#G). Hardware x 4 pcs Insert Steel dowel (#H) to the Plate (#7). Part x 1 pc x 4 pcs Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Attach Wheel (#8) to the Plate(#7). x 1 pc Part Part x 1 pc Secure using Screws (#J). Hardware x 4 pcs...
- Page 11 ASSEMBLY INSTRUCTIONS Align the Wheels to the Right side (#2) rail and secure using Screws (#I). Hardware x 4 pcs Hardware x 4 pc Align the Wheels to the Left side rail (#1) and secure using Screws (#I). Connect Adaptor (#10).
- Page 12 ASSEMBLY INSTRUCTIONS Insert the Slats (#9) on to the Slat Part x 14 pcs support steels (#3).
