VERSION # 19-10-04
1 / 9
MODEL #
FOA7881EK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA7881EK
Summary of Contents for Furniture of America FOA7881EK

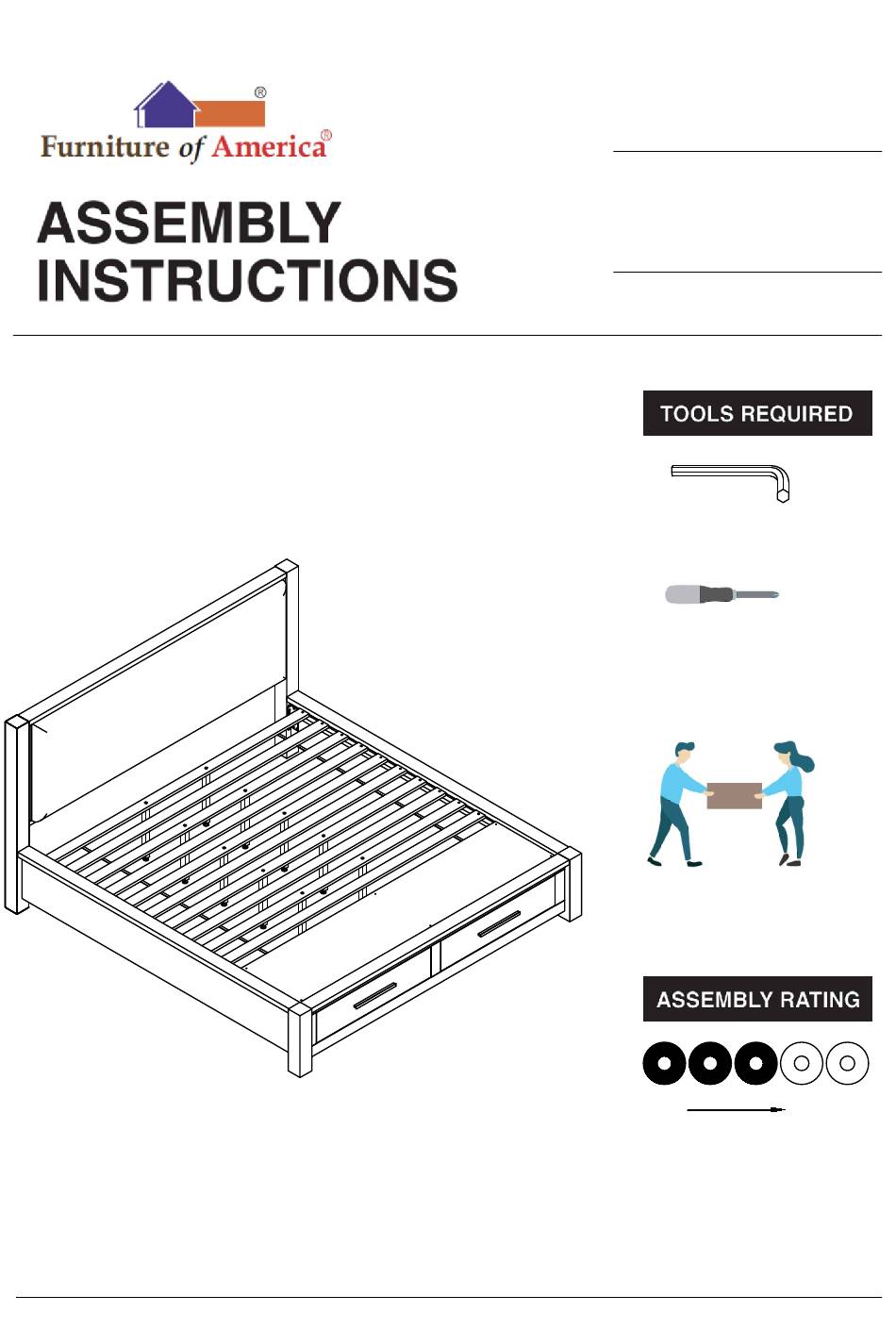

- Page 1 MODEL # FOA7881EK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 FOA7881EK #1 1pc #2 2pcs #3 1pc #4 2pcs Ø5/16" Headboard Headboard leg(L&R) Footboard Drawer support leg ( 8 5x30x30mm) #8 1pc #5 2pcs #6 10pcs #7 1 Set Ø5/16" Slat (13pcs) Conceal Panel Slat support leg Siderail (340x30x30mm) #A 6pcs...
-
Page 6: Exploded View

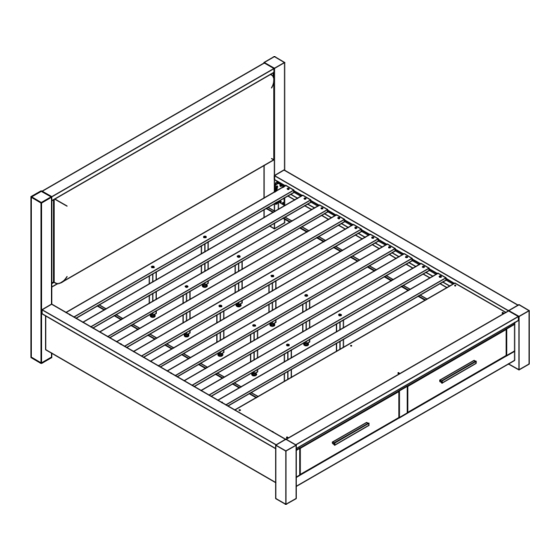

Exploded View 6 / 9... - Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x2pcs Hardware #A x6pcs Hardware #B x6pcs Hardware #C x6pcs Part #3 x1pc Attach small support legs (#4) to the Part #4 x2pcs footboard (#3).
- Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS Align side rails (#5) to the headboard (#1) and footboard (#3), then secure by using bolts (#E). Part #5 x2pcs Hardware #E x12pcs Part #6 x5pcs Part #7 x1set Attach slat support legs (#6) to the slats (#7), then adjust levelers on the slat support legs (#6) according to ground level.
- Page 9 ASSEMBLY INSTRUCTIONS Align slats (#7) to side rails (#5), then secure by using screws (#F). Hardware #F x26pcs Part #8 x1pc Align conceal panel (#8) to the slats, then Hardware #G x6pcs secure by using screws (#G). 9 / 9...
