Information About Wireless Communication - Nacon REVOLUTION 5 PRO Start Manual

EN /

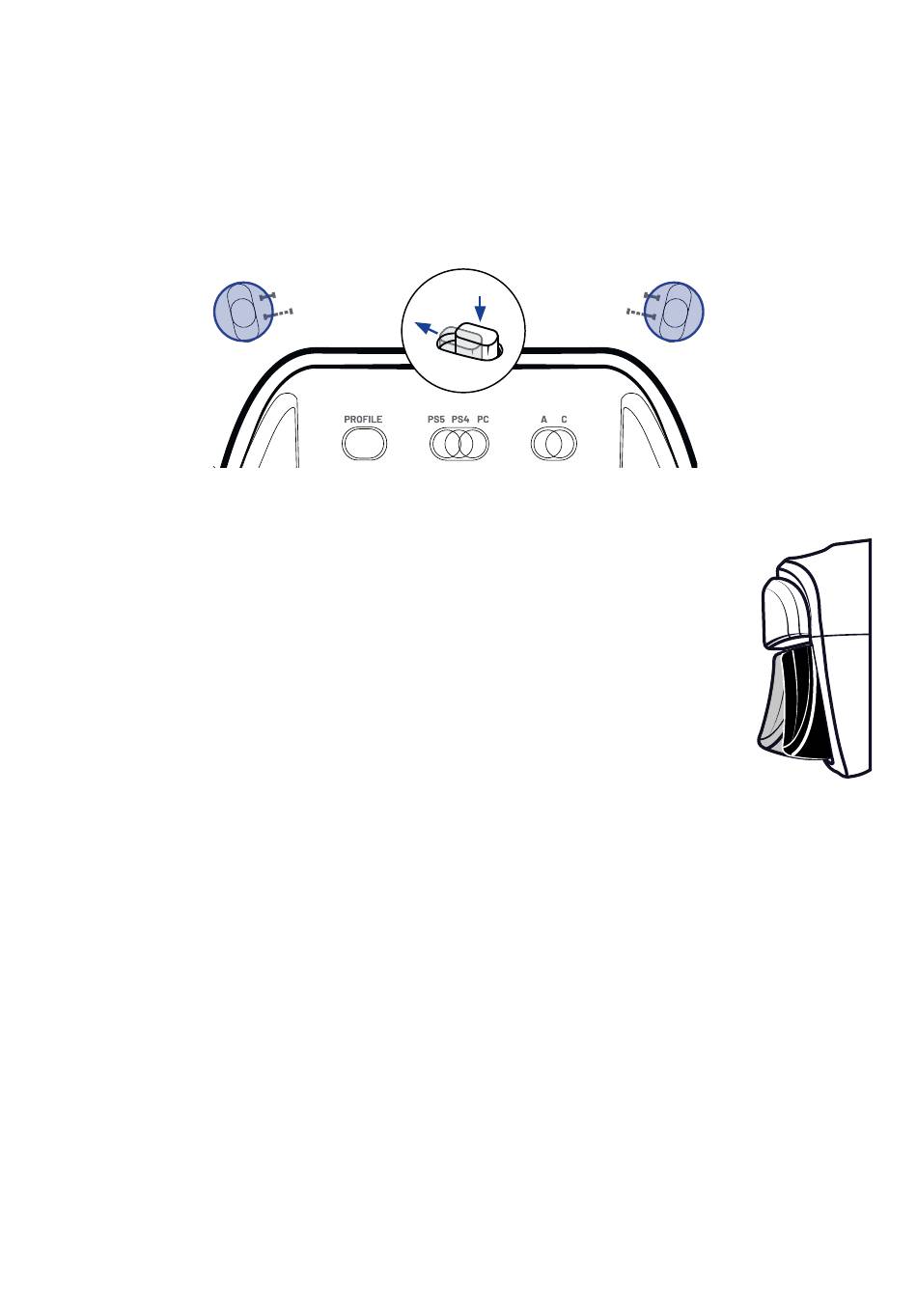

I Trigger Stopper
To activate or deactivate the trigger stopper, follow these steps:
1. Press down the button to unlock it.
2. Press and hold the button, and then slide up or down to activate/deactivate
the stopper.
I Reduced trigger data range
The trigger stopper is a completely mechanical function. You can increase
the reactivity of your triggers in two ways:
• IN CLASSIC MODE: Press and hold the Profile button. Then, fully
press on the trigger. The controller will vibrate once, to indicate that
the short range travel is selected, and will vibrate twice to indicate
that the long range travel is selected. You can, then, release the
trigger and Profile button.
• IN ADVANCED MODE: Use the application and save this setting in
one of your profiles.
I

Information about wireless communication

This controller uses 2.4GHz radio frequency range, so you may notice some issues
if other products use the same radio frequency range.
Nacon validated operability between the PlayStation
this controller.
It is recommended to insert the USB dongle into the USB port at the front of your
PlayStation
®
The controller uses Bluetooth 5.2 technology to communicate with Bluetooth
devices or other wireless headsets. In this situation, Bluetooth and RF communication
operate simultaneously without interference. It is also possible to connect the external
microphone to the 3.5mm jack port for data transmission from the microphone.
If headphones are connected to the jack, audio and microphone data will only be
transmitted via the audio jack and Bluetooth will be disabled.
If a wired headset is connected to the 3.5mm jack port, it is not possible to connect or
pair a Bluetooth
around the Right joystick, will flash Red for 5 seconds to indicate that this action is not
recognized.
If in-ear audio devices are connected to the jack port, it will not be possible to pair or connect
in-ear headphones or wireless headphones.
Short
long
5 console (CFI-1000 series).
headset or in-ear headphones to the controller. If you try, the light ring
®
Short
1
long
2
5 console (CFI-1000 series) and
®
in-ear audio
®
