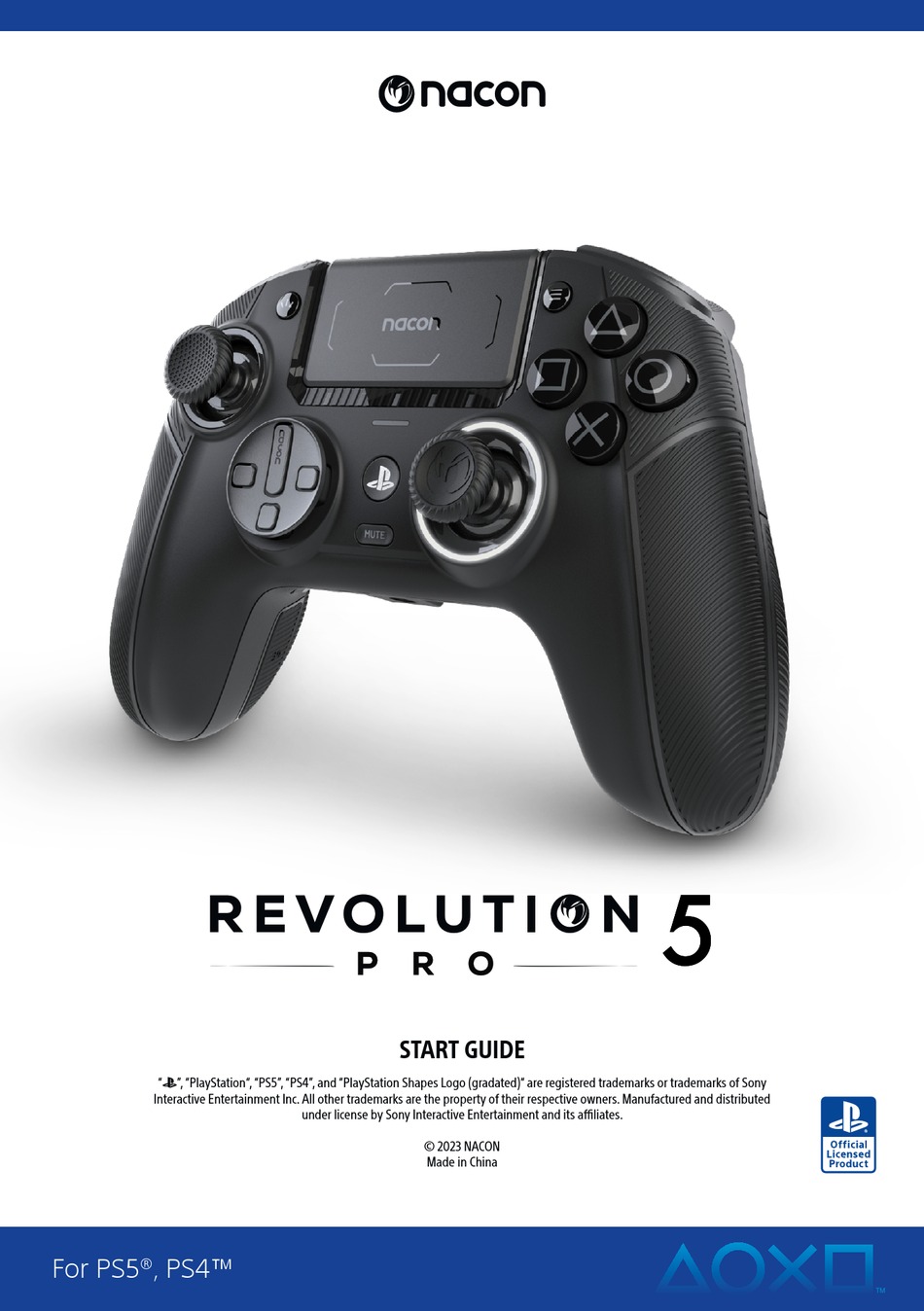

  • Page 1 “1”, “PlayStation“, “PS5”, “PS4”, and “PlayStation Shapes Logo (gradated)“ are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All other trademarks are the property of their respective owners. Manufactured and distributed under license by Sony Interactive Entertainment and its affiliates. © 2023 NACON Made in China For PS5®, PS4™...
  • Page 2 Weight: 308g approx. Consumption: 5V 500mA Please note: As we aim to continually improve your gaming experience, we are likely to publish firmware updates (also called micro-software) via the Revolution 5 Pro application. Regularly check the application for the latest updates.

  • Page 3: Controller Elements

    EN / Controller elements 1. USB-C connector 2 Touch pad 3 4x Profile LEDs (active in Advanced mode only) 4 Options button 5 Action buttons 6 Right joystick 7 Microphone Mute button 8 3.5mm Jack socket 9 D-pad 10 PS home button 11 PS4™...
  • Page 4 EN / Joysticks, D-Pad and Hand grips Customize your controller with a range of accessories: • Remove the joystick head or directional cross (as shown below): Grasp the directional cross joystick head with two fingers and pull. Hold and pull upwards •...
  • Page 5 EN / • Change the hand grip weights: To replace the weights, push and slide down the hand grip covers to remove them. Insert the desired weight and slide the cover back in position until you hear a "click".
  • Page 6 EN /...
  • Page 7 EN / Using your controller on a PlayStation 5 console ® Make sure that the format selector button is set to PS5 ® If you are playing in Wired Mode: Make sure that the Wired/Wireless mode button is in the Wired icon position (as shown above).
  • Page 8 EN / Using your controller on a PlayStation 4 console ® Make sure that the format selector button is set to PS4™. If you are playing in Wired Mode: Make sure that the Wired/Wireless mode button is in the Wired icon position (as shown above).
  • Page 9 EN / Using your controller on a PC* Make sure that the format selector button is set to PC If you are playing in Wired Mode: Make sure that the Wired/Wireless mode button is in the Wired icon position (as shown above). Using the USB-A to USB-C cable provided, connect your controller to your PC.

  • Page 10: Information About Wireless Communication

    Information about wireless communication This controller uses 2.4GHz radio frequency range, so you may notice some issues if other products use the same radio frequency range. Nacon validated operability between the PlayStation 5 console (CFI-1000 series) and ® this controller.
  • Page 11 EN / BT 5.2 AUDIO/MIC COMMUNICATION DATA WITH CONSOLE OR PC Plug-in microphone Optional Via cable Via dongle Wired headset Wireless headset Audio/Mic Audio Hall effect technology By using Hall effect technology, which is based on the use of magnetic sensors and magnets, it will prevent friction and mechanical wear on key components.
  • Page 12 - Trigger travel data range, via the trigger stopper position. - Audio control, via the touch pad. Advanced mode: Access by using the Revolution 5 Pro App and gives you the full customization experience. Download the App at https://nacongaming.com/revolution-5-pro and follow the tutorial.
  • Page 13 EN / Profile LED 3 Profile LED 1 S1 is being mapped S2 is being mapped Profile LED 3 is in: Profile LED 1 is in: White (PS5 mode) White (PS5 mode) Blue (PS4 mode) Blue (PS4 mode) Purple (PC mode), Purple (PC mode), the other LEDs are OFF.
  • Page 14 EN / Advanced mode settings via the dedicated PC application (APP) Up to 4 fully customizable profiles via the dedicated PC application available on the nacongaming.com website. The application (APP) is compatible with Windows 10, 11 and macOS. Once you’ve installed the application, you can customize your controller and have fun testing and optimizing your settings for your favorite games.

  • Page 15: Indicator Leds

    EN / Indicator LEDs 1. Profile number + Audio/Microphone settings + Mute status 2. PS5 player number + Battery level on demand (PS4™/PC ) + Battery charging in OFF mode. ® 3. System Mode (PS5 /PS4™/PC ) + Multifunction + Bluetooth pairing.
  • Page 16 EN / • In PS4™ Mode: > Classic Mode: LEDs on = microphone muted, either volume up/down or microphone gain, profile number indicator, mapping of the shortcuts. > Advanced Mode: Muted microphone, Profile number indicator. The 5 White LEDs are used to indicate battery level on request.
  • Page 17 EN / Audio control via the touch pad The sound equalizer (also called an “EQ”) is an audio filter that isolates certain frequencies and either boosts them, lowers them, or leaves them unchanged. With the multi-function button, you can use your touch pad to adjust your audio settings. While in this mode, the light-ring around the Right joystick will flash continuously in White - Blue - Purple - White - Blue - Purple until you have finished using these microphone gain and equalizer functions.
  • Page 18 ADVANCED MODE Activate/deactivate sound equalizer : To activate/deactivate the equalizer, short press on the multi-function button and use the touch pad by pressing left/right on it. To customize your own equalizer, use the Revolution 5 Pro App. Activate Deactivate equalizer...

  • Page 19: Audio Functions

    EN / Audio functions Volume control When an audio device is connected to the controller, press the Volume up button to increase the volume. Press the Volume down button to decrease it. Volume up Volume button down button Bluetooth pairing ® To pair the controller to Bluetooth true wireless earbuds or headset, follow these ®...
  • Page 20 The more features you have activated, the quicker your battery life will be used. To optimize play time you can use the Revolution 5 Pro App to disable certain features such as LED’s and vibration. *PC compatibility (Windows 10/11) neither tested nor approved by Sony Interactive Entertainment.

  • Page 21: Important Precautions

    EN / Recycling This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring that this equipment is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

  • Page 22: Technical Support

    If your product has a built-in replaceable battery, only use the type of battery supplied by Nacon/RIG. Used batteries should be removed promptly and taken to appropriate collection centres. RECYCLING: The product battery should be recycled or disposed of in the proper manner.
  • Page 23 EN / gathered as much information as possible about the problem and the product. Email: support@nacongaming.com Tel. : (+44)08081010970 Australia Email: support.us@nacongaming.com Tel. : (+61)1300512410 Europe Email: support@nacongaming.com US/Canada email (English/French) Email: support.us@nacongaming.com (Spanish) Email: soporte@nacongaming.com US/Canada Phone Support (English/French/Spanish) Tel. : 1-833-622-6687...

  • Page 24: Eu Declaration Of Conformity

    Product: REVOLUTION 5 PRO for PS5 ® Manufacturer: Nacon Nacon declares that this product is in compliance with the Union harmonisation legislation: • Directive 2014/30/EU for Electromagnetic Compatibility • Directive 2011/65/EU the restriction of the use of certain hazardous substances...

  • Page 25: Fcc Declaration Of Conformity

    FCC: Declaration of Conformity United states This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 26 MANUFACTURER / FABRICANT : NACON - 396 - 466 Rue de la Voyette, CRT2 - 59273 Fretin, France DISTRIBUTORS / DISTRIBUTEURS : SUPPORT : Bigben Interactive DEUTSCHLAND GmbH , du lundi au vendredi : FRANCE Walter Gropius Str. 28, 50126 Bergheim, 10h00-18h00 ou support.fr@nacongaming.com...
  • Page 27 Nacon. - Verkoopvergunning voor de Europese Unie, het Verenigd Koninkrijk, Australië, Nieuw-Zeeland, de Verenigde Staten en Canada. Vervaardigd door Nacon. - Autorizado para la venta en la Unión Europea, Reino Unido, Australia, Nueva Zelanda, Estados Unidos y Canadá. Fabricado por Nacon. - Autorizzato alla vendita in Unione Europea, Regno Unito, Australia, Nuova Zelanda, Stati Uniti e Canada. Prodotto da Nacon.
