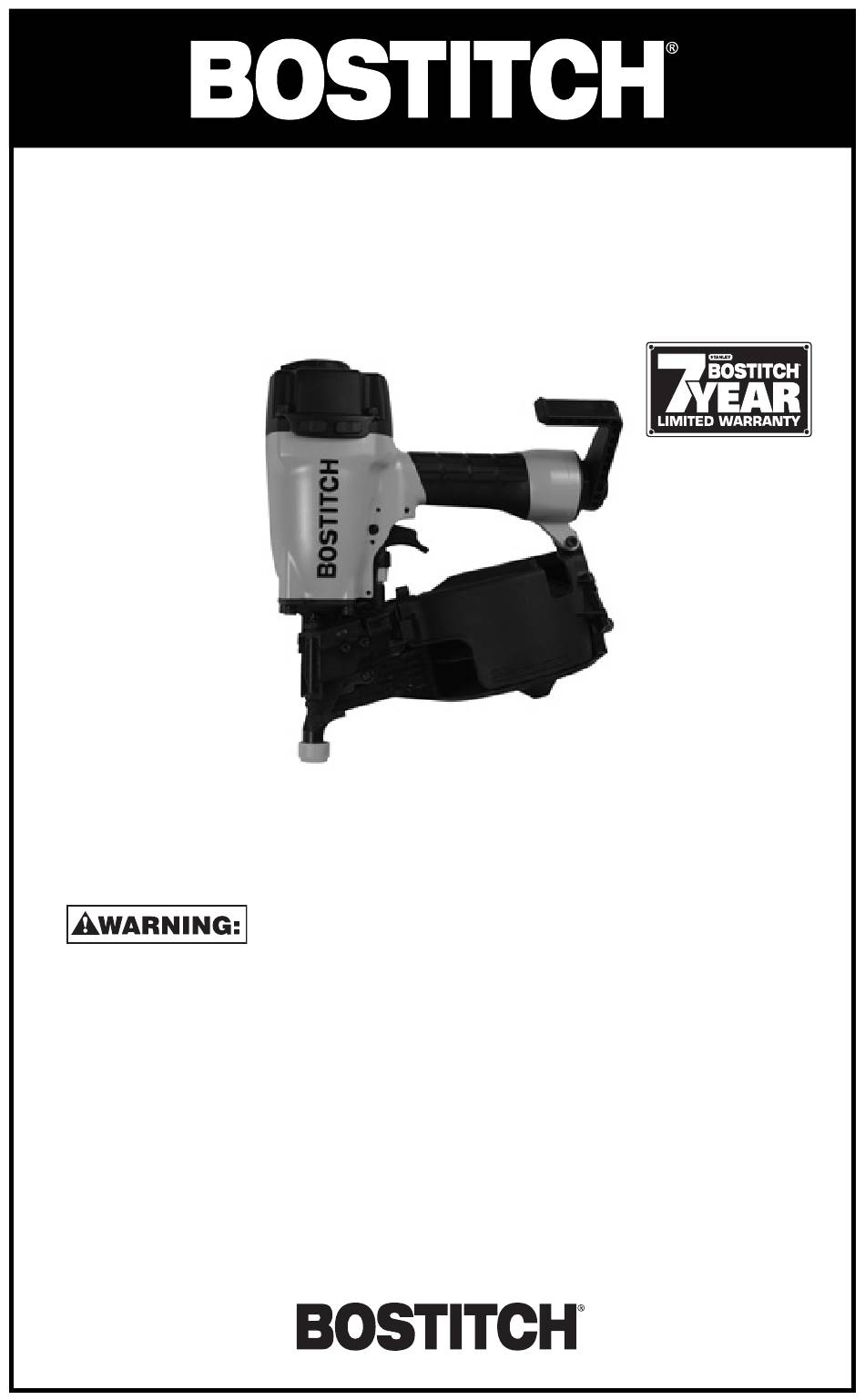

N66C
COIL-FED PNEUMATIC NAILER
OPERATION and MAINTENANCE MANUAL
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO
UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE
INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS,
CONTACT YOUR BOSTITCH REPRESENTATIVE OR DISTRIBUTOR.
160180REVF 8/07
STANLEY FASTENING SYSTEMS L.P.
Advertisement
Table of Contents
Related Manuals for Bostitch N66C
Summary of Contents for Bostitch N66C
- Page 1 BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR BOSTITCH REPRESENTATIVE OR DISTRIBUTOR. 160180REVF 8/07 STANLEY FASTENING SYSTEMS L.P.
-
Page 2: Table Of Contents
INTRODUCTION The Bostitch N66C is a precision-built tool, designed for high speed, high volume fastening. These tools will deliver efficient, dependable service when used correctly and with care. As with any fine tool, for best performance the manufacturer’s instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. -
Page 4: Tool Specifications
DO NOT EXCEED THE RECOMMENDED OPERATING PRESSURE. AIR CONSUMPTION: The N66C requires 3.3 cubic feet per minute (.093 m ) of free air to operate at the rate of 100 nails per minute, at 80 p.s.i. (5.62 kg/cm ). Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your fastener usage averages 50 nails per minute, you need 50% of the tool’s c.f.m. -
Page 5: Air Supply And Connections
Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Use BOSTITCH Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. -
Page 6: Loading The Tool
The nail heads must be in the slot in the nose. Fig. C and Fig. D NOTE: Use only nails recommended by Bostitch for N66C series nailers or nails which meet Bostitch specifications. 4. Swing cover closed: To aid in the feeding of plastic collated nails the tab on the cover should be repositioned. -
Page 7: Dial-A-Depth
MANUAL OBSERVE THE FOLLOWING FOR SAFE OPERATION • Use the BOSTITCH pneumatic tool only for the purpose for which it was designed. • Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area. -
Page 8: Tool Operation
READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL. II. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL. There are two available systems on BOSTITCH pneumatic tools. They are: 1. CONTACT TRIP OPERATION 2. SEQUENTIAL TRIP OPERATION OPERATION 1. -
Page 9: Maintaining The Pneumatic Tool
“O”-rings. Coat each “O”-ring with “O”-LUBE before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of BOSTITCH Air Tool Lubricant through the air line fitting before testing. -
Page 10: Trouble Shooting
Feed piston dry .......Add... -
Page 11: Accessories Available
ACCESSORIES AVAILABLE BC601 4 oz. Bostitch Air -Tool Lubricant BC602 1 pint Bostitch Air -Tool Lubricant BC603 1 pint Bostitch “Winter-Formula” Air-Tool Lubricant BC604 1 quart Bostitch Air -Tool Lubricant 100679 O-Ring Lube (1lb. can) 851325 Locite Grade 271 (.02 oz.) 851385 Locite Grade 242 (.02 oz.)
