Programming:

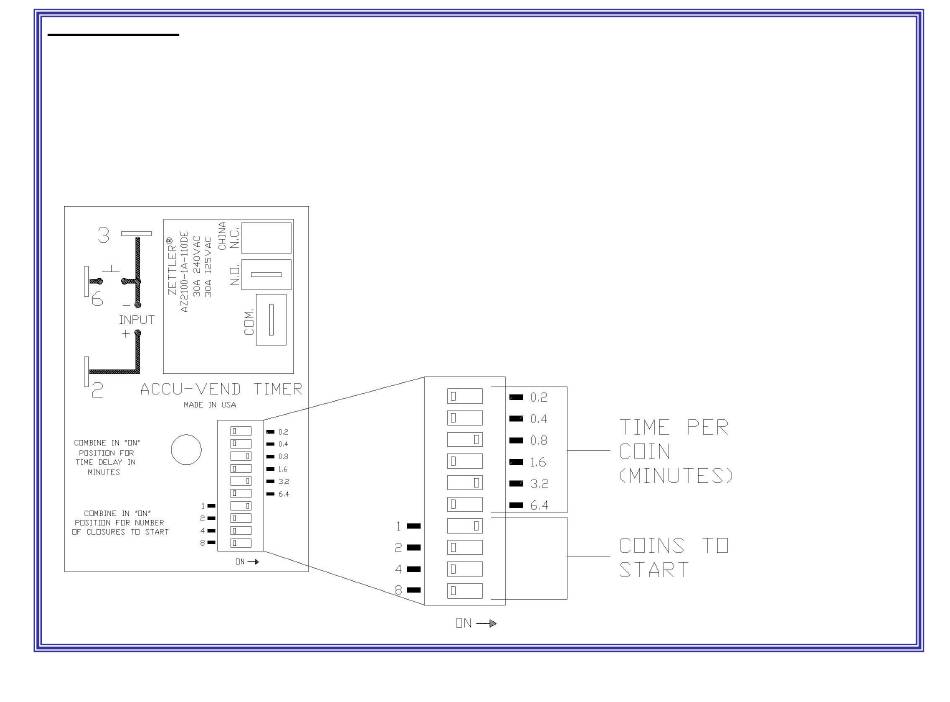

The below timer pictured is the standard SSAC model that allows the end user to select the "coins to start" and
the "time per coin" by settings series of dip switches. The number of "coins to start" dip switch is how many
quarters are needed to make the machine come on. In the below example, the "one coin" dip is selected which
makes the unit come on with one coin. The "time per coins" will then need to be set, but a good rule of thumb
would be 4 minutes which requires dip switches 3.2 and .8 to be set to on. This scenario means 1 quarter will
provide 4 minutes of vacuum time. The time per coin setting can be modified as desired by simply adding or
subtracting time. If the operator would later decide to increase the cost of the unit to "2" quarters, the 2 dip switch
would need to be in the on position (all other off) and the time dip switches would need to have the 1.6 and 0.4
dips selected. This would allow 2 minutes of time for each quarter for a total of 4 minutes for two quarters.
9
Time in minutes/per coin dip switch settings:
0.2 = 12 seconds
0.4 = 24 seconds
0.8 = 48 seconds
1.6 = 96 seconds
3.2 = 192 seconds
6.4 = 384 seconds
REV 8-22-19
