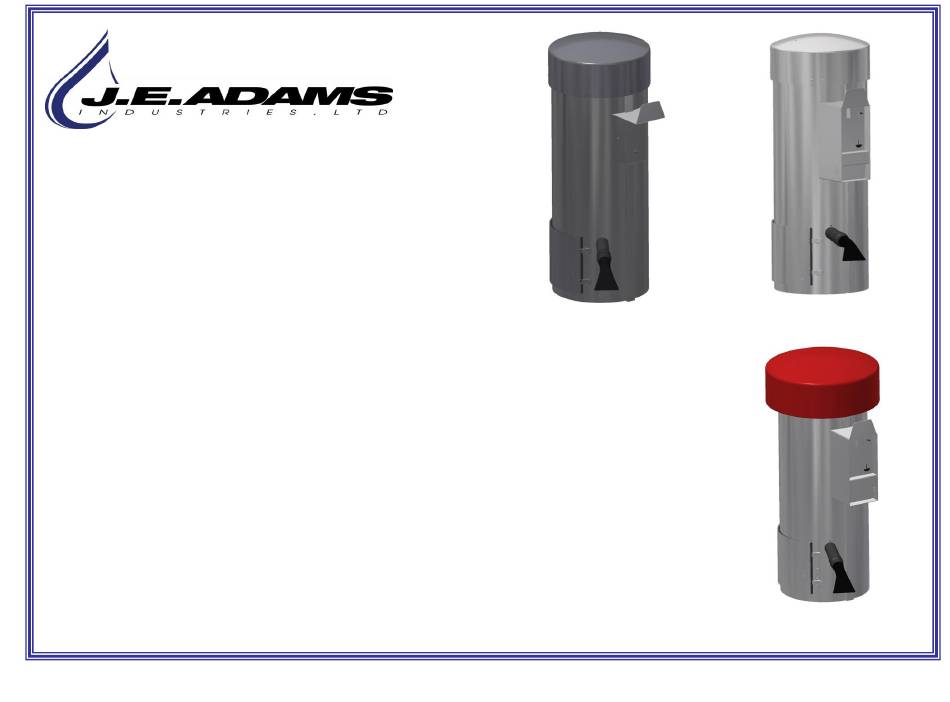

Models-
8105 Commercial, 8200, 8600 pin lock
Single Door Vacuums
Page 2
Page 3
Page 4
Page 5
Page 6-8
Page 8-9
Page 10
Page 10-11
Page 12-18
Page 19-20
1
Product Information
Specifications
Important Safety Instructions
Product Dimensions
Installation
Programming
Operating Instructions
Maintenance & Troubleshooting
Parts List
Wiring Diagram
8105
8200
8600LD
REV 8-22-19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for J.E. Adams 8200
Summary of Contents for J.E. Adams 8200
- Page 1 Models- 8105 Commercial, 8200, 8600 pin lock Single Door Vacuums Page 2 Product Information 8105 8200 Page 3 Specifications Page 4 Important Safety Instructions Page 5 Product Dimensions Page 6-8 Installation Page 8-9 Programming Page 10 Operating Instructions Page 10-11 Maintenance &...
-
Page 2: Product Information
There may be more than one key number depending on unit. Please keep this information with your records. MODEL#:____________________________ SERIAL#:____________________________ KEY NUMBER(S):_____________________ DATE PURCHASED:___________________ DISTRIBUTOR:_______________________ J.E. Adams Industries 1025 63rd Ave. S.W. Cedar Rapids, IA 52404 1-800-553-8861 www.jeadams.com REV 8-22-19... -
Page 3: Specifications
Specifications Unit specifications: (All 2 vacuum motor units) Voltage: 120VAC, 60Hz Amperage: (1) 20 amp service is required for this unit Weight: 137-147 lbs Motors: (2) 120VAC vacuum motor Fuses: (2) 10 amp inline fuses __________________________________________________________________________________________ 220VAC units: Unit specifications: (All 2 vacuum motor units) Voltage: 220VAC, 50Hz Amperage:... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE) WARNING – To reduce the risk of fire, electric shock, or injury: • Do not use on wet surfaces. •... -
Page 5: Product Dimensions
Product Dimensions 8600LD REV 8-22-19... -
Page 6: Installation
Installation: Drill holes into concrete surface and install 3/8" studs (4). Bring electrical in underneath can and route up front NOTE: when mounting, provide clearance channel to so cleanout door can open!! terminal strip. REV 8-22-19... - Page 7 Remove screw from uppermost point of timer plate and tilt/ flip down as shown below. With timer plate flipped down as shown, add incoming power "line and neutral" to terminal strip. (120V) Bring electrical in underneath can and route up front channel to terminal strip.
-
Page 8: Programming Instructions
Once unit has been installed use 5871B8 cap plugs (supplied with unit) to seal holes To attach hose, thread in canister bottom located in lower cleanout door. Extra cap plugs are included with into metal hole the unit in case plug becomes damaged during shipping removal. counter clockwise. - Page 9 Programming: The below timer pictured is the standard SSAC model that allows the end user to select the "coins to start" and the "time per coin" by settings series of dip switches. The number of "coins to start" dip switch is how many quarters are needed to make the machine come on.
-
Page 10: Troubleshooting
Operating Instructions: • Insert payment to start vacuum. • Once service is used, hang up hose. • Commercial vacuum requires no payment, simply flip toggle switch to on to start. Maintenance: • All servicing of machine should be conducted by an authorized service representative! •... - Page 11 Unit keeps tripping Inadequate wire size ran to machine. Call electrician and install proper wire size for breaker. electrical service versus length or run. Wrong size breaker. Install correct breaker (only if wire size is adequate to handle breaker). Fuses for vac motors keep Inadequate wire size ran to machine.
- Page 12 REV 8-22-19...
- Page 13 REV 8-22-19...
- Page 14 REV 8-22-19...
- Page 15 REV 8-22-19...
- Page 16 REV 8-22-19...
- Page 17 REV 8-22-19...
- Page 18 REV 8-22-19...
- Page 19 REV 8-22-19...
- Page 20 Model 8105, Toggle Switch option REV 8-22-19...
