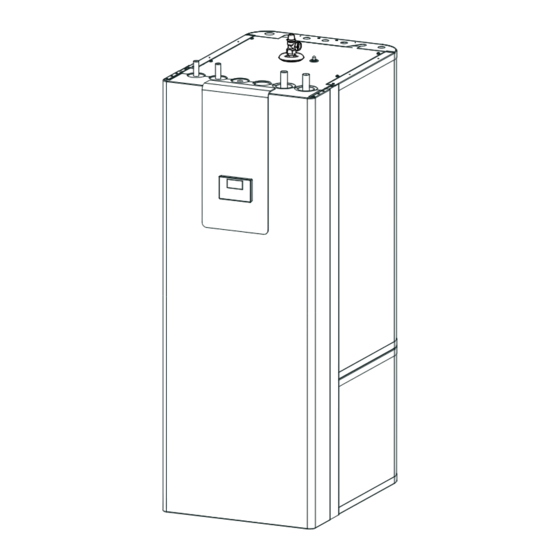

- Page 1 OPERATION AND INSTALLATION Integral tank » HSBC 300 Integral...
-
Page 2: Table Of Contents
Appliance handover ________________________________________ 21 Shutting down the system ________________________________ 21 Maintenance ________________________________________________ 21 Specification ________________________________________________ 22 17.1 Dimensions and connections _________________________________ 22 17.2 Hydraulic diagram ______________________________________________ 24 17.3 Wiring diagram _________________________________________________ 26 17.4 Sample installation _____________________________________________ 29 | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 3: Special Information
- The safety valve drain aperture must remain WARNING Failure to observe this information may result in serious injury or death. open to atmosphere. CAUTION Failure to observe this information may result in non-seri- ous or minor injury. www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 4: Other Symbols In This Documentation
The DHW tank is under supply pressure. During the heat- up process, expansion water will drip from the safety valve. If water continues to drip when heating is complet- ed, please inform your qualified contractor. Test symbols See type plate on the appliance. | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 5: Appliance Compatibility
Please observe the instructions for the heat pump manager. Cleaning, care and maintenance Have the electrical safety of the appliance and the function of the safety assembly regularly checked by a qualified contractor. www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 6: Installation
- Temperature sensor for cooling - FET remote control for heating & cooling operation The minimum side clearances can be swapped between left and right. - STB-FB high limit safety cut-out for underfloor heating systems | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 7: Transport And Handling
However, it will not be possible to operate the appliance via the pro- gramming unit. Remove the earth cable from the front casing. Fitting the front casing Fit the front casing in reverse order. www.stiebel-eltron-usa.com HSBC 300 Integral |... - Page 8 To open the 3 fixing tabs, loosen the fastening screws slightly but do not unscrew them completely. Pull the "heating sensor" out of the buffer tank. Release the sensor lead from the guide groove in the insula- tion segment. | HSBC 300 Integral www.stiebel-eltron-usa.com...
- Page 9 Remove insulation segment 3. 1 Handle Tip the upper section of the appliance backwards. Use the handle for improved grip. Undo the 2 locking screws on the side profile strips. Lift up and unhook the side profile strips. www.stiebel-eltron-usa.com HSBC 300 Integral |...
- Page 10 Lay the sensor lead in the guide groove provided for this pur- pose in the insulation segment. Fit insulation segment 2. Fit insulation segment 1. Fit the front casing. 1 Handle 2 Guide pin 3 Dotted line (perforation in the panel) 4 Guide groove 5 Positioning aid | HSBC 300 Integral www.stiebel-eltron-usa.com...
-
Page 11: Positioning The Appliance
12 ft 9 in 3 Temperature sensor (10 m) and a pipe diameter of 1 inch. 4 Heating circuit pump (*) 5 3-way mixer (*) 6 Insulation mat for 3-way mixer www.stiebel-eltron-usa.com HSBC 300 Integral |... - Page 12 Install the servomotor for the 3-way mixer. 0.75-1.5 ft lb (1-2 Nm) Material losses To prevent condensation from forming, do not lay any cables in the joint grooves of the EPP parts. Check the position of the 3-way mixer shaft. | HSBC 300 Integral www.stiebel-eltron-usa.com...
-
Page 13: Dhw Connection And Safety Assembly
Use the retainer as a drilling template and pre-drill the fixing holes. DHW line, DHW circulation line Secure the retainer with the screws. Stainless steel, copper and plastic are approved materials. 10.3.1 DHW connection and safety assembly Flush the pipes thoroughly. www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 14: Filling The System
"Specification / Data table" must always be observed. Check the safety valve. Recheck these limits 8-12 weeks after commissioning and during the annual system service. Note With a conductivity >1000 μS/cm, desalination treatment is recommended in order to avoid corrosion. | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 15: Venting The Appliance
Leakage currents of up to 5 mA may occur. The terminal box of the appliance is located behind the front casing (see chapter "Preparations / Transport and handling / Removing/ fitting the front casing"). Terminal Control voltage XD03.1 Power supply L1, L2, GND www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 16: Safety Extra Low Voltage
Heating circuit pump 2 X2.5 Heating circuit pump 3 X2.6 Buffer charging pump 1 Safety extra low voltage X1.1 CAN (connection for heat pump and WPE heat X2.7 Buffer charging pump 2 CAN A pump extension) | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 17: Accessories
AA01-X2.4 green/yellow brown blue AA01-X2.14 black Insert the temperature sensor into the sensor well "Sensor heat pump cooling, optional". Terminal Safety extra low voltage AA01-X1.6 BT13 Temperature sensor, heat pump flow, heating circuit 2 www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 18: Remote Control
With this setting the primary pump is also active in DHW mode. Requirement: The heat pump manager has recognized the heat pump. Open the menu and enter the code. Parameter Code VIEW (SETTINGS) 1 0 0 0 | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 19: Appliance Handover
Explain the appliance function to users and familiarize them Note with how it works. After venting, the LED indicator displays the previously set pump values. Make users aware of potential dangers. Hand over these instructions. www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 20: Shutting Down The System
Empty the DHW tank via the cold water inlet connection. Cleaning and descaling the DHW tank Material losses Never use descaling pumps or descaling agents to clean the tank. Clean the appliance through the inspection flange. | HSBC 300 Integral www.stiebel-eltron-usa.com... -
Page 21: Specification
DHW outlet Male thread G 1˝ DHW circulation Male thread G ½˝ T&P valve Heat pump flow Diameter 1˝ copper Heat pump return Diameter 1˝ copper Heating flow Diameter ¾˝ copper Heating return Diameter ¾˝ copper www.stiebel-eltron-usa.com HSBC 300 Integral |... - Page 22 5½˝ (140 mm) Cold water inlet Diameter ¾˝ copper Torque ft·lb (45 Nm) DHW outlet Diameter ¾˝ copper Protective anode Female thread ˝ DHW circulation Diameter ⅜˝ copper 17.1.1 Accessories HSBC 3-HKM Integral (393) (293) (771) | HSBC 300 Integral www.stiebel-eltron-usa.com...
-
Page 23: Hydraulic Diagram
15 Discharge pipe (D1) from T&P valve 16 Expansion vessel 17 Expansion relief valve Material losses The tundish should be installed away from electrical de- vices. Note If secondary return circuits are used then an additional expansion vessel may be required. www.stiebel-eltron-usa.com HSBC 300 Integral |... -
Page 24: Wiring Diagram
INSTALLATION 17.3 Wiring diagram Control voltage XD03.1 XE01 L1’ L2 GND GNYE BU (com.) Top cover BN (PWM IN) MA14 L1‘ Front cover GNYE BU BN GNYE BU BN MA10 MA11 KF 17 MA19 MA15 | HSBC 300 Integral www.stiebel-eltron-usa.com... - Page 25 INSTALLATION BT06 BT13 BT20 BN (PWM IN) BU (com.) 1 = H AA06 2 = L 4 = +12V AA01 (WPM) www.stiebel-eltron-usa.com HSBC 300 Integral |...
- Page 26 Connector, DHW charging pump AA01 X2.9 Connector, source pump/defrost AA01 X2.10 Connector, fault output AA01 X2.11 Connector, DHW circulation pump / 2nd heat source – DHW AA01 X2.12 Connector, 2nd heat source – heating AA01 X2.13 Connector, cooling | HSBC 300 Integral www.stiebel-eltron-usa.com...
-
Page 27: Sample Installation
Max. permissible pressure (design pressure), buffer 43.5 psi (0.3 MPa) Expansion vessel, DHW - volume 3.2 gal (12 l) tank Versions Test pressure, buffer tank 65.3 psi (0.45 MPa) IP rating IP20 Maximum permissible temperature 192 °F (89 °C) www.stiebel-eltron-usa.com HSBC 300 Integral |... - Page 28 ¾˝ copper pipe DHW connection ¾˝ copper pipe Connection, DHW circulation ⅜˝ copper pipe Versions Suitable for HSBC 300 Integral Pump assembly HSBC 3-HKM Integral HSBC 3-HKM Integral 203799 Connections Connection, heating circuit ¾˝ copper pipe | HSBC 300 Integral www.stiebel-eltron-usa.com...
- Page 29 NOTES www.stiebel-eltron-usa.com HSBC 300 Integral |...
- Page 30 NOTES | HSBC 300 Integral www.stiebel-eltron-usa.com...
- Page 31 State to State or Province to Province. This Warranty is valid for U.S.A. & Canada only. Warranties may vary by country. Please consult your local Stiebel Eltron Representative for the Warranty for your country. www.stiebel-eltron-usa.com...
- Page 32 Kapinakuja 1 | 04600 Mäntsälä Poland United Kingdom and Ireland Tel. 020 720-9988 | Fax 020 720-9989 STIEBEL ELTRON Polska Sp. z o.o. ul. STIEBEL ELTRON UK Ltd. info@stiebel-eltron.fi Instalatorów 9 | 02-237 Warszawa Tel. 022 Unit 12 Stadium Court www.stiebel-eltron.fi...
