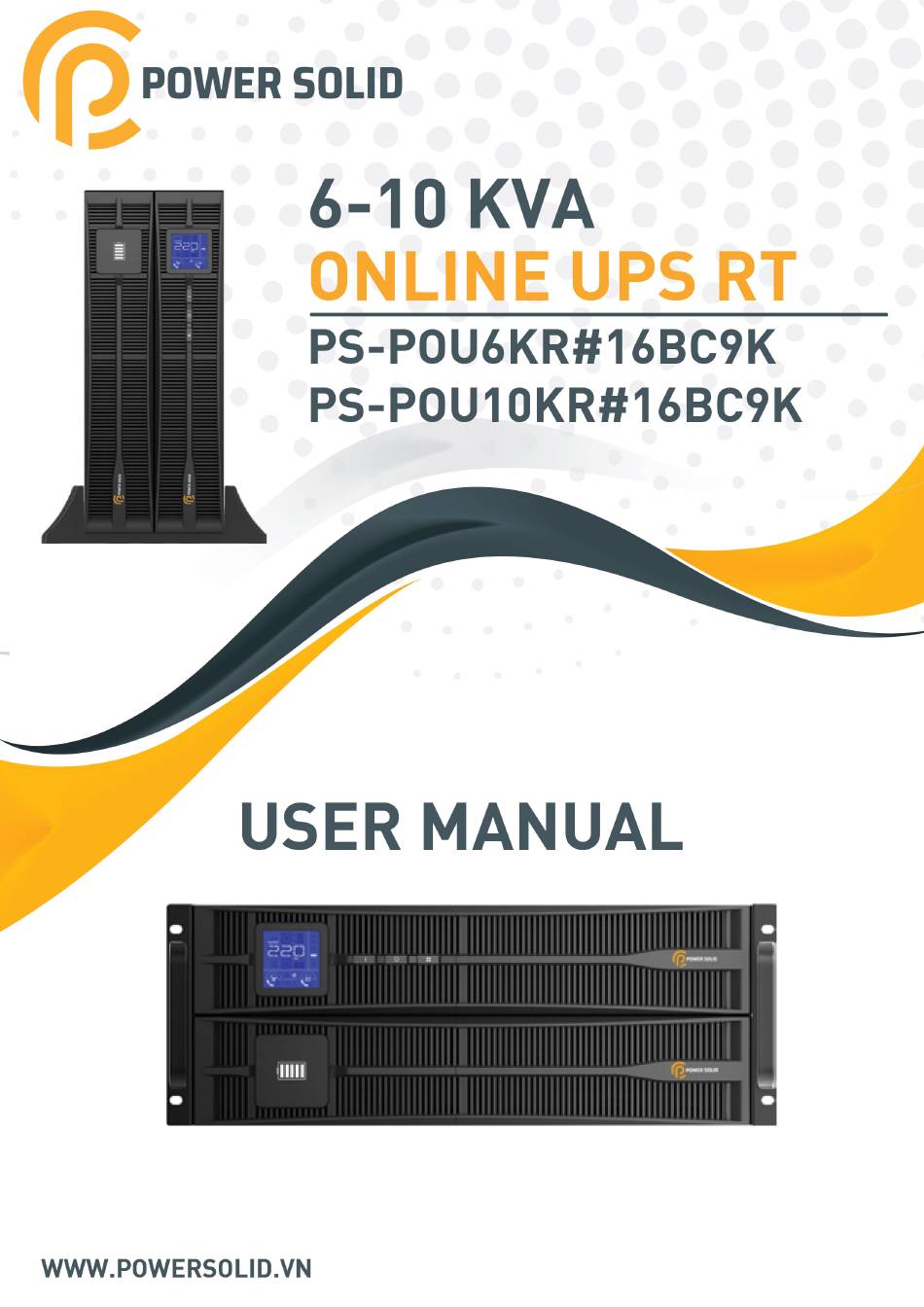

Power Solid PS-POU6KR#16BC9K User Manual

6-10 kva online ups rt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-POU6KR#16BC9K and is the answer not in the manual?

Questions and answers

Related Manuals for Power Solid PS-POU6KR#16BC9K

Summary of Contents for Power Solid PS-POU6KR#16BC9K

  • Page 3 (6kVA-10kVA) UPS User Manual Foreword Foreword Summaries Thank you for choosing the uninterruptible power system(hereinafter referred to as "UPS")! This document gives a description of the (6kVA-10kVA) UPS, including the features, performance, appearance, structure, working principles, installation, operation, maintenance, transportation and storage, etc.
  • Page 4 (6kVA-10kVA) UPS Foreword User Manual Symbol Description Provides a tip that may help you solve a problem or save time. Provides additional information to emphasize or supplement important points in the main text. Product standard: Q/ZZKJ 001...

  • Page 5: Table Of Contents

    (6kVA-10kVA) UPS User Manual Contents Contents 1 Safety Description......................... 1 1.2 Safety Announcements ............................. 1 1.2.1 Use Announcements ..........................1 1.2.2 Battery Announcements .......................... 2 1.3 Operation and Maintenance Requirements ...................... 3 1.4 Working Environment Requirements ....................... 3 2 Overview ............................5 2.2 Product Intro..............................
  • Page 6 (6kVA-10kVA) UPS Contents User Manual 4.1 Check Before Startup ............................. 21 4.2 Startup Operation ............................21 4.3 Shutdown Operation ............................22 4.4 Periodic Preventative Maintenance ........................ 22 4.5 Battery Maintenance ............................22 4.6 Replacing Battery Announcements ......................23 4.7 Troubleshooting .............................. 24 A Technical Specifications ......................

  • Page 7: Safety Description

    (6kVA-10kVA) UPS User Manual 1Safety Description 1 Safety Description This chapter mainly describes the safety announcements. Prior to performing any work on the UPS, please read the user manual carefully, follow the operation and installation instructions and observe all danger, warning and safety information, which is to avoid human injury and device damage by irregular operations.

  • Page 8: Battery Announcements

    (6kVA-10kVA) UPS 1Safety Description User Manual No liquid or other object is allowed into the UPS. The UPS is a class A product. When it is applied to residential building, additional measures should be taken to prevent wireless interference. Do not connect unbalance load, half-wave rectification load or inductive load to the output of the UPS, such as air-condition, blower, starter, electric drill, motor, daylight lamp, etc.

  • Page 9: Operation And Maintenance Requirements

    (6kVA-10kVA) UPS User Manual 1Safety Description  Don't put tools or other conductive objects on the battery.  It's prohibited to connect the anode with the cathode of battery or connect them reversely, which is to avoid fire or electric shock. ...
  • Page 10 (6kVA-10kVA) UPS 1Safety Description User Manual  Generally, the working temperature of the UPS is -5℃～+40℃ and the relative humidity is 0%RH～95%RH with no condensation(The recommended working temperature is 20℃~25℃ and the recommended relative humidity is about 50%).  Put the UPS in the flat floor without vibration and the vertical gradient is less than 5°. Keep good ventilation around the UPS.

  • Page 11: Overview

    (6kVA-10kVA) UPS User Manual 2Overview 2 Overview This chapter mainly describes the model meaning, features, structure and working principle, etc. 2.2 Product Intro The (6kVA-10kVA) UPS are with all high frequency, pure online, double-conversion, intelligent features. They are the perfect power security for file server, enterprise server, center server, micro-computer, concentrator, telecom system, data center and others that require high quality power protection.

  • Page 12: Appearance And Structure

    (6kVA-10kVA) UPS 2Overview User Manual Perfect protection With the protection for output over-voltage, battery under-voltage, input over-voltage triple over-current, etc. and solved the problems of bad adaptability for power grid and weak shock resistance. Low mains input voltage Adopt the independent rapid detection technology. When the mains input voltage is 120V, which is the lower limit, the battery still doesn't discharge.
  • Page 13 (6kVA-10kVA) UPS User Manual 2Overview Table2-1 The illustration of operation panel Icon Name Illustration Shows the working status, battery backup capacity and fault ○ alarm, alarm.  When UPS off, long press " " button for 1s, the UPS starts. ...

  • Page 14: Rear Panel

    (6kVA-10kVA) UPS 2Overview User Manual The illustration for the LCD panel is as shown in Table2-2. Table2-2 The illustration of LCD panel Name Illustration Running status Shows the input, output, temperature, fault type and setting, etc. of the ○ display area UPS.

  • Page 15: Communication

    (6kVA-10kVA) UPS User Manual 2Overview 2.4 Communication The (6kVA-10kVA) UPS adopt RS232 series port to communicate with PC. The corresponding pin relationship of RS232 port between UPS and PC is as shown in Table2-3. Table2-3 The corresponding pin relationship of RS232 port between of UPS and PC RS232 port of UPS RS232 port of PC 9 (3)

  • Page 16: Installation

    (6kVA-10kVA) UPS 3Installation User Manual 3 Installation This chapter mainly describes the UPS installation, including unpacking and checking, installation preparation, electrical connection, etc. 3.2 Unpacking and Checking Unpacking the UPS and check the following items:  Inspect the UPS appearance and check if there is any shipping damage, if any damage is found, report it to the carrier immediately.

  • Page 17: Install Ups

    (6kVA-10kVA) UPS User Manual 3Installation times of the max. input current of UPS. Besides, the selected breaker cannot with the leakage protection to avoid mis-operation. The distribution box is better to be made by the professional company. The selection of input breaker refers to Table3-2. Table3-2 Recommended input breaker specification 6kVA 10kVA...
  • Page 18 (6kVA-10kVA) UPS 3Installation User Manual Step 2 Install the plastic panel. Step 3 Fasten the two angle irons onto the two sides of the UPS by 6sunk screws.
  • Page 19 (6kVA-10kVA) UPS User Manual 3Installation Step 4 Push the UPS into the cabinet, and fasten it by screws. ① ② ② --End Tower-mounting Single UPS installation Step 1 Take out a pair of support base and 1U joint base, assemble them together, and lay them flat for the UPS tower base.

  • Page 20: Battery Replacement

    (6kVA-10kVA) UPS 3Installation User Manual Step 2 Fix the assembled support base on UPS by screws. Step 3 Put the UPS onto the assembled support base. Support base ----End 3.4.2 Battery Replacement The battery of (6-10kVA) UPS is hot-pluggable.
  • Page 21 (6kVA-10kVA) UPS User Manual 3Installation Step 1 Dismantle the two angle irons. Step 2 Dismantle the plastic panel.
  • Page 22 (6kVA-10kVA) UPS 3Installation User Manual Step 3 Unplug the battery wire. Step 4 Dismantle the battery baffle. Step 5 Pull out the battery pack.
  • Page 23 (6kVA-10kVA) UPS User Manual 3Installation Step 6 Replace the battery pack and push the new battery pack into UPS. Step 7 Install the battery baffle and fasten the bolts firmly. Step 8 Plug the battery wire.
  • Page 24 (6kVA-10kVA) UPS 3Installation User Manual Step 9 Install the plastic panel. Step 10 Fasten the two angle irons onto the two sides of the UPS by 6sunk screws. ----End...

  • Page 25: Electrical Connection

    (6kVA-10kVA) UPS User Manual 3Installation 3.5 Electrical Connection The UPS is the rack DC power supply unit for 19inch cabinet, the battery is connected to the UPS via battery port. Ensure all the breakers that connect with the UPS are disconnected and after the UPS installed properly, the electrical connection can be done.
  • Page 26 (6kVA-10kVA) UPS 3Installation User Manual  Mains socket should be near by the UPS and easy to operate.  For long backup model, connect the UPS with mains first and then insert the battery expansion wire.  Generally, the load current of each output socket should be not more than 10A.

  • Page 27: Operation And Maintenance

    (6kVA-10kVA) UPS User Manual 4Operation and Maintenance 4 Operation and Maintenance This chapter mainly describes the operation process, operation method, daily maintenance and troubleshooting, etc. 4.1 Check Before Startup  Check if the wire connection is firm and the color of AC wires is in accordance with the specification.

  • Page 28: Shutdown Operation

    (6kVA-10kVA) UPS 4Operation and Maintenance User Manual Start load according to "high power device→small power device", which is to avoid overload protection when starting high power device. ----End 4.3 Shutdown Operation Step 1 Close load and keep the UPS running without load for about10min to exhaust heat. Step 2 Press "...

  • Page 29: Replacing Battery Announcements

    (6kVA-10kVA) UPS User Manual 4Operation and Maintenance − When using battery for the first time, start UPS to charge battery for ten hours. During charging, you still can use UPS. If UPS and battery are power down simultaneously, the discharging time of battery may be lower than standard this time. −...

  • Page 30: Troubleshooting

    (6kVA-10kVA) UPS 4Operation and Maintenance User Manual 4.7 Troubleshooting As shown inTable4-1, it only includes some common fault diagnosis. If any doubt, contact the local office or distributor for details. Table4-1 Troubleshooting Fault phenomenon Possible reason 1. Check if the contactors and sockets in the input circuit are in good condition;...
  • Page 31 (6kVA-10kVA) UPS User Manual 4Operation and Maintenance Fault phenomenon Possible reason 1. Battery aging, the battery capacity loss. please replace Usually, UPS works normally. battery. When power failure, it doesn't transfer to battery mode or it 2. Battery charger fault. At ordinary time, the battery transfers to battery mode and cannot be charged.
  • Page 32 (6kVA-10kVA) UPS 4Operation and Maintenance User Manual Fault symbol Buzzer status Meaning Load energy bars Rapid beep (Alarm Output overload alarm. The output is going to “25% ～ 100%, once about every 0.5s) close, please reduce load. overload”all flicker Load energy bars Output overload protection, the output has been...

  • Page 33: A Technical Specifications

    (6kVA-10kVA) UPS User Manual A Technical Specifications Technical Specifications A.1 6kVA,10kVA Model 6kVA 10kVA Index When the voltage within the range of 176Vac～275Vac, the UPS can bear 100% full load; Voltage range(V) When the voltage within the range of80Vac~176Vac, the load carrying capacity linear decreases according to the input voltage amplitude.
  • Page 34 (6kVA-10kVA) UPS A Technical Specifications User Manual Model 6kVA 10kVA Index 6900VA/6210W＜ 11500VA/10350W＜ overload Load≤7800VA/7020W Load≤13000VA/11700W for10min ＜ ＜ 7800VA/7020W 13000VA/11700W Medium Load≤9000VA/8100W Load≤15000VA/13500W overloadfor30s Heavy overload for Load＞9000VA/8100W Load＞15000VA/13500W 500ms Size(W×D×H) (mm) 438× 660× 173 Weight(kg) For long backup For long backup model, it can be 5~20min(full...
  • Page 35 (6kVA-10kVA) UPS User Manual A Technical Specifications  Specifications are subject to change without prior notice.

  • Page 36: B Acronyms And Abbreviations

    Acronyms and Abbreviations Alternating Current Direct Current Energy Control Operation Emergency Power Off Liquid Crystal Display Recommend Standard232 RS232 RS485 Recommend Standard485 SNMP Simple Network Management Protocol...
  • Page 37 (6kVA-10kVA) UPS User Manual B Acronyms and Abbreviations Uninterruptible Power System...

This manual is also suitable for:

Ps-pou10kr#16bc9k
