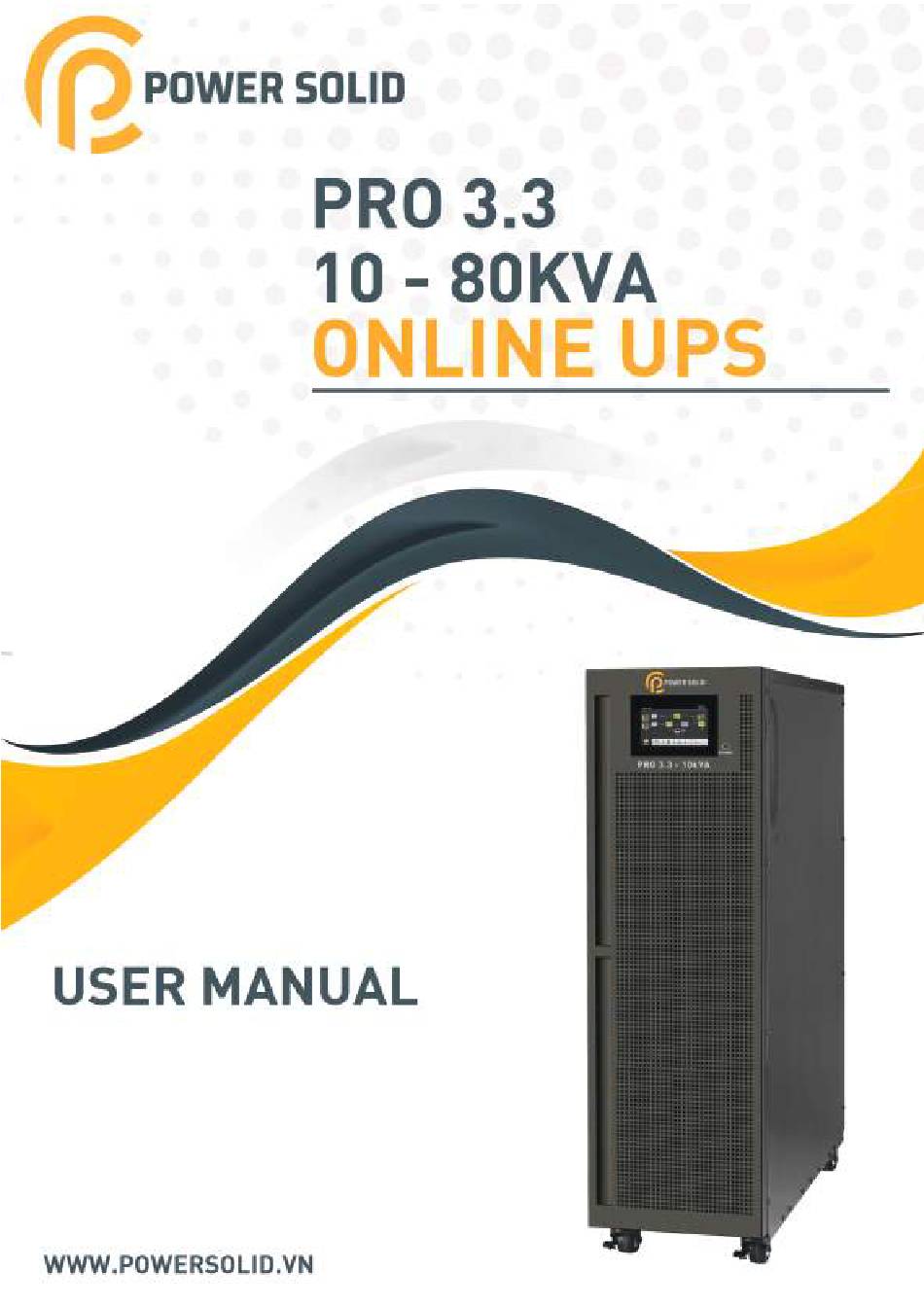

  • Page 3 PRO 3.3 10KVA / 20KVA / 30KVA/ 40KVA / 60KVA, 80KVA PRO 3.3 10KVA / 20KVA / 30KVA/ 40KVA / 60KVA, 80KVA DUAL PF= 1 ON-LINE Uninterruptible Power Supply USER MANUAL...
  • Page 4 Please comply with all warnings and operating instructions in this manual. This equipment should only installed, serviced, maintained by qualified personnel. Do not operate this unit before reading through all safety information and operating instructions carefully. Disclaimer We assumes no responsibility or liability for loss or damages, whether direct, indirect, consequential or incidental, which might arise out of the use of such information.
  • Page 5 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that you should follow during installation and maintenance of the UPS and batteries. Please read all instructions before operating the equipment and save this manual for future reference. DANGER The UPS contains LETHAL VOLTAGES. All repairs and service should be performed by AUTHORIZED SERVICE PERSONNEL ONLY .
  • Page 6 • Symbol Conventions • The symbols that may be found in this document are defined as follows. Symbol Description Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 7: Table Of Contents

    Table of Contents 1. Safety and EMC instructions ..................1 1-1. Transportation and Storage ..................1 1-2. Preparation ......................1 1-3. Installation ........................ 1 1-4. Connection Warnings ..................2 1-5. Operation ......................... 3 1-6. Standards ........................ 3 2. Installation and Operating .................... 4 2.1.

  • Page 9: Safety And Emc Instructions

    1. Safety and EMC instructions All safety instructions in this document must be read, understood and followed. 1-1. Transportation and Storage Please transport the UPS system only in the original packaging to protect against shock and damage. The UPS must be stored in the room where the temperature is well regulated.

  • Page 10: Connection Warnings

    Installation and Wiring must be performed in accordance with the local electrical laws and regulations 1-4. Connection Warnings  There is no standard backfeed protection inside of the UPS. However, there are relays on the Input to cut off line voltage and while the neutral is still connect to UPS.

  • Page 11: Operation

    Before working on this circuit Isolate Uninterruptible Power System (UPS) Then check for Hazardous Voltage between all terminals including the protective earth. Risk of Voltage Backfeed 1-5. Operation Do not disconnect the grounding/earthing conductor cable on the UPS or the building wiring terminals under any circumstance. The UPS system features its own, internal current source (batteries).

  • Page 12: Installation And Operating

    2. Installation and Operation These series came with VAC systems: 400V. Please refer to the following table. Model System PRO 10KVA PRO 10KVA DUAL PRO 20KVA PRO 20KVA DUAL PRO 30KVA PRO 30KVA DUAL 400VAC PRO 40KVA PRO 40KVA DUAL PRO 60KVA PRO 60KVA DUAL PRO 80KVA...

  • Page 13: Rear Panel, Wiring Terminal View

    2-2. Rear Panel, Wiring Terminal View Diagram 1: PRO 10KVA / 20KVA Diagram 2: PRO 10KVA / 20KVA Rear Panel DUAL Rear Panel Diagram 3: PRO 10KVA / 20KVA Diagram 4: PRO 10KVA / 20KVA DUAL Input/Output Terminal Input/Output Terminal...
  • Page 14 Diagram 5: PRO 30KVA / 40KVA Diagram 6: PRO 30KVA / 40KVA Rear Panel Dual Rear Panel Diagram 7: PRO 30KVA / 40KVA Diagram 8: PRO 30KVA / 40KVA Input / Output terminal Dual Input / Output Terminal...
  • Page 15 Diagram 9: PRO 60KVA front view Diagram 10: PRO 80KVA front view with door open with door open Diagram 11: PRO 60KVA / 80KVA Input/Output Terminal...
  • Page 16 Diagram 12: PRO 60KVA Dual front view Diagram 13: PRO 80KVA Dual front view with door open with door open 1. RS-232 communication port) 2. USB communication port 3. Emergency power off function connector (EPO connector) 4. Share current port (only available for parallel model) 5.

  • Page 17: Single Ups Installation

    10. Input/Output terminal (Refer to diagram 3, 4, 7, 10, 13, 14 and 15 for the details) 11. Line input terminal 12. Output terminal 13. Input grounding terminal 14. Output grounding terminal 15. Bypass input circuit breaker/switch 16. Bypass input terminal 17.
  • Page 18 thicker wire for Phase and AWG10 (6mm²) or thicker wire for Neutral for safety and efficiency. NOTE 2: The cable for PRO10KVA DUAL should be able to withstand over 30A current. It is recommended to use AWG 12 (4mm²) or thicker wire for Phase and AWG10 (6mm²) or thicker wire for Neutral for safety and efficiency.
  • Page 19 Terminal block wiring diagram for PRO 10KVA / 20KVA Terminal block wiring diagram for PRO 10KVA / 20KVA Dual Terminal block wiring diagram for PRO 30KVA / 40KVA...
  • Page 20 Terminal block wiring diagram for PRO 30KVA / 40KVA Dual Terminal block wiring diagram for PRO 60KVA / 80KVA...
  • Page 21 Terminal block wiring diagram for PRO 60KVA / 80KVA Dual TO UPS BAT+ PBAT TO UPS BAT N NBAT TO UPS BAT- Battery wires connection schematic NOTE 1: Make sure that the wires are connected securely with the terminals. NOTE 2: Please the output breaker between the output terminal and the load, and the breaker should have leakage current protective function if necessary.

  • Page 22: Ups Installation For Parallel System

    • Pay special attention to the polarity marking on external battery terminal block. Connection with wrong battery voltage may cause irreversible damage of the UPS. • Make sure the protective grounding/earthing wiring is adequate. The current spec, color, position, connection and conductance reliability of the wire should be verified.
  • Page 23 Wiring diagram of parallel system for PRO 10KVA / 20KVA DUAL Wiring diagram of parallel system for PRO 30KVA / 40KVA Wiring diagram of parallel system for PRO 30KVA / 40KVA DUAL...
  • Page 24 Wiring diagram of parallel system for PRO 60KVA / 80KVA Wiring diagram of parallel system for PRO 60KVA / 80KVA DUAL...

  • Page 25: Software Installation

    2-5. Software Installation For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. Use supplied RS-232 or USB communication cable to connect RS-232/USB port of UPS and RS-232/USB port of PC. Then, follow below steps to install monitoring software.

  • Page 26: Operations

    3. Operations 3-1. Button Operation 1) Before operation, make sure that the two strings of batteries are connected correctly in order of ”+,GND,-” terminals and the breaker of the battery pack is at “ON” position (only for long-run model). 2) Press the “ ”...
  • Page 27 Upon powering on, the LCD will start initialization approximately few seconds as shown below. 96 72.07 After initialization, the main screen will display as shown below. On the button, there are five icons to represent five sub-menus: Control, measure, setting, information, data log. 3-2-2.
  • Page 28 Enter No Or Back Confirm YES Turn ON /OFF UPS ON/OFF UPS Enter No Or Back Confirm YES Do Battery Test HOME CONTROL BATTERY TEST Enter No Or Back Confirm YES Do MUTE ALL MUTE ALL Enter No Or Back Confirm YES Turn ON/OFF CHARGER ON/OFF CHARGER Screen 1.0 «Control»...
  • Page 29 20KVA 20KVA 19:52:36 19:52:36 Bypass M ode Bypass M ode 2018-11-07 2018-11-07 O N / O FF U PS O N / O FF U PS BATT TEST BATT TEST M U TE ALL M U TE ALL BATT Test ? C ancel BATT Test ? O N / O FF C H AR G ER O N / O FF C H AR G ER...
  • Page 30 20KVA 19:52:36 20KVA 19:52:36 Bypass M ode Bypass M ode 2018-11-07 2018-11-07 O N / O FF U PS O N / O FF U PS BATT TEST BATT TEST Tur n O n C har ger ? M U TE ALL M U TE ALL Tur n O f f C har ger ? O N / O FF C H AR G ER...
  • Page 31 Measure screen page 2  OUTPUT W: R, S and T output power in watt.  OUTPUT VA: R, S and T output power in VA.  OUTPUT W (%): R, S and T output power watt in percentage.  OUTPUT VA (%): R, S and T output power VA in percentage.
  • Page 32 3-2-4. Setting Screen This sub-menu is used to set the parameters of UPS. Touch the icon to enter setting menu page. There are 2 options: Basic and Advanced. Touch the icon to return to main screen. Touch the icon to go back to previous menu.
  • Page 33  Input Source: Select the input source. There are two options: Line (utility) and generator. Line is default setting. This setting value will show on the main page. When “generator” is selected, the acceptable input frequency will be fixed at the range of 40~75Hz.
  • Page 34 It’s required to enter password (4 digits) to access to the “ADVANCE” page.  Advance  User To access to the “AdvanceUser” Setting menu page, the default password is “0000”. If entered password is right, the page will jump to setting screen. If the password is wrong, it will ask to enter again.
  • Page 35  Output VOL.: Select the output rated voltage.  If the UPS is HV system, there are four options, 208V, 220V, 230V and 240V.  If the UPS is LV system, there are two options, 120V and 127V.  Output FRE: Select output rated frequency. ...
  • Page 36  H: High voltage point for bypass. The setting range is 231V ~ 264V when UPS is HV system. The setting range is 130V ~ 146V when UPS is LV system.  Bypass FRE Range: Set the bypass frequency range. The acceptable bypass frequency range from 46Hz to 54Hz when UPS is 50Hz system and from 56Hz to 64Hz when UPS is 60Hz system.
  • Page 37 MISCELLANEOUS 20KVA 19:52:36 Bypass M ode 2018-11-07 Aut o R est ar t Enabl e Shut dow n D el ay 0m i n ELEC TR O N I C R est or e D el ay 0m i n BATTER Y N ew Passw or d * * * *...
  • Page 38 20KVA 19:52:36 Bypass M ode 2018-11-07 ELEC TR O N I C BATT M I SC ELLAN EO U S U PS SELFTEST H O M E C O N TR O L M EASU R E D ATALO G SETTI N G I N FO Advance: Maintainer Setting Menu Page 2...
  • Page 39  BATT Number: The total number of installed battery. (It’s required to restart the UPS after setting.) The setting range is 16 ~ 20. 16 is default setting.  Float VOL: The setting point of battery float voltage. 13.6V is default setting. ...
  • Page 40 VOL CALI VOL CALI Page1  Bus VOL: BUS voltage calibration. Click value columns and it will pop up Then, each click is 0.1% no matter it’s pressing up or down key . Press “up” key to increase 0.1% and press “down” key to decrease 0.1%. Press “OK” key to confirm the modification.
  • Page 41  Output VOL: Output voltage calibration. Click value columns and it will pop up . Then, each click is 0.1% no matter it’s pressing up or down key . Press “up” key to increase 0.1% and press “down” key to decrease 0.1%. Press “OK”...
  • Page 42 INITIAL 20KVA 19:52:36 StanbyMode 2018-11-07 DATA LOG SYS PARAMETER PARAMETERS INSTALL INFO CALI VOL CALI EEPROM CURR CALI TOUCH CALI INITIAL HOME CONTROL MEASURE SETTING INFO DATALOG INITIAL menu Page 20KVA 19:52:36 StanbyMode 2018-11-07 DATA LOG SYS PARAMETER PARAMETERS INSTALL INFO CALI Initial the Datalog? VOL CALI...
  • Page 43 20KVA 19:52:36 StanbyMode 2018-11-07 DATA LOG SYS PARAMETER PARAMETERS INSTALL INFO CALI Initial the CALI? VOL CALI EEPROM CURR CALI TOUCH CALI INITIAL HOME CONTROL MEASURE SETTING INFO DATALOG INITIAL  CALI Page  CALI: After clicking “CALI”, it will pop up a message board as shown in above screen.
  • Page 44 ELECTRICAL Electrical Setting Page 1  Output VOL: Select the output rated voltage.  When UPS is HV system, there are four options, 208V , 220V ,230V and 240V.  When UPS is LV system, there are two options, 120V and 127V. ...
  • Page 45 Electrical Setting Page 2  Bypass at UPS off: Select the bypass status when manually turning off the UPS. This setting is only available when “Bypass forbid” is set to “Disable”.  Enable: Bypass enabled. When selected, bypass mode is activated. ...
  • Page 46 BATTERY 20KVA 19:52:36 Bypass M ode 2018-11-07 BATT W ar ni ng VO L H I G H 14. 4V LO W 11. 5V Shut dow n VO L 10. 7V ELEC TR O N I C BATT Age BATTER Y BATT Par am et er s M I SC ELLAN EO U S U PS SELFTEST...
  • Page 47  Disable: After “Disable” is set, once UPS shutdown occurs and the utility automatically turn on. restores, the UPS will not  Shutdown Delay Min: UPS will shut down in setting minutes. The countdown will start after confirming the pop-up screen. ...
  • Page 48 3-2-5. Information Screen Touch the icon to enter information page. Touch the icon to browse information. Touch the icon to return to main screen. Touch the icon to go back to previous menu. 20KVA 19:52:36 Bypass M ode 2018-11-07 M C U Ver si on C O M M : 9673.
  • Page 49  BAT Install Date: The date of battery installation.  PAR State: The information of parallel state.  PAR ID: The UPS ID number in parallel state.  Input Source: The information of input source.  All Mute: Enable/disable all mute function. ...
  • Page 50 Parameters Information  Line Voltage Range: The acceptable line input voltage range.  Line FRE Range: The acceptable line input frequency range.  Bypass Voltage Range: The acceptable input voltage range for bypass mode.  Bypass FRE Range: The acceptable input frequency range for bypass mode.
  • Page 51 Parameter Information Page 3  Charger Number: The information of charger number.  Max Charge CURR: The setting value of the maximum charging current.  Float VOL: The setting value of the battery float voltage.  UPS Type: The information of UPS type. ...

  • Page 52: Audible Alarm

    3.3 Audible Alarm Description Buzzer status Muted UPS status Bypass mode Beeping once every 2 minutes Battery mode Beeping once every 4 seconds Fault mode Beeping continuously Warning Overload Beeping twice every second Others Beeping once every second Fault Beeping continuously 3-4.
  • Page 53 Connect devices to UPS After the UPS is turned on, you can connect devices to the UPS. 1) Turn on the UPS first and then switch on the devices one by one, the LCD panel will display total load level. 2) If it is necessary to connect the inductive loads such as a printer, the in-rush current of the load should be calculated carefully to see if it meets the overload capability of the UPS.
  • Page 54 Test the batteries 1) If you need to check the battery status when the UPS is running in AC mode/CVCF mode/ECO mode, you could touch “CONTROL” and select “Battery Test”. Refer to “Battery Test” screen. 3) Users also can set battery self-test through monitoring software. Turn off the UPS with utility power supply in AC mode 1) Touch “CONTROL”...

  • Page 55: Parallel Operation

    12. Operation in maintenance mode This operation should only be performed by maintenance personnel or qualified technicians. When the UPS needs to repair or service and the load could not be shut off, the UPS needs to be put into maintenance mode. 1) First, switch off the UPS.
  • Page 56 If you would like to have more information regarding the parallel operation, please contact your supplier or service center for detail parallel operation instruction. Add one new unit into the parallel system 1) You can not add one new unit into the parallel system when whole system is running.

  • Page 57: Fault Code

    • The parallel system DOES NOT support ECO mode. Therefore, please DO NOT “enable” ECO mode in any unit 3-6. Fault Code Fault Fault Fault event Icon Fault event Icon code code Bus start failure None DSP communication failure None Bus over None Overload...

  • Page 58: Warning Code

    3-7. Warning Code Warning Warning Warning event Warning event code code Line situations are different in Battery unconnected parallel system Bypass situations are different in IP Neutral loss parallel system Locked in bypass after overload IP phase abnormal 3 times in 30 minutes Bypass phase abnormal Converter current unbalanced Over charge...

  • Page 59: Troubleshooting

    4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in The AC input power is not Check if input cable firmly the front display panel even connected well.
  • Page 60 Symptom Possible cause Remedy Fan is locked or not working. The warning code 0A. Or the UPS temperature is Check fans and notify dealer. too high. Check and correct the input neutral connection. If the connection is ok and the warning is still displaying, please refer to the LCD setting section, to enter the...

  • Page 61: Storage And Maintenance

    5. Storage and Maintenance 5.1 Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25ºC - 40ºC Every 3 months...

  • Page 62: Specifications

    6. Specifications PRO 60KVA, PRO 80KVA, PRO 10KVA, PRO 20KVA, PRO 30KVA, PRO 40KVA, MODEL 10KVA Dual 20KVA Dual 30KVA Dual 40KVA Dual 60KVA Dual 80KVA Dual 10KVA / 20KVA / 30KVA / 40KVA / 60KVA / 80KVA / CAPACITY* 10KW 20KW 30KW...
  • Page 63 BATTERY Type Depending on applications Numbers 32 ~ 40 (adjustable) 2.0~24.0A ±10% Charging Current(max.) 1.0~12.0A ±10% (Adjustable) (Adjustable) +/-136.5 Charging Voltage +/- 13.65 VDC * N ± 1% (N = 16~20) VDC ± 1% PHYSICAL Dimension, D X W X H mm 626 x 250 x 750 815 x 300 x 1000 790 x 360 x 1010...
