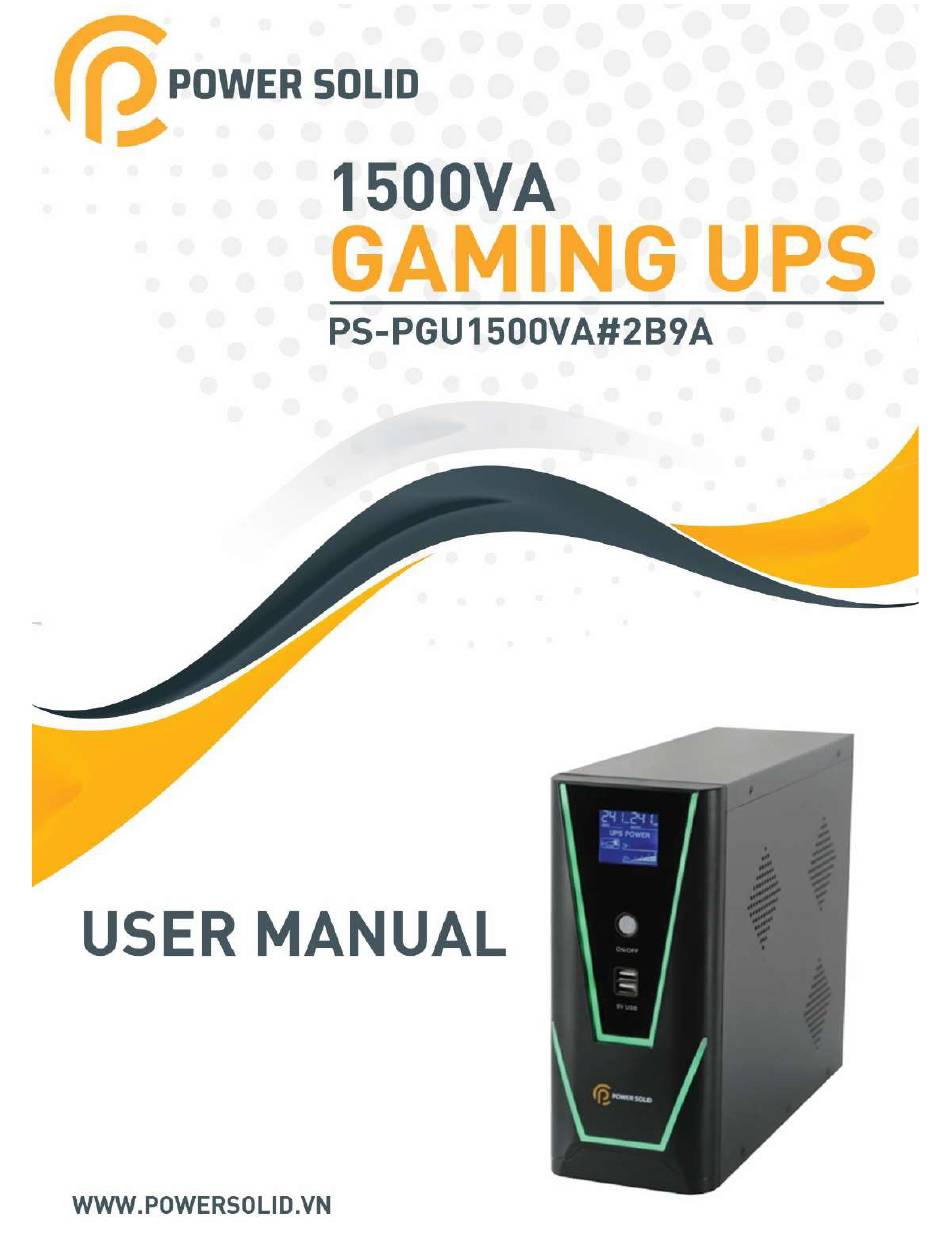

Power Solid PS-PGU1500VA#2B9A User Manual

Gaming ups
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-PGU1500VA#2B9A and is the answer not in the manual?

Questions and answers

Related Manuals for Power Solid PS-PGU1500VA#2B9A

Summary of Contents for Power Solid PS-PGU1500VA#2B9A

  • Page 2 INSTALLATION & OPERATION ①Package Contents Before installation, please read and understand the following items are inside the box: ·UPS unit ·User manual ·Communication cable ·Software for UPS ②Connect to Utility Power Connect AC power cord to utility power. Then, the UPS will start to charge inside battery. For best result, charge the battery for 24 hours prior to initial use.
  • Page 3 RGB Lights. ⑧ All RGB lights will be lighting when the UPS in AC mode. The RGB light on above will be lighting when the UPS in battery mode. Press on the power switch twice, the RGB lights will be off. Press on the power switch twice again, the RGB lights will be on. PLACEMENT &...

  • Page 4: Product Overview

    PRODUCT OVERVIEW FRONT PANEL 1)LCD display 2)RGB lights 3)Power switch 4)5V USB port REAR PANEL...
  • Page 5 1)Output socket 2)USB port 3)Circuit breaker 4)AC input...

  • Page 6: Lcd Display

    LCD DISPLAY Operation Display UPS Mode Description UPS Power on UPS is powered on. LCD information will be displayed in the following order when LCD is touched. AC Mode 1)Output voltage 2)Input voltage 3)Load level 4)Battery capacity Overload in AC When overload occurs, alarm mode will beep every 0.5 second.

  • Page 7: Safety Caution

    SAFETY CAUTION SAVE THESE INSTRUCTION-This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. 1) This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user replaceable parts. Only factory service personnel may perform repairs.
  • Page 8 13) Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized personnel away from batteries. 14) When replacing batteries, replace with the same number and type of sealed lead-acid battery. 15) Do not open or mutilate the battery or batteries. Release electrolyte is harmful to the skin and eyes.

  • Page 9: Specification

    Specification Model PS-PGU1500VA#2B9A Capacity(VA) 1500VA/900W Input Voltage range(V) 145Vac-290Vac Input Frequency(Hz) 50Hz±1% OR 60Hz±1% Output Voltage range(V) 220V±10% Transfer time Typical 4-6ms Waveform Simulated Sine Wave Battery Type 12V9AH*2 Typical recharge time 8 hours recover to 90% capacity Dimension(mm) 330*115*265...

  • Page 10: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Solutions The UPS is not on. Press the power switch again to turn on the UPS. Nothing is displayed on LCD Battery voltage is too low. Charge the battery at least 6 panel. hours. Battery fault. Replace the battery.
