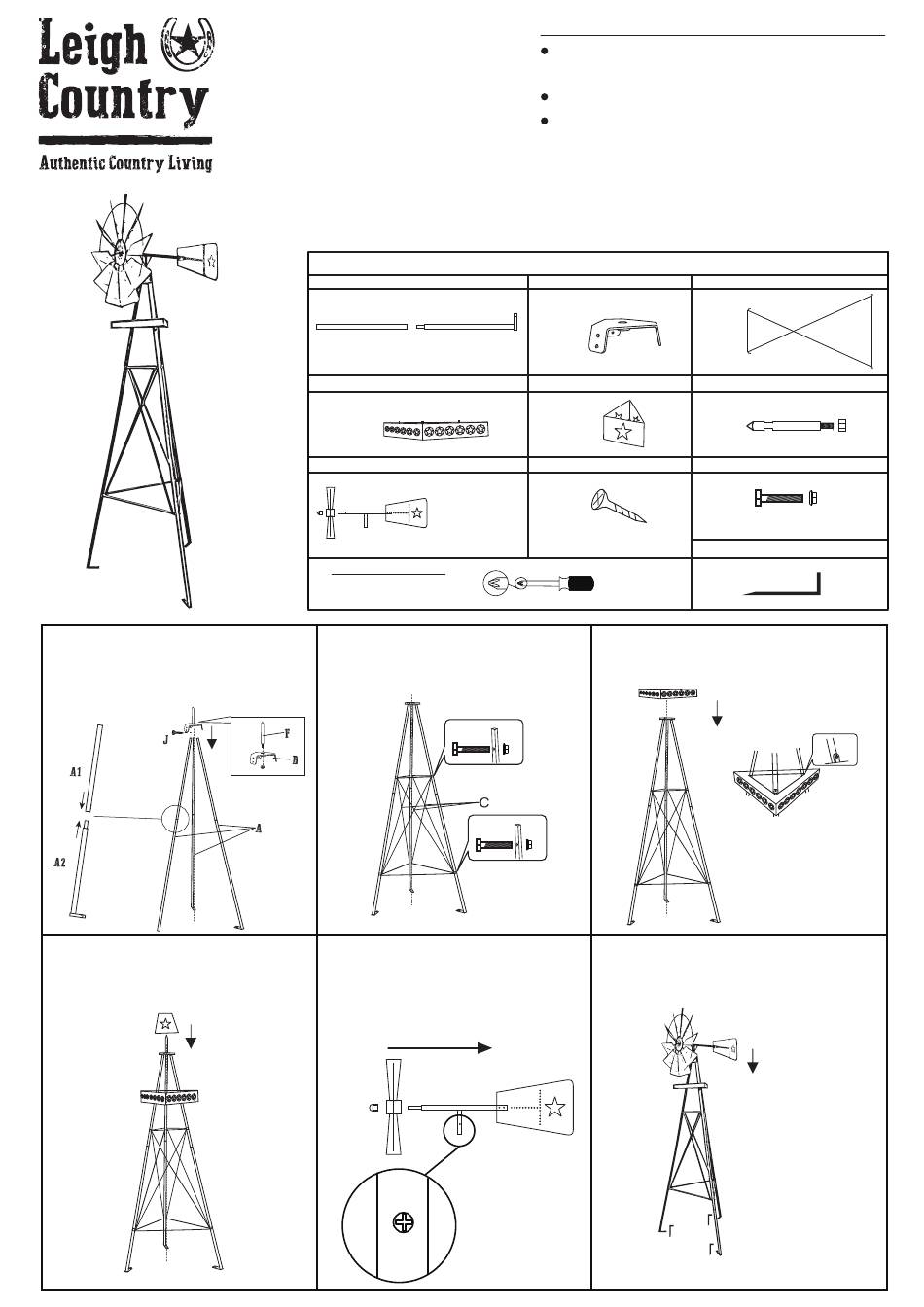

Leigh Country TX 93480 Quick Start Manual

STEP 1
Secure the Needle (F) into the Top Mount Platform (B).
Secure the Top Mount Platform (B) to the top of the Legs
(A1) with the Screws (J). Connect top portion of Legs
(A1) to the bottom part (A2). Leg should face inwards.
STEP 4
Place the Directional Cap (E) on the Top Mount Platform
(B), lock into place with the Needle (F).
E
F
WINDMILL 9FT. TRIPOD TEXAS FLAG
ITEM #: TX 93480
A
Windmill Legs
A1 (TOP) = 3PCS A2 (BOTTOM) = 3PCS
D
Star Platform
D = 1PC
G H I
Windmill Head
G = 1PC Rudder
I
H = 1PC Fan Blades
G
H I = 1PC Stop Nut

Tools Required for Assembly:

#2 Phillips Screwdriver
10" Adjustable Wrench
STEP 2
Affix the Side Panel (C) into place between the Windmill
Legs (A), tighten with the Bolt & Nut (K).
K
STEP 5
Assemble the Windmill Head (G, H, I), make sure the Stop
Nut (I) is screwed on well.
Note: The front hole of the Fan Blades (H) is larger than
the back hole.
Assembling
H
I
IMPORTANT: READ CAREFULLY BEFORE BEGINNING!
Make sure that all parts and hardware are present
before assembly.
Assemble on a non-marring and level surface
Do not completely tighten all nuts and bolts until
the bench is fully assembled.

PARTS AND HARDWARE LIST

B
Top Mount Platform
B = 1PC
E
Decor Cap
E = 1PC
J
Screws
M4 X 0.4"
J = 9PCS
STEP 3
Affix the StarPlatform (D) on top of the Windmill Legs (A),
and tighten with the Screws (J).
K
STEP 6
Place the Windmill Head (G, H, I) on the Needle (F). Secure the
Windmill by inserting the Ground Stakes (L) through each
hole at the base of each legs.
G
L
C
Side Panels
C = 3PCS
F
Needle (Screw into B)
F = 1PC
K
M6 X 1.6"
K = 6PCS
L
Ground Stakes
L = 3PCS
D
J
L
Congratulations
L
on your assembly!
