Summary of Contents for Leigh Country Char-Log Aspen Series

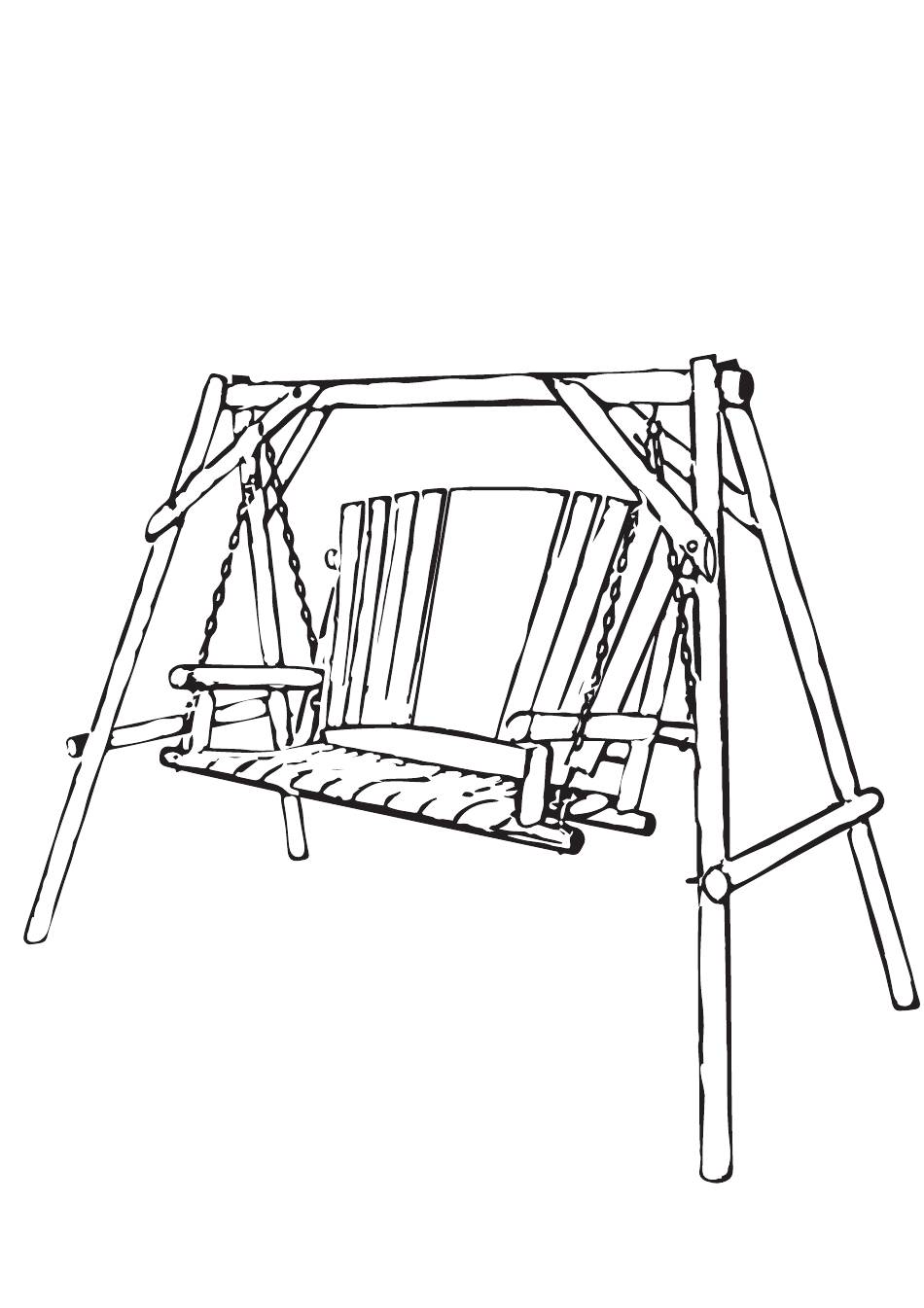

- Page 2 IMPORTANT: READ CAREFULLY BEFORE BEGINNING 1. Do not tighten bolts until fully assembled. 2. Recessed holes to face outward. 3. Insert bolts with washer and secure with washer and nut. 4. Pre-checked side must always face downward or inward. Recessed Hole Pre-Checked DO N OT USE PO WE R TO O LS ! 4ft SWING WITH ”A”...
- Page 3 Step 3: Do not fully tighten the bolts. Back Panel Assembly Secure the cone heads at the top of Back Support (7) into the holes of the upper part of the Back Panel (10) with Screws (C). Insert Bolts (C) into the Back Support (7) and the lower part of the Back Panel (10).
- Page 4 Step 1: Part 3 washer Construction of “A” Frame washer Part 1 Attach Brace (3) to the Top Beam (1) and to the Legs (2) with Nuts & Bolts (B). Please ensure that there is one washer on both ends of the Nuts &...
- Page 5 Step 5: Chain Assembly Attach the Front (E) and Back (F) chains to the Hook Nut & Bolts (D). The longer chain (E) goes in the front and the shorter chain (F) goes in the back. E or F 5 or 9 Step 6: Complete the Assembly Attach the Front (E) and Back (F)
- Page 6 Limited Warranty and Care Instructions LIMITED ONE YEAR WARRANTY (NON-TRANSFERABLE) This product is covered under United General Supply’s (UGS) one (1) year limited warranty. To the original purchaser of this piece of furniture, cooler or accessory; UGS warrants that it will be free from defects in material and workmanship for up to one year from the date of purchase under normal use and proper care.
