INSTALLER'S & OWNER'S MANUAL
DEH 3000R
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER

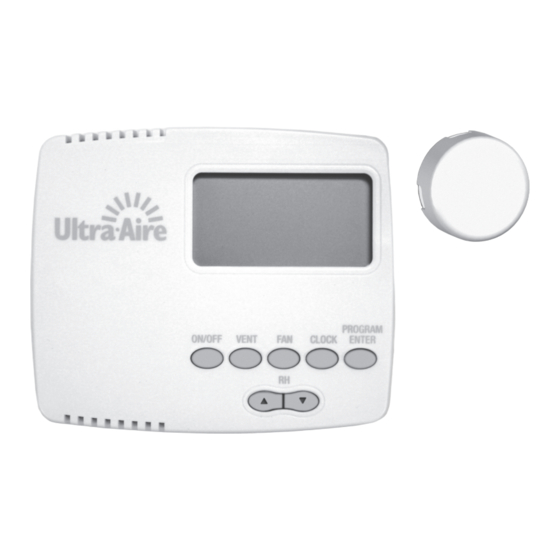

DEH 3000R
Part No. 4028407
Dehumidifier & Ventilation System Controller
4201 Lien Road, Madison, WI 53704
TOLL-FREE (800)-533-7533
www.thermastor.com
sales@thermastor.com
•
•
•
© 2015 Therma-Stor LLC • Manual P/N TS-1028 11/17 Rev A
