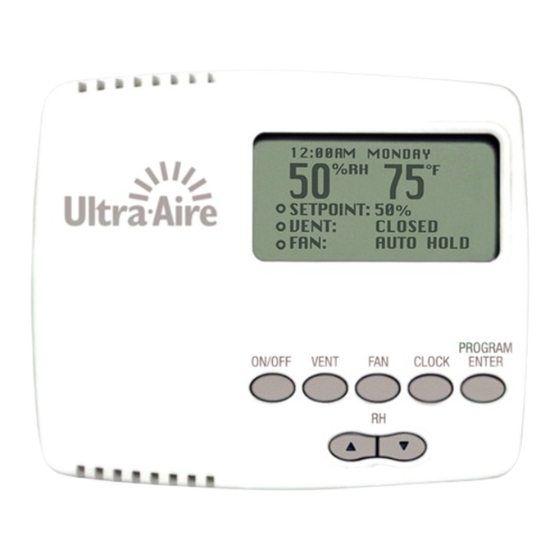

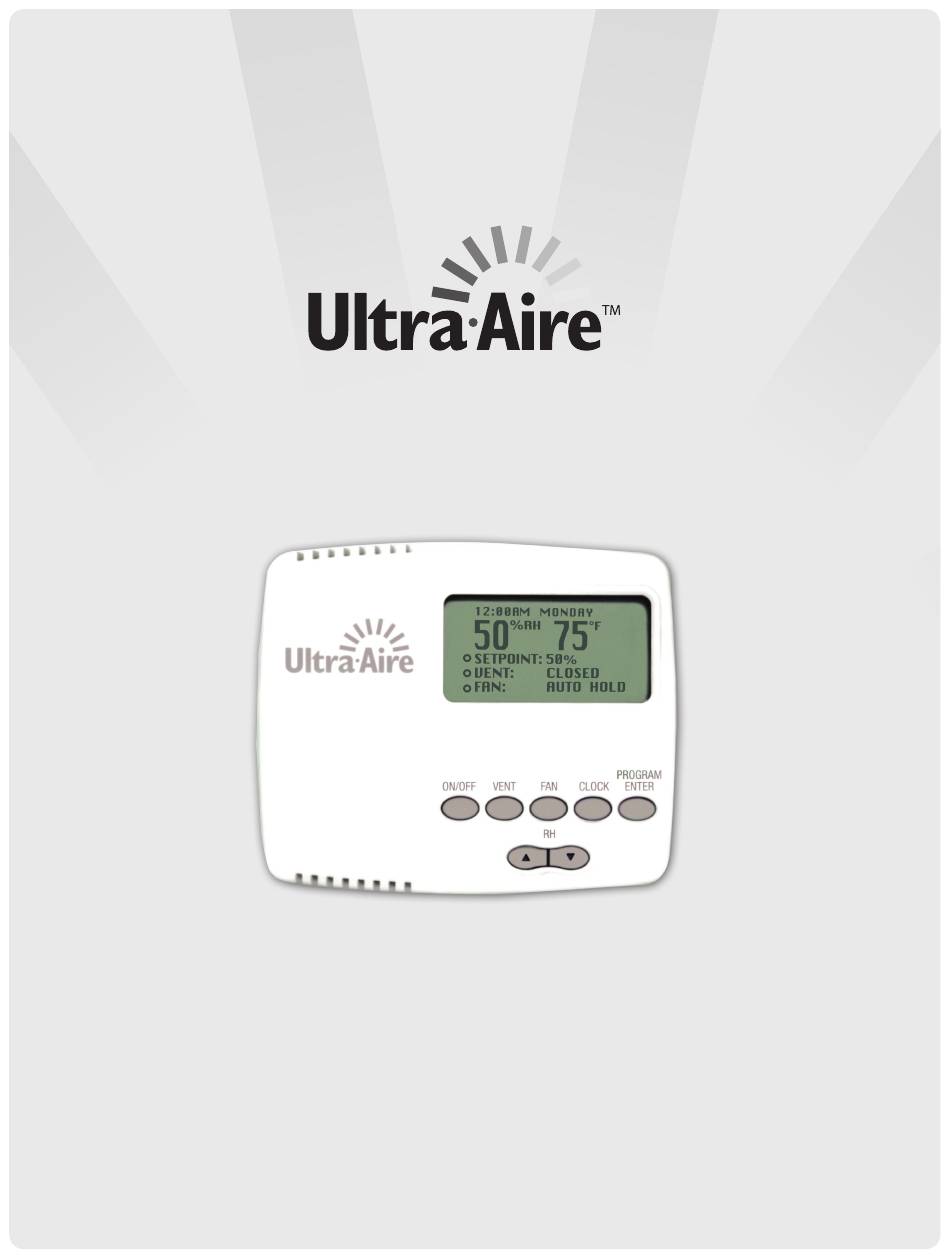

- Page 1 DEH 3000 DEH 3000 DEH 3000 / 3000R Dehumidifier & Ventilation System Controller Installation Instructions INSTALLATION BY A HVAC PROFESSIONAL IS RECOMMENDED TS-1110 12/18 Rev A...
-
Page 2: Table Of Contents
Remote Sensor Option ............... 16 Warranty ..................17 Ultra-Aire is committed to manufacturing quality products. To maintain our standards, product specifications may change without notice. 4201 Lien Road, Madison, WI 53704 (800) 533-7533 www.Thermastor.com | www.Ultra-Aire.com © 2018 Therma-Stor LLC... -
Page 3: Safety Instructions
Max Current - DMP, COMP, FAN: ± 10 - 95% RH, Humidity Range/Accuracy: 5 Amps, 24 VAC Auxillary Relay Capacity: 30°-90° F, 2% Temp Range/Accuracy: Dimensions: Width: 1.06" Height: 4.19" Length: 4.95" www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... -
Page 4: Installation
4. Make the electrical connections to the terminals on the back panel as shown in the applicable wiring diagram (Page 5). 5. Test the installation (Page 9). Mounting Hole 24 V Normally ON-Detect Open Optional Optional Common Common Normally OFF-Detect Closed DMPR DEHU Mounting Hole Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... -
Page 5: Wiring
DEH 3000/R. Some of the control wires or terminals on the dehumidifier may not be used in some control situations and should be left disconnected with wire nuts taped onto the stripped ends (if necessary). Be sure to consult the electrical schematic in this manual or the internal electrical box of the Ultra-Aire dehumidifier before making any control connections as it may vary by model. Terminal Block Configuration Version 1 Terminal Block Configuration Version 2 www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... - Page 6 CONNECTED OPEN FLOAT External low voltage float switch or water sensor (use normally closed switch) OFF OPEN CONNECTED FLOAT External low voltage float switch or water sensor (use normally closed switch) Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533...
-
Page 7: Common Uses
3. R un a wire from the Red terminal on the thermostat to the NO (Normally Open) terminal on the DEH 3000/R. Figure 1 Figure 2 YELLOW 24VAC 24VAC TRANSFORMER TRANSFORMER BLACK BLACK GREEN GREEN GREEN COMP COMP UNIT UNIT YELLOW YELLOW HVAC THERMOSTAT HVAC THERMOSTAT DEH 3000 DEH 3000 www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... -
Page 8: Dehumidifier Lock-Off Or Lock-On
Figure 3 Figure 4 24VAC 24VAC TRANSFORMER TRANSFORMER BLACK BLACK BLACK BLACK ON-DETECT GREEN GREEN OFF-DETECT COMP COMP YELLOW UNIT YELLOW UNIT YELLOW YELLOW HVAC THERMOSTAT HVAC THERMOSTAT DEH 3000 DEH 3000 Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... -
Page 9: Testing
DO NOT MAKE ANY OTHER CONNECTIONS OR TRANSFORMER DAMAGE MAY RESULT. 7. Verify any additional optional control operations such as fan interlock or A/C lock-out. 8. Proceed to the Operation section (Page 11). www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... -
Page 10: Troubleshooting
Yellow & Blue 24V and DEHU Fan & Compressor Yellow & Green 24V and FAN Fan Only Note: A jumper or normal closed float switch must be installed from FLOAT to FLOAT. Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... -
Page 11: Operation
10 seconds, the control will remember any changes made and return to the normal display screen, allowing you to proceed to the next step. www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... -
Page 12: Setting Clock Time
Some conditions may introduce enough heat to drive household temperatures up. The DEH 3000/R temperature cutout feature disables all Ultra-Aire operations if household temperatures reach the cutout setpoint. In most installations this feature will not need to be used (the cutout is factory set to 99°F). If a lower temperature cutout is desired, program the setpoint by pressing and holding the “PROGRAM ENTER” button until the “PROGRAM” screen appears. Press the up/down “RH” buttons until “TEMP CUTOUT” highlighted. Then press the “PROGRAM ENTER” button again to select it. Now use the “RH” up or “RH” down buttons to adjust the setpoint. Press “PROGRAM ENTER” to return to the home screen. Personal Settings Reference List Please record your settings here. Function Factory Setting My Setting SETPOINT (%RH) 50% VENT Closed Auto TEMP CUTOUT 99° Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... -
Page 13: Fan Setting And Operation
To set “OPEN” – hold or “CLOSED” – hold ventilation operation: 1. P ress the “VENT” button. The current setting will begin to flash on the display. Release the button. 2. P ress the “VENT” button again to switch between “OPEN” and “CLOSED”. 3. Leave the control alone for 10 seconds and your settings will be saved. www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... -
Page 14: Damper Operation And Ventilation, Programmed Ventilation
• “ CLOSED FOR” duration which closes the damper for a specified time in 5 minute intervals from 0 to 60 Setting the Ventilation Program 1. P ress the “PROGRAM ENTER” button until the menu to the right appears. 2. U sing the up/down “RH” buttons, highlight “PROGRAM” and select it by pressing the “PROGRAM ENTER” button. You can select from: “MON-FRI” “SAT-SUN” for separate weekday and weekend schedules, or “MON-SUN” which gives you equal weekday and weekend schedules. 3. U sing the Up/Down “RH” buttons, highlight and then select one of the two choices. Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... - Page 15 For the example given, starting at 8:00AM in the morning, the control will ventilate fresh air for 15 minutes then stop for 15 minutes. This schedule of 15 minutes open, 15 minutes closed will continue until the start time of the night schedule. Morning schedule is available anytime from 12:00AM until 11:59AM. Night schedule is available anytime from 12:00PM until 11:59PM. 4. P ress “PROGRAM ENTER” again to go to the “MON-FRI” night schedule. Repeat the steps listed above for this and the “SAT-SUN” day and night schedules. When you have finished programming your schedule (either the 7-day version or the weekday/weekend split version), use the down “RH” button to highlight the EXIT option and then press “PROGRAM ENTER” to select it. Running the Ventilation Program Press and hold the “PROGRAM ENTER” button until the “PROGRAM” screen appears as shown below. Use the down “RH” button to highlight “RUN PROGRAM”. Then press “PROGRAM ENTER” to select it. The display below will appear. www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions...
-
Page 16: Remote Sensor Option
Use the provided splice connectors to connect the 4 wires from the DEH 3000R to the user-supplied interconnect wire. Be sure to keep the proper colors attached to each other. Continue with the installation as described in the rest of this manual. Ultra-Aire DEH 3000/R Installation Instructions www.Ultra-Aire.com | (800) 533-7533... -
Page 17: Warranty
Some states do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages, so one or both of these limitation may not apply to you. Legal Rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. www.Ultra-Aire.com | (800) 533-7533 Ultra-Aire DEH 3000/R Installation Instructions... - Page 20 (800) 533-7533 www.Ultra-Aire.com...
