Quest Dry
Quest 215 Dual
Quest DEH 3000 / 3000R
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
Features:
Monitor and control moisture levels
Manage fresh air ventilation
Central fan integration
A/C Sensor activates or deactivates the dehumidifier
High temperature cutout
Dry out cycle timer
Auto reboot
Ventilation options
Specifications subject to change without notice.
This manual is provided to acquaint you with the DEH 3000
Controller so that installation and operation can proceed
successfully. Ultimate satisfaction depends on the quality of
installation and a thorough understanding of this equipment.
4201 Lien Rd
Madison, WI 53704
www.QuestClimate.com
1
Remote sensor available
with the DEH 3000R.
Toll-Free 1-877-420-1330
info@QuestClimate.com
TS-1174
03/20 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quest DEH 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Therma-Stor Quest DEH 3000

  • Page 1 Quest Dry Quest 215 Dual Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions Installation, Operation and Maintenance Instructions – Read and Save These Instructions – This manual is provided to acquaint you with the DEH 3000 Controller so that installation and operation can proceed successfully.
  • Page 2: Table Of Contents

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions Table of Contents Safety Precautions ..............3 1. Specifications ................ 3 2. Installation ................4 3. Wiring ................ 5 3.1 Common Uses ..............7 3.2 Dehumidifier Lock-Off or Lock-On ......8 3.3 Testing ................
  • Page 3: Safety Precautions

    Safety Precautions Read the installation, operation and maintenance instructions carefully before installing and operating this device. Proper adherence to these instructions is essential to obtain maximum benefit from your Quest DEH 3000 Controller. READ AND SAVE THESE INSTRUCTIONS. READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING THIS DEVICE.
  • Page 4: Installation

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 2. Installation Install the DEH 3000 control or the remote sensor portion of the DEH 3000R in a central area of the structure where it will sense the relative humidity of the structure accurately. Do not install the control panel or remote sensor where it may not accurately sense the relative humidity such as near HVAC supply registers, near exterior doors and windows, or near a pool or spa.
  • Page 5: Wiring

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 3. Wiring WARNING! WARNING! DO NOT ALLOW THE YELLOW WIRE OR +24V TERMINAL ON THE QUEST DEHUMIDIFIER TO COME IN ELECTRICAL CONTACT WITH THE RED/WHITE WIRES OR COM/DMPR TERMINALS ON THE QUEST DEHUMIDIFIER OR DAMAGE TO THE TRANSFORMER WILL RESULT.
  • Page 6 Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions WARNING! WARNING! ONLY CONNECT THE DMPR TERMINAL TO THE CONTROL IF IT IS WIRED IN A CIRCUIT THROUGH AN ELECTRIC DAMPER, OTHERWISE TRANSFORMER DAMAGE MAY RESULT. The White wire controls the optional motorized damper that can be installed into a fresh air duct. This damper provides the ability to control fresh air ventilation using the ventilation timer function of the DEH 3000/R and the terminal labeled “DMP”...
  • Page 7: Common Uses

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 3.1 Common Uses (assuming standard thermostat wiring colors as noted): Lock-Out the A/C During Dehumidifier Fan Operation (Figure 1) This will turn off the A/C whenever the dehumidifier fan runs.
  • Page 8: Dehumidifier Lock-Off Or Lock-On

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 3.2 Dehumidifier Lock-Off or Lock-On A/C Sensor Feature To automatically activate or deactivate the dehumidifier when the air conditioner runs. Activate Dehumidification When the A/C is Running ON-D (Figure 3)
  • Page 9: Testing

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 3.3 Testing Verify the wiring connections. WARNING! WARNING! ONLY CONNECT THE DMPR TERMINAL TO THE CONTROL IF IT IS WIRED IN A CIRCUIT THROUGH AN ELECTRIC DAMPER, OTHERWISE TRANSFORMER DAMAGE MAY RESULT.
  • Page 10: Troubleshooting

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 3.4 Troubleshooting CAUTION! CAUTION! TROUBLESHOOTING SHOULD BE PERFORMED BY A QUALIFIED HVAC TECHNICIAN. WARNING! WARNING! ELECTRICAL SHOCK HAZARD. ELECTRICAL POWER MUST BE PRESENT TO PERFORM SOME TESTS. THESE TESTS SHOULD BE PERFORMED BY A QUALIFIED SERVICE PERSON.
  • Page 11: Operation

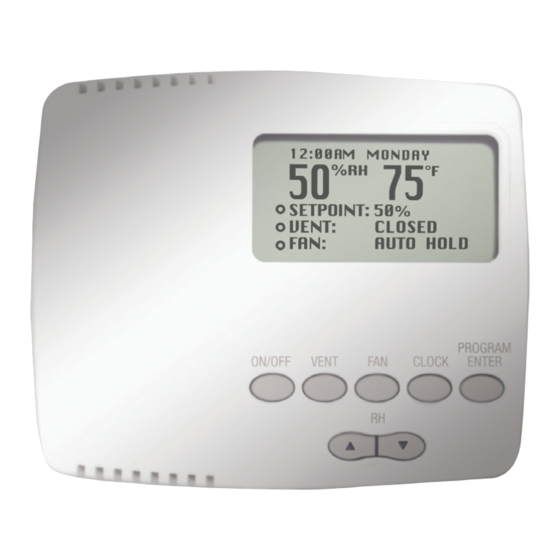

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 4. Operation For Installer and Homeowner: On the display screen, a solid “O” in front of any of the 3 functions (SETPOINT, VENT, FAN) indicates the function is operating. A flashing “O” indicates it is in a wait mode and not available at the moment. No “O” indicates the function is currently OFF.
  • Page 12: Setting Clock Time

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 4.3 Setting Clock Time 1. Press and hold the “CLOCK” button. The hour display will flash. Release the button. 2. Use the up/down “RH” buttons to change the value. 3. Press the “CLOCK” button again and the minute display will flash. Use the “RH” buttons to change the value.
  • Page 13: Fan Setting And Operation

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 4.6 Fan Setting and Operation Use the “FAN” button to change the fan operation. There are 2 choices for fan operation: “ON” or “AUTO”. The factory preset is “AUTO”. “ON” –The fan in the Quest dehumidifier will run continuously. This does not affect either the dehumidification or ventilation functions of the system.
  • Page 14: Damper Operation And Ventilation, Programmed Ventilation

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 4.8 Damper Operation and Ventilation, Programmed Ventilation This example shows the system in program mode denoted by the schedule 15 minutes on, 5 minutes off and the word “RUN” in the lower right corner of the display.
  • Page 15: Running The Ventilation Program

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions Setting the Ventilation Program (Continued) The display to the right shows the menu when a separate weekday and weekend schedule is selected (“MON-FRI” “SAT-SUN”). 1. Enter the starting time for weekdays using the up/down “RH”...
  • Page 16: Calibration And Off Set

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 4.11 Calibration and Offse In the event the display shows a humidity reading that is different than that in the room, the RH or temperature display can be adjusted to show a value higher or lower.
  • Page 17: Remote Sensor Option

    Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 5. Remote Sensor Option This section is applicable only to customers who have purchased a remote sensor package. The standard DEH 3000 controller does not offer remote functionality. WARNING! WARNING! THE USE OF SPRAY PAINT ON THE SENSOR HOUSING MAY DAMAGE THE SENSOR AND IS NOT COVERED BY THE PRODUCT WARRANTY.
  • Page 18: Warranty

    First Year Warranty: Therma-Stor LLC warrants that, for one (1) year the DEH 3000/R Dehumidifier & Ventilation System Controller will operate free from any defects in materials and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective part(s), free of any charge.
  • Page 19 Quest DEH 3000 / 3000R Installation, Operation and Maintenance Instructions 1-877-420-1330 www.QuestClimate.com info@QuestClimate.com...
  • Page 20 STACKED Logo Configuration HORIZONTAL Logo Configuration...
