- Page 1 Single-Phase Two-Wire Meter 1.Introduction .User Manual for D111031-01 2.Technical Parameters 3.Description 4. Display 5. Connection Diagram 6. Meter Dimension 7.Installation Instruction...
-
Page 2: Features And Technical Parameters

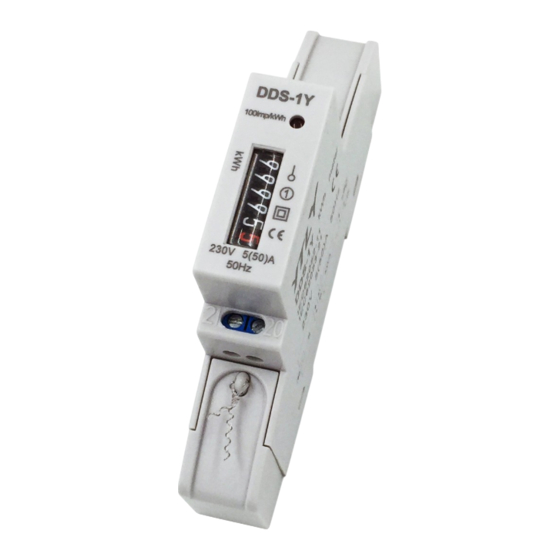

1. Introduction It's the smallest din rail meter in the world. 2. Features and Technical Parameters 2.1 Features ● DIN RAIL standard installation size. ● Only 18mm wide, can up to 50A. ● Counter display, 99999.9kWh ● Degree of Protection: IP51 (indoor meter). 2.2 Technical Parameters Voltage: 230V +/-20%... -
Page 3: Connection Diagram
Starting current: 0.004Ib Temperature range: -25～55℃ Flashing red: Impulse indication Average humidity value of year: 75%(Non Condensing) Maximal value: 3. Description Material Case: ABS、PC、Alloy material Hook: ABS material 4. Display Counter display. 5. Connection Diagram... -
Page 4: Meter Dimensions
6. Meter Dimensions... - Page 5 Height 63mm Width 19mm Length 116mm...
-
Page 6: Installation Instruction
7. Installation Instruction Choose 35mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the location which are waiting for installation; Push down the clip under the bottom of the meter for a gear, see fig. 1 and fig.2;... - Page 7 After push down the clip...
- Page 8 Fig.1 Fig.2 Put the meter into the Din-rail as per Fig. 3, then push up the clip for a gear, install meter to the Din-rail, see Fig. 4;...
- Page 9 Fig. 3 Fig. 4 Recommended wire（For your reference）：...
- Page 10 Safe carrying capacity of rubber or plastic insulated wire(1) Safe carrying capacity（A） nominal cross section specification（mm） （mm2） 1*1.13 1*1.37 1*1.76 1*2.24 1*2.73 7*1.33 7*1.76 7*2.12 7*2.50 19*1.83 19*2.14 19*2.50...
- Page 11 Note：BX(BLX）copper（aluminum）core rubber insulated wire or BV(BLV）copper（aluminum）core PVC plastic insulated wire，widely used in 500V or less than 500V AC and DC power distribution system. The temperature for the data listed in the above table is 35℃、the safe carrying capacity value for the wire on single coved. 8 Safety Instructions Information for Your Own Safety This manual does not contain all of the safety measures for operation of this equipment (module,...
-
Page 12: Qualified Personnel
The equipment (device, module) may only be used for the application cases specified in the catalog and the user manual and only in connection with devices and components recommended and approved by YTL. Exclusion of liability We have checked the contents of this publication and every effort has been made to ensure that the descriptions are as accurate as possible. -
Page 13: Warranty
The manufactory will repair or exchange the products while the lead seal is still exited, within 18 months, when discovering the products not accordance with the technical specification. Technical support For any problems of our products please contact: Zhejiang Yongtailong Electronic co.,ltd No. 320 Tongsheng road, Tongxiang Zhejiang, China Post:314500 Web: www.ytl-e.com Tel: 0573-88105687 Fax: 0573-88100423...
