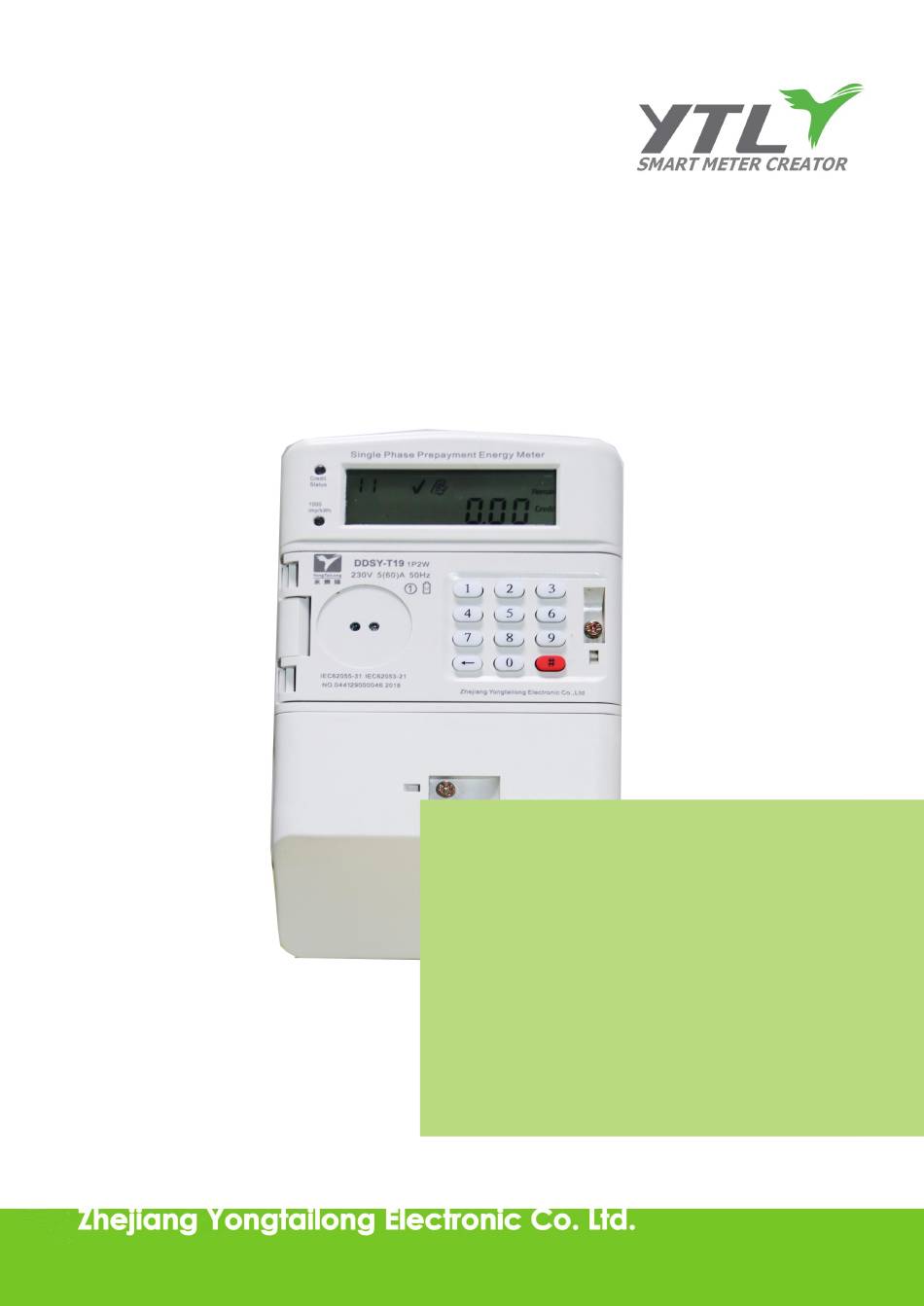

- Page 1 Single-Phase Two-Wire meter User Manual For D124037 1. Introduction 2. Technical Parameters 3. Description 4. Connection 5. Meter Dimension 6. Display 7. Installation 8. Safety Instructions Zhejiang Yong Tai Long Electronics Co., Ltd.
-
Page 2: Technical Parameters
1. Introduction D124037 is a single phase electronic prepaid multi-functional meter with plug and play GPRS module, GPRS module is available for customers to choose from a variety of 2G, 3G, 4G, etc. its performance comply with IEC62052-11, IEC 62053 -21 international standard. At the same... - Page 3 3. Description Low battery alarm indication Pulse indication 3 * 4 keyboard Infrared communication interface Material: Base ABS Cover ABS Side cover PC / ABS Hook ABS Bakelite LCP 4. Connection Zhejiang Yong Tai Long Electronics Co., Ltd.
-
Page 4: Meter Dimension
5. Meter Dimension 6. Display 6.1 Display Page Display Diagram Digits Zhejiang Yong Tai Long Electronics Co., Ltd. - Page 5 Screen Total kwh Total kwh The largest monthly demand Status PEEPAID/POSTPAID Instantaneous power The version number of V 0.0.1 V X.X.X the meter Current Price Power threshold total recharge times Token serial number Relay off times Remaining amount Remain Credit (shows total Overdraft Shows overdraft amount)
- Page 6 Total consumption Taka Total Credit Current rate model POSTPAID/SINGLE/TOU/ STEP Month using Taka Credit Month recharge Taka Credit Friendly, weekends, Credit holiday overdrafts Taka Emergency overdraft Credit Taka Single rate rate TOU1 price / start time /88:88 TOU2 price / start time /88:88 Return Token (short code 20 Tokens...
- Page 7 Step 2 Unit / kwh 2+2\4 /kwh Step 24 Unit / kwh 2+2\4 /kwh The number of holidays 88-88-88(special) DD-MM-YY Holiday 1 \ Holiday 2 88-88(common) DD-MM 88-88-88(special) DD-MM-YY Holiday 39 \ Holiday 40 88-88(common) DD-MM Serial Display Description number content overload Low battery...
-
Page 8: Communication Function
6.2 Event Record 6.2.1 Terminal cover open: After the terminal cover opens, the relay is disconnected and the maximum is recorded 50,000 times, not accumulated up, and record the time of nearest 5 time. 6.2.2 Cover open After opening ,the relay will be disconnected, record the maximum 50,000 times, not accumulate up, and record the time of nearest 5 time. - Page 9 7.2.2 And then the appropriate position of the meter box or insulating partition to determine a point, screw on the matching self-tapping screws, and the meter hanging, and then the meter below the two anchor points with self-tapping screws. 7.2.3 Connect according to the meter wiring diagram wiring. 7.2.4 If wiring is completed, according to the need to seal the lead side of the meter live live, screw the top cover.
- Page 10 The equipment (device, module) may only be used for the application cases specified in the catalog and the user manual and only in connection with devices and components recommended and approved by YTL. Exclusion of liability We have checked the contents of this publication and every effort has been made to ensure that the descriptions are as accurate as possible.
- Page 11 For any problems of our products please contact: Zhejiang Yongtailong Electronic Co.,Ltd Designed Territory Sole Agent : IVY METERING CO.,LTD Tel:+86 21 62209608 Contact :Ms Angel Email:marketing@ytl-e.com ; info@ivy-metering.com Sales Service Center : Zhejiang Yongtailong Electric Co.,Ltd Tel: 86-573-88105559 Fax:86-573-88100423...
