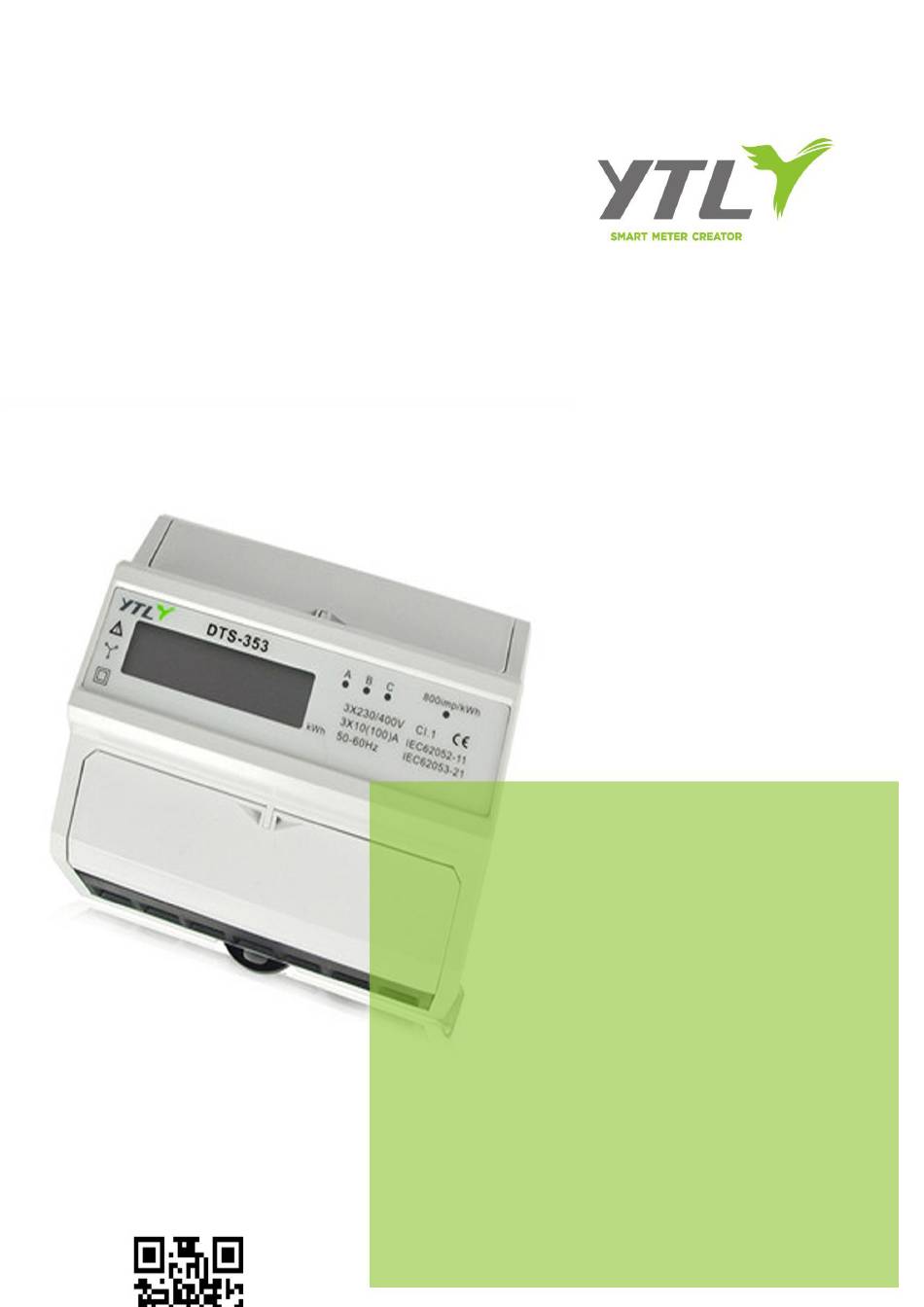

- Page 1 Three-Phase Four-Wire Meter User Manual for D519050 1. Introduction 2. Features and Technical Parameters 3. Description 4. Display 5. Connection Diagram 6. Meter Dimensions 7. PC software 8. Installation Instruction 9. Safety Instructions...
-
Page 2: Features And Technical Parameters
1. Introduction This is din rail three phase muli-funcational energy meter. It is popular in West European as its standard installation with DIN EN 50022, with RS485, which is the ideal solution for residential and commercial installations. 2. Features and Technical Parameters 2.1 Features ●... - Page 3 Impulse indication LCD display A phase current indication B phase current indication C phase current indication Material Case: ABS、PC、Alloy material Hook: ABS material 4. Display...
- Page 4 5. Connection Diagram 6. Meter Dimensions Height 122mm Width 100mm Depth 65mm...
- Page 5 Weight 0.70kg(Net) 7. Software Connect the meter correctly to computers or other applicable communication equipments, and connect to the power supply. The original address is 0. Usage and setting of software please see JPG and Modbus agreement document. During the writing operation, the SET button must be pressed on first. 8.
- Page 6 Fig 2 Fig 3 ig. 4 is after installation Fig 4 aking the connection according to the wiring diagram,see Fig. 5...
- Page 7 图 5 After connection, use lead sealing to seal terminal cover,see Fig. 6 图 6 Recommended wire（For your reference）： Safe carrying capacity of rubber or plastic insulated wire(1) Safe carrying capacity（A） nominal cross section specification（mm） （mm2）...
-
Page 8: Safety Instructions
1*1.13 1*1.37 1*1.76 1*2.24 1*2.73 7*1.33 7*1.76 7*2.12 7*2.50 19*1.83 19*2.14 19*2.50 Note： BX(BLX） copper （aluminum） core rubber insulated wire or BV(BLV） copper （aluminum） core PVC plastic insulated wire，widely used in 500V or less than 500V AC and DC power distribution system. - Page 9 The equipment (device, module) may only be used for the application cases specified in the catalog and the user manual and only in connection with devices and components recommended and approved by YTL. Exclusion of liability We have checked the contents of this publication and every effort has been made to ensure that the descriptions are as accurate as possible.
-
Page 10: Warranty
The manufactory will repair or exchange the products while the lead seal is still exited, within 18 months, when discovering the products not accordance with the technical specification. Technical support For any problems of our products please contact: Zhejiang Yongtailong Electronic co.,ltd No. 320 Tongsheng road, Tongxiang Zhejiang, China Post:314500 Web: www.ytl-e.com Tel: 0573-88105687 Fax: 0573-88100423...
