Elk H0015-10229 Manual

IMPORTANT
Read all instructions before assembling.
WARNING: To avoid damages, assemble the
product on a soft, clean surface.
CAUTION: Keep small parts out of reach of
children.
Before assembly, remove all parts and part
packages from carton. If anything is missing
or damaged, please contact the retailer from
which the product was purchased or contact
customer service, 800-613-3261.

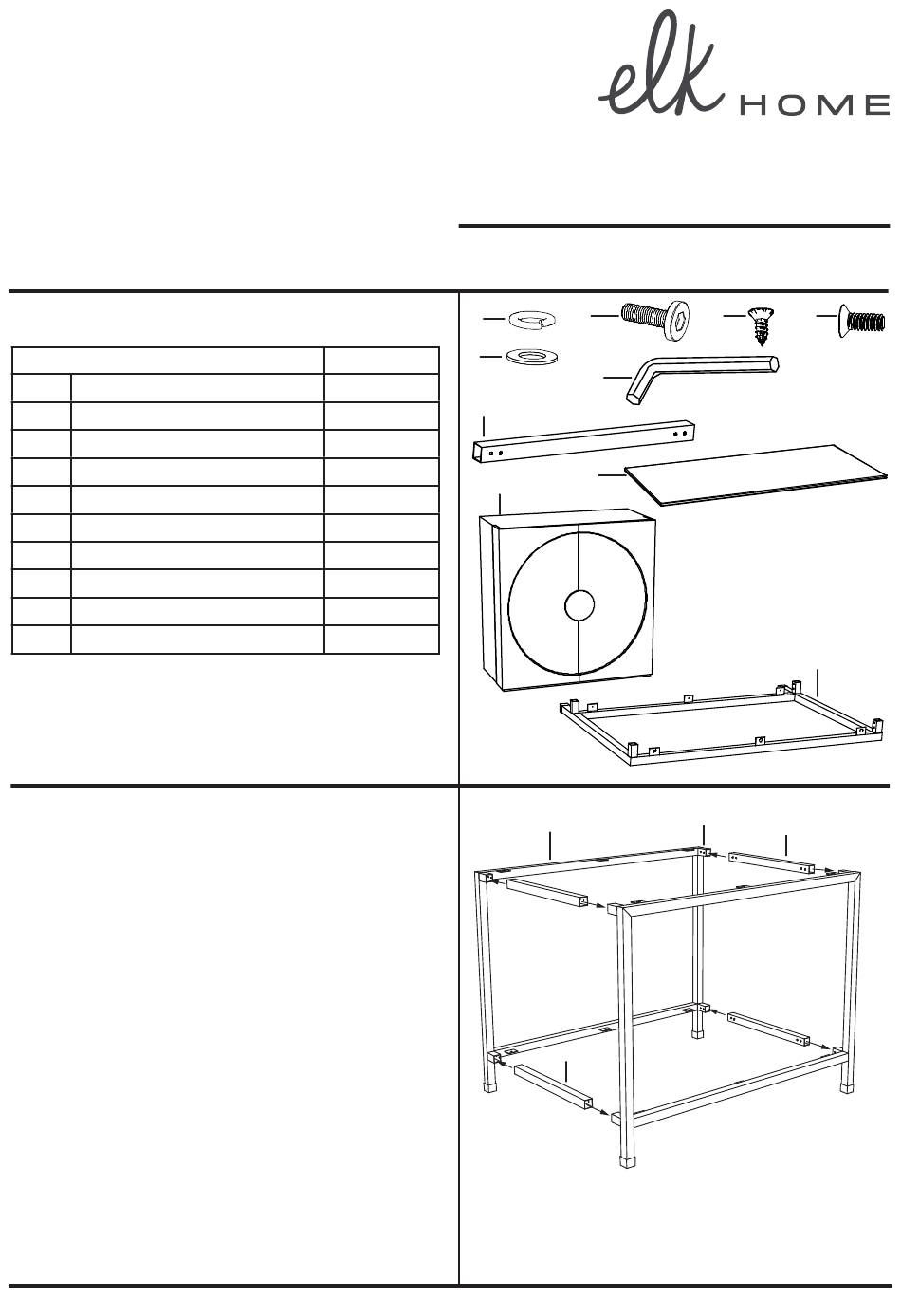

Package Contents
Parts
A LOCK WASHER
B FLAT WASHER
C HEX SCREW
D SCREW
E MACHINE SCREW
F HEX WRENCH
G BAR
H SHELF
K CABINET
L BASE FRAME
NOTES:
Two-person assembly.
Approx. assembly time: 60 minutes

ASSEMBLY

IMPORTANT: It is recommended to place a blanket,
cardboard or other cushioning material on the floor to
prevent damage to floor and furniture piece.
1. Thoroughly clean all wood surfaces with a soft, dry
cloth before assembling.
2. Place one base frame (L) upright on floor on top of
cushioning material.
3. Hold one bar (G) so holes at each end of bar (G) are
facing inward. Insert one end of bar (G) over bottom
stem on one base frame (L). Ensure holes in bar (G)
align with holes in stem on base frame (L).
4. Hold one bar (G) so holes at each end of bar (G)
are facing inward. Insert one end of bar (G) over
top stem on the base frame (L) from step 3. Ensure
holes in bar (G) align with holes in stem on base
frame (L).
5. Repeat steps 3 and 4 to attach remaining bars (G)
to other side of base frame (L).
6. Place second base frame (L) upright on floor on top
of cushioning material. Position base frame (L) so
stems on base frame (L) are facing inward towards
bars (G) on first base frame (L).
7. Insert stems on top and bottom of second base frame
(L) into ends of bars (G) on first base frame (L).
A
B
Quantity
8
G
8
6
6
K
16
1
4
1
1
2
1
ANY QUESTIONS CALL: 800-613-3261
M-F 8:00AM-6:00PM ET
H0015-10229
C
D
F
H
STEM
L
G

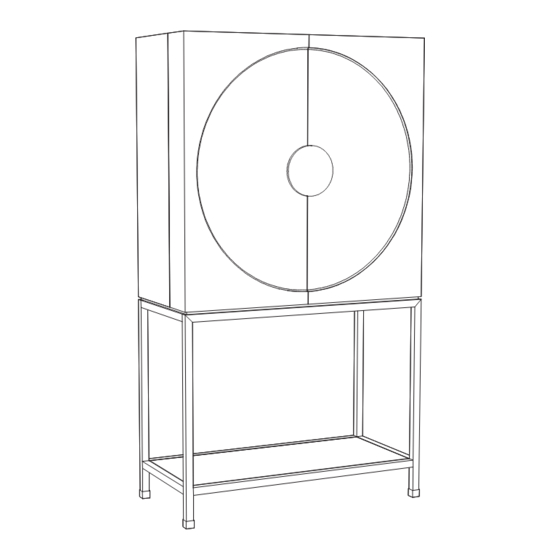

Gabe Bar Cabinet
E
L
G
elkhome.com
