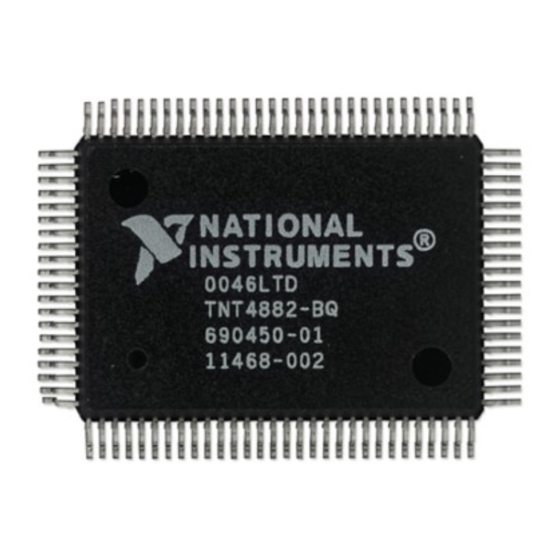

GPIB ASIC Reference Manual
Errata
Contents
NAT7210 Reference Manual
The changes described in this document are important information for users
of the NAT7210 Reference Manual, the NAT9914 Reference Manual, and
the TNT4882 Programmer Reference Manual.
NAT7210 Reference Manual .................................................................. 1
NAT9914 Reference Manual .................................................................. 2
TNT4882 Programmer Reference Manual ............................................. 2
Appendix A ............................................................................................. 7
•
Page 4-3, first paragraph in The Page-In Condition section, replace the
existing text,
(offset 4)
with this new text,
(offset 2)
•
Page 4-15, first paragraph, replace the existing text,
Note: Writes to the AUXCR
with this new text,
Note: Any register access following a write to the AUXCR
Advertisement
Related Manuals for National Instruments NAT7210
Summary of Contents for National Instruments NAT7210
- Page 1 GPIB ASIC Reference Manual Errata The changes described in this document are important information for users of the NAT7210 Reference Manual, the NAT9914 Reference Manual, and the TNT4882 Programmer Reference Manual. Contents NAT7210 Reference Manual ..............1 NAT9914 Reference Manual ..............2 TNT4882 Programmer Reference Manual ..........
- Page 2 • Page 4-46, replace both instances of the existing text, ch_rst + read ISR0 with this new text, ch_rst + (read ISR2) NAT9914 Reference Manual • Page 3-3, first paragraph in The Page-In Condition section, replace the existing text, (offset 4) with this new text, (offset 2) •...
- Page 3 Page 4-13, in the IEEE 488.2 Service Requesting section, replace the existing text in that section with the following. If STBO IE = 1, to request service, issue the reqt auxiliary command. When the STBO interrupt condition becomes true, © National Instruments Corporation GPIB ASIC Reference Manual Errata...
- Page 4 write the status byte (STB) to the SPMR with the appropriate value for RQS. If STBO IE = 0, to request service, issue the reqt auxiliary command. Then, write the status byte (STB) to the SPMR. When you write to the SPMR, write 0 to bit 6 (the rsv bit). The TNT4882 asserts and unasserts the rsv signal according to the set rsv state machine that is described in the IEEE 488.2 standard.
- Page 5 1E hex with this new text, 0x1F • Page D-9, following the System Configuration section, insert the contents of Appendix A of this document, to create a new section entitled Operation. © National Instruments Corporation GPIB ASIC Reference Manual Errata...
- Page 6 • Page F-2, the last line of the Multiline Interface Command Messages section, add to the existing text, 1F 037 31 US by inserting this new text, CFE in the Msg column • Page F-2, under Message Definitions, add these two new messages to the existing text, Configure Enable Configure...
-
Page 7: Operation
Otherwise, if (0x61 ≤ command ≤ 0x6F) Subtract 0x60 from command to calculate cable length Enable HS488 with Cable Length as described in the following section, Enabling HS488 Write AUXMR[VALID] to release DAC hold off © National Instruments Corporation GPIB ASIC Reference Manual Errata... - Page 8 Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
