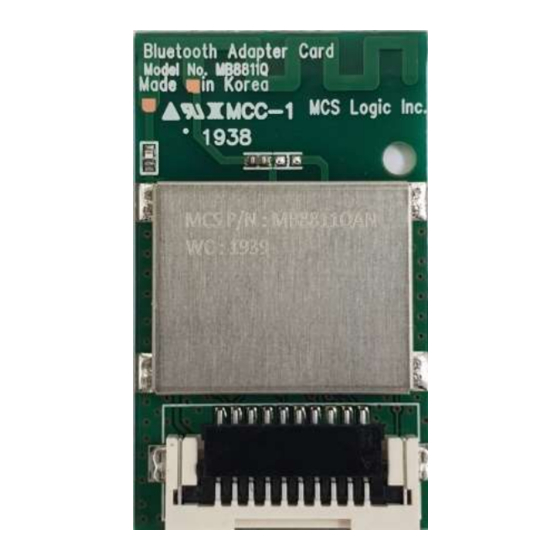

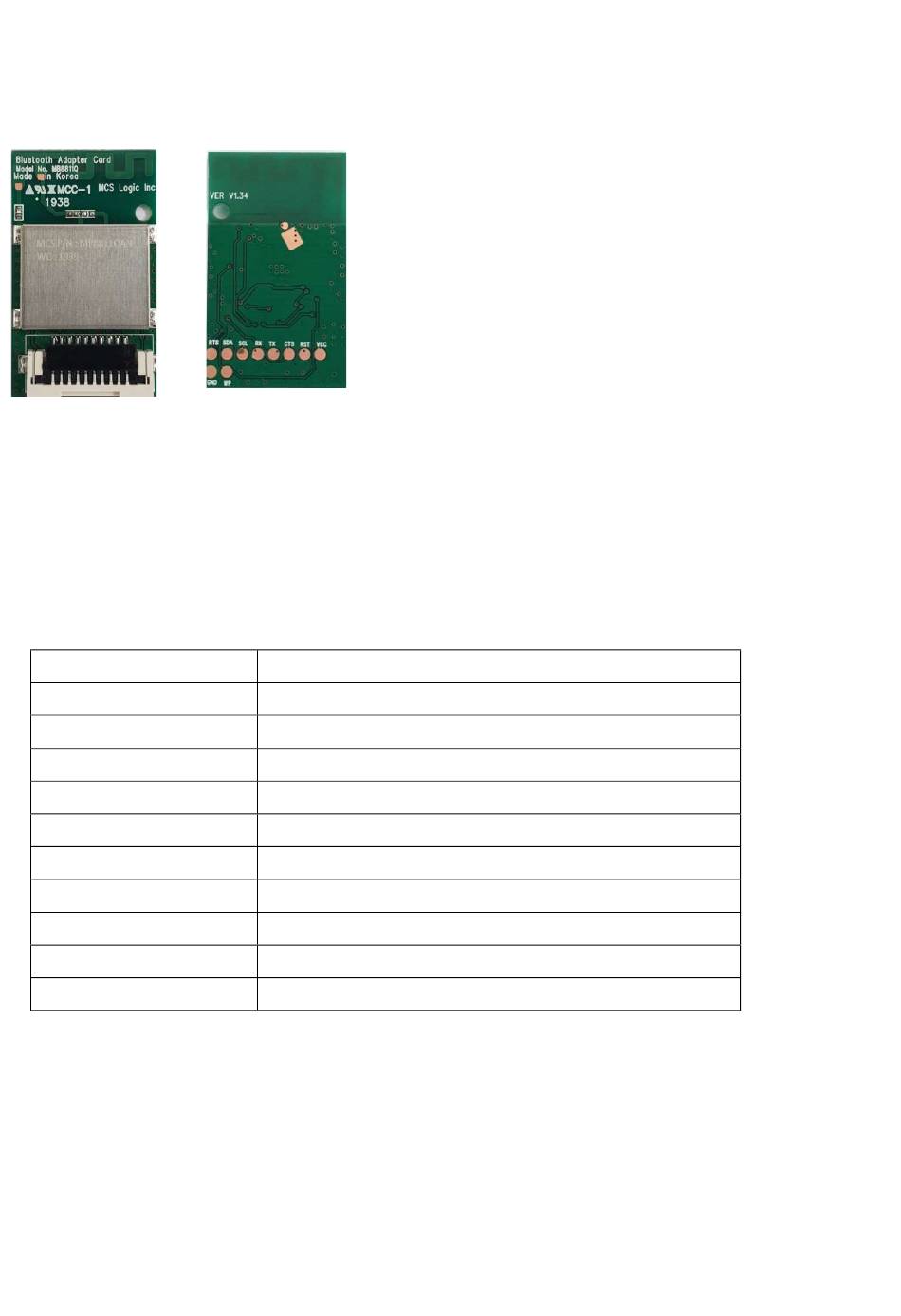

Bluetooth Module : MB8811QAN
[top]
This MB8811QAN Module is compatible with Bluetooth specification version 4.2. MB8811QAN is a fully integrated
RF, baseband controller etc.
SPECIFICATION
Main Chips
Standards
Frequency Band
Tx Power
Rx Sensitivity
Distance
Power Voltage
Dimension
Environmental Range
Modulation mode
Communication method
[bottom]
CSR8811A12
Bluetooth 4.2
2402 ~ 2480 MHz
0.25 ~ 10mW (Bluetooth Power Class 1)
< -70dBm (BER 0.1%)
< 10m (open space)
3.3V
18.6ⅹ31.2 ⅹ3.4 mm
Operation temperature : -25 ~ +70℃
GFSK, 8DPSK
FHSS
Advertisement
Table of Contents
Related Manuals for Samsung MB8811QAN
Summary of Contents for Samsung MB8811QAN
- Page 1 Bluetooth Module : MB8811QAN [top] [bottom] This MB8811QAN Module is compatible with Bluetooth specification version 4.2. MB8811QAN is a fully integrated RF, baseband controller etc. SPECIFICATION Main Chips CSR8811A12 Standards Bluetooth 4.2 Frequency Band 2402 ~ 2480 MHz Tx Power 0.25 ~ 10mW (Bluetooth Power Class 1)
- Page 2 Pin define(TOP PIN MAP) Pin Name Description Positive Input for the internal regulator (3.0 ~ 3.6V) Reset if low. Input debounced so must be low for >5ms to RESET cause a reset Bluetooth UART Request to Send. Active-low request. Bluetooth UART Clear to Send.Active-low clear. Bluetooth UART Serial Output.
-
Page 3: Top View
Dimension TOP View Mark Dimension Mark Dimension Mark Dimension 31.60±0.3 2.60±0.2 1.0±0.2 18.60±0.3 2.0±0.2 8.0±0.2 1.8±0.2 (Unit : mm) -
Page 4: Electrical Characteristics
Electrical Characteristics Conditions : VDD = 3.3V, Ta = 25 ℃, unless otherwise noted. Absolute Maximum Ratings Parameter Unit Power Supply Voltage : VDD -0.4V 3.6V Storage Temperature ℃ Recommended Operating Conditions Parameter Unit Power Supply Voltage 3.0V 3.6V Operation Temperature ℃... - Page 5 General Performance Parameter Condition Unit Frequency Range Normal 2402 2480 Transmitter Performance Parameter Condition Unit Transmit Power Normal Power density Normal 20dB bandwidth Normal 1000 ±2MHz Adjacent channel power ±3MHz = 2441MHz) ±4MHz 30MHz ~ 1GHz 1GHz ~ 12.75GHz Out-band Spurious Emission 1.8GHz ~ 1.9GHz 5.1GHz ~ 5.3GHz ∆F1...
-
Page 6: Important Note
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 8 * reference document : BlueTest Instruction Manual.pdf Conformity Assessment Display Company name: Samsung Electronics Model : Specific micro-power wireless devices (wireless data communication system devices) (MB8811QAN) Manufacture Year : 2019. . Manufacturer / Manufacture Country : Samsung Electronics / Korea...
