Summary of Contents for Campbell 105T

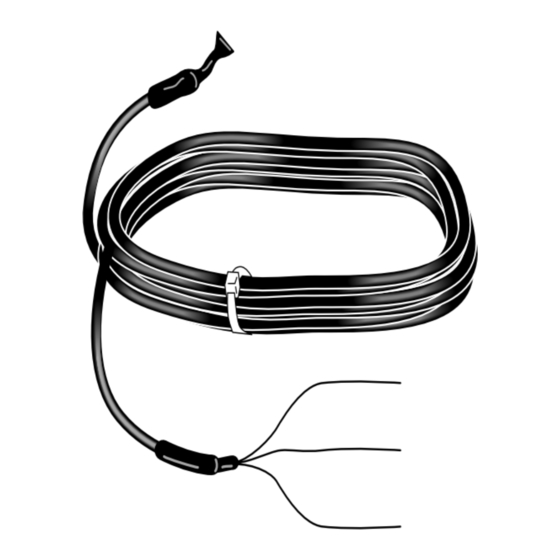

- Page 1 MODEL 105T THERMOCOUPLE PROBE INSTRUCTION MANUAL PRELIMINARY: 31/01/99 COPYRIGHT (c) 1999 CAMPBELL SCIENTIFIC, INC.
- Page 3 WARRANTY AND ASSISTANCE The MODEL 105T THERMOCOUPLE PROBE is warranted by CAMPBELL SCIENTIFIC (CANADA) CORP. (“CSC”) to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise.
- Page 5 The -L option on the Model 105T Thermocouple Probe (105T-L) 3. INSTALLATION indicates that the cable length is user specified. The 105T is designed for burial in soils or submersion in water up to 50 feet. 2. SPECIFICATIONS Probe 4.
- Page 6 Programming instructions P13 or P14 are used 105T. Example 2 demonstrates programming to measure the voltage of the 105T and convert for the CR23X using P17 and P14. Refer to the it to temperature using the equation for a type datalogger manual under Programming T thermocouple.
- Page 7 Mult Offset ;Knowing the wiring panel temperature, we now measure the 105T voltage and use the type T ;equation to calculate the 105T temperature. A multiplier of 1 and offset of 0 yield the ;temperature in °C in input location 2 (TC_Temp).
- Page 8 MODEL 105T THERMOCOUPLE PROBE ;Knowing the wiring panel temperature, we now measure the 105T voltage and use the type T ;equation to calculate the 105T temperature. A multiplier of 1 and offset of 0 yield the ;temperature in °C in input location 2 (TC_Temp).
