RouterBOARD 2011U/L/iL series
Quick Setup Guide and Warranty Information
The RB2011U/L is a small form factor ethernet router with 5 Gigabit Ethernet ports and 5 Fast Ethernet ports and an SFP cage.
The RB2011U series includes four models, RB2011UAS‐IN (USB, SFP, indoor case), RB2011UiAS‐RM (USB, SFP, rackmount case),
RB2011UAS‐2HnD (adds wireless AP function) and RB2011UAS‐2HnD‐IN (adds indoor case)
The RB2011L/iL series includes five models, RB2011L, RB2011L‐IN (Desktop case), RB2011iLS‐IN (Desktop case, SFP port) and RB2011iL‐RM
(rackmount case) and RB2011LS (with SFP port).

First use

The device comes preinstalled with RouterOS and is ready to use. RB2011 is compatible with RouterOS v5.9 and newer, if
your device comes preinstalled with an earlier version, please upgrade before using it.
The Ethernet ports 2---10 have a default IP address for connecting: 192.168.88.1 username is admin and there is no password.
Please connect with your web browser to this IP address and choose Webfig to configure it. Ether1 is configured as a DHCP
client, for connecting to your ISP.
See this page for connection and configuration guides:

Powering

The device accepts powering from either the power jack, or from the LAN1 Ethernet port:
Direct- - - i nput power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) accepts
•
8-- - 30V DC (overvoltage protection starts at 30V).
Eth1 port accepts 8---30V DC input (at the board; higher voltage needed to compensate for power loss on long cables)
•
from non---standard (passive) Power over Ethernet injectors. The board does not work with IEEE802.3af compliant 48V
power injectors
The IN and RM models include a 110/220V PSU which is already plugged into the power jack inside the case
•

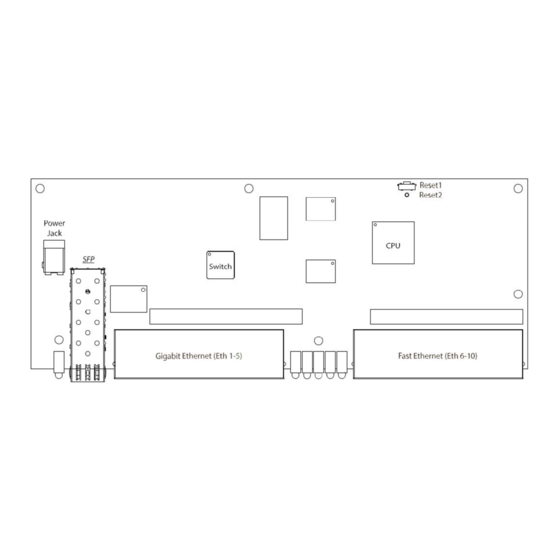

Extension Slots and Ports

Five 10/100/1000 (Gigabit) Ethernet ports (Auto MDI/X)
•
Five 10/100 (Fast) Ethernet ports (Auto MDI/X)
•
One 8-- - 30V DC power jack
•
SFP port for SFP module (module not included, works only with Gigabit modules)
•
(only on RB2011UAS- - - 2 HnD-- - IN) built in wireless AP (2GHz , 802.11b/g/n), with external antennas.
•
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions.
http://wiki.mikrotik.com/wiki/Category:Manual
3-May-201
