RouterBOARD 2 011U s eries
Quick S etup G uide a nd W arranty I nformation

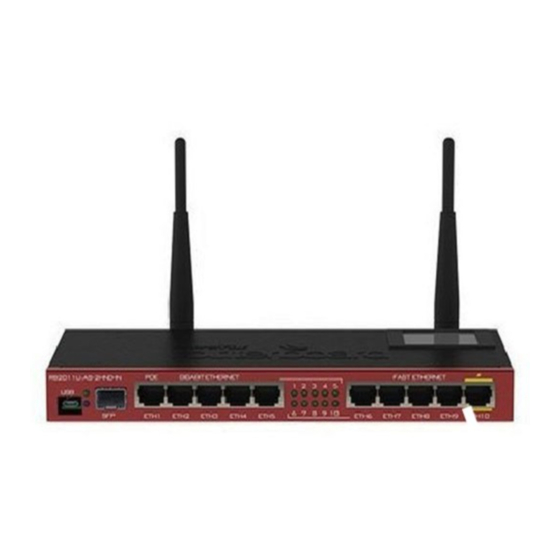

The R B2011 i s a s mall f orm f actor e thernet r outer w ith 5 G igabit E thernet p orts a nd 5 F ast E thernet p orts. T he R B2011U
series i ncludes f our m odels R B2011UAS-­‐IN ( USB, S FP, i ndoor c ase), R B2011UAS-­‐RM ( USB, S FP, r ackmount), R B2011UAS-­‐
2HnD ( adds w ireless f unctionality) a nd R B2011UAS-­‐2HnD-­‐IN ( adds i ndoor c ase a nd a nd i ndoor a ntennas).
First u se
The d evice c omes p reinstalled w ith R outerOS a nd i s r eady t o u se. R B2011 i s c ompatible w ith R outerOS v 5.9 a nd n ewer, i f
your d evice c omes p reinstalled w ith a n e arlier v ersion, p lease u pgrade b efore u sing i t.
The E thernet p orts 2 -­‐10 h ave a d efault I P a ddress f or c onnecting: 1 92.168.88.1 u sername i s a dmin a nd t here i s n o p assword.
Please c onnect w ith y our w eb b rowser t o t his I P a ddress a nd c hoose W ebfig t o c onfigure i t. E ther1 i s c onfigured a s a D HCP
client, f or c onnecting t o y our I SP.
See t his p age f or c onnection a nd c onfiguration g uides:
Powering
The d evice a ccepts p owering f rom e ither t he p ower j ack, o r f rom t he L AN1 E thernet p ort:
Direct-­‐input p ower j ack ( 5.5mm o utside a nd 2 mm i nside d iameter, f emale, p in p ositive p lug) a ccepts
•
8 -­‐30V D C ( overvoltage p rotection s tarts a t 3 0V).
Eth1 p ort a ccepts 8 -­‐30V D C i nput ( at t he b oard; h igher v oltage n eeded t o c ompensate f or p ower l oss o n l ong c ables)
•
from n on-­‐standard ( passive) P ower o ver E thernet i njectors. T he b oard d oes n ot w ork w ith I EEE802.3af c ompliant
48V p ower i njectors
The I N a nd R M m odels i nclude a 1 10/220V P SU w hich i s a lready p lugged i nto t he p ower j ack i nside t he c ase
•
Extension S lots a nd P orts
Five 1 0/100/1000 ( Gigabit) E thernet p orts ( Auto M DI/X)
•
Five 1 0/100 ( Fast) E thernet p orts ( Auto M DI/X)
•
One 8 -­‐30V D C p ower j ack
•
SFP p ort f or S FP m odule ( module n ot i ncluded)
•
(on R B2011US-­‐2HnD-­‐IN) b uilt i n 2 GHz w ireless d evice w ith e xternal a ntennas, 8 02.11 b /g/n m odes s upported.
•
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions.
h ttp://wiki.mikrotik.com/wiki/Category:Manual
23-May-2012
